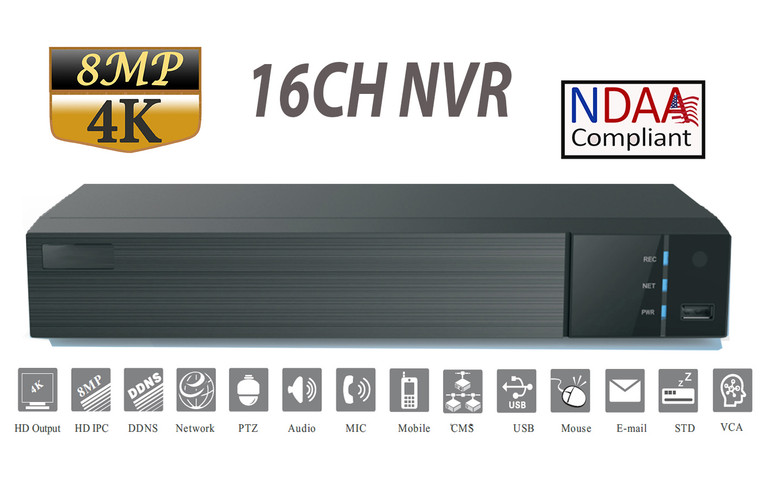

SuperLive 16CH 8MP NVR PoE

SuperLive 16CH 8MP NVR PoE, SuperLive Plus APP, NDAA Compliant

SuperLive
SKU:
SPL-N216/16P-0
$339.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description



SuperLive 16CH 8MP NVR PoE, SuperLive Plus APP for Mobile Devices, NDAA Compliant

The SuperLive 16CH NVR PoE is a high‑performance network video recorder designed for professional IP surveillance deployments. With 16 PoE ports, support for 8MP (4K) IP cameras, advanced H.265/H.264 compression, and seamless mobile access via the SuperLive Plus app, this NVR delivers reliable, scalable security for commercial and enterprise environments.



Features:

  • Support 16 Channel IP Input
  • Support 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 760p, 720p Resolution cameras
  • 16x RJ45 100Mbps PoE Ports
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
  • 96 Mbps Incoming/ 96 Mbps Outgoing Bandwidth
  • Support 2x SATA up to 10TB
  • Playback: 16CH simultaneous playback
  • Support P2P
  • Multi-user online simultaneously
  • 4K ultra high-definition output
  • Compatible with SuperLive Plus App available for iOS and Android
  • NDAA Compliant

Perfect for:

  • NDAA‑restricted sites
  • Corporate offices
  • Retail stores and shopping centers
  • Schools, universities, and campuses
  • Warehouses and logistics centers
  • Commercial buildings with full PoE camera systems





Specifications:

System OS Embedded Linux
Video IP Network Input 16CH IPC Input
Network Input Resolution 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/
960H/D1/CIF
Output HDMI × 1 :4K (3840 × 2160) / 1920 × 1080 / 1280 × 1024/ 1024 × 768
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
Compression H.265S /H.265+ / H.265 / H.264
Multi-screen Display 1/4/6/8/9/13/16
Audio Network Input   16 CH IPC audio input
2-way Audio RCA × 1
Local Output RCA × 1
Compression G.711(U/A)
Record Resolution 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/
960H/D1/CIF
Frame Rate NTSC:30fps; PAL:25fps
Playback Simultaneous Playback Max. 16 CH
Search Time slice / time / event / tag / smart search
Smart Search Highlighted color to display the camera record in a certain
period of time, different colors refers to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Decoding Capability Live View/ Playback 1×8MP@30fps; 4×1080P@30fps
Alarm Mode Manual, sensor, motion, exception, smart events
Input Supports IPC alarm input
Output Supports IPC alarm output
Triggering Record, snap, preset, e-mail, etc.
Other Functions Plate Recognition Yes
Fisheye No
Video Structure Analysis Human/Vehicle Classification Yes
Network Interface RJ 45 × 1 (10/100/1000Mbps)
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP,
HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc.
Incoming/ Outgoing Bandwidth 96 Mbps /96 Mbps
Client Connection Max. 10 users access
Mobile Device OS iOS, Andriod
Storage HDD Storage 2x SATA, Up to 10TB
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
Port USB USB 2.0 × 2
  Remote Controller N/A
PoE PoE Ports 100M RJ45 × 16
  Standards IEEE802.3AF/AT
  Output Power ≤ 150W
Others Power Supply DC 48V/3.75A
Consumption ≤ 10W ( without HDD )
Dimensions mm 380 × 268 × 45( W × D × H )
Working Environment -10～50 °C, 10% ～ 90% humidity
Certificate CE, FCC
Enviromental Protection Complies with Directive EU RoHS, REACH and WEEE
