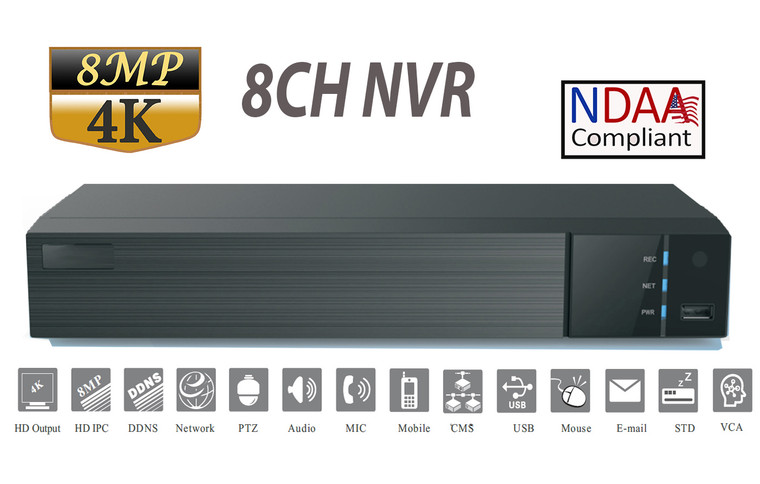

SuperLive 8CH 8MP 4K NVR PoE, SuperLive Plus APP, NDAA Compliant

SuperLive 8CH 8MP 4K NVR PoE, SuperLive Plus APP, NDAA Compliant

SuperLive
SKU:
SPL-N18/8P-0
$239.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

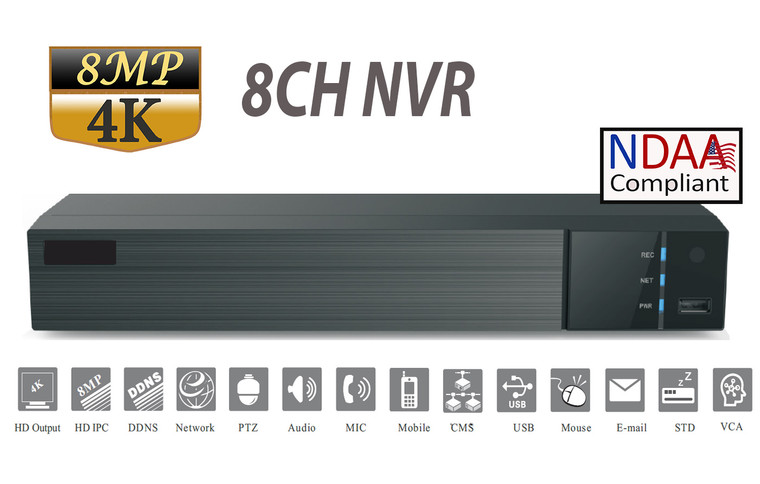

SuperLive 8CH 8MP/4K NVR with Built-in PoE Ports, 1x SATA HDD Port, 4K Video Output, H.265+, SuperLive Plus APP for iOS/Android, NDAA Compliant

The SuperLive 8‑Channel 8MP/4K NVR is a powerful, NDAA‑compliant network video recorder engineered for professional and commercial surveillance systems. Built with an integrated 8‑port PoE switch, high‑efficiency H.265+ compression, and 4K UHD output, this NVR provides a reliable and scalable solution for small to medium‑size security installations.

Recommended For

  • Small to Medium Businesses
  • Retail Stores, Restaurants & Offices
  • Warehouses & Industrial Sites
  • Schools & Religious Facilities
  • NDAA‑regulated installations





Features:

  • Support 8 Channel IP Input
  • Support 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 760p, 720p Resolution cameras
  • 8x RJ45 100Mbps PoE Ports
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
  • 80Mbps Incoming/80Mbps Outgoing Bandwidth
  • Support 1x SATA up to 10TB
  • Playback: 8CH simultaneous playback
  • Support P2P
  • Multi-user online simultaneously
  • 4K ultra high-definition output
  • Support face detection and human/vehicle classification (from IP Cameras)
  • Built-in 2ch@2MP Face Detection or Human/Vehicle Classification
  • Compatible with SuperLive Plus for iOS and Android Devices
  • NDAA Compliant



Specifications:



System OS Embedded Linux
Video IP Network Input 8CH IPC Input
Network Input Resolution 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/
960H/D1/CIF
Output HDMI × 1 :4K ( 3840 × 2160) / 1920 × 1080 / 1280 × 1024/ 1024 × 768
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
Compression H.265S /H.265+ / H.265 / H.264
Multi-screen Display 1/4/6/8/9
Audio Network Input   8 CH IPC audio input
Local Input RCA × 1 (for two-way audio)
Local Output RCA × 1
Compression G.711(U/A)
Record Resolution 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/
960H/D1/CIF
Frame Rate NTSC:30fps; PAL:25fps
Playback Simultaneous Playback Max. 8 CH
Search Time slice / time / event / tag / smart search
Smart Search Highlighted color to display the camera record in a certain
period of time, different colors refers to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Decoding Capability Live View/ Playback 1×8MP@30fps; 6×1080P@30fps
Alarm Mode Manual, sensor, motion, exception, smart events
Input Supports IPC alarm input
Output Supports IPC alarm output
Triggering Record, snap, preset, e-mail, etc.
Network Interface RJ 45 × 1 (10/100/1000Mbps)
Protocol TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP,
HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP,
IGMP, ONVIF
Incoming/ Outgoing Bandwidth 80/80 (Mbps)
*When the AI function of the IPC is enabled, the actual incoming
bandwidth(max.bitrate) is more than the set value in the NVR.
Client Connection Max. 64 users access
Face Face Detection Performance (AI by IPC) 8CH
Face Detection Performance (AI by Device) 2CH (2MP)
Face Match Performance No
Statistical Graph of Information Bar graph
Statistical Mode of Information Statistics by day, week, month, quarter as well as customized time period
Perimeter Protection Human/ Vehicle Classification (AI by IPC) 8CH
Human/ Vehicle Classification (AI by Device) 2CH (2MP)
Video Metadata Human/ Vehicle Attribute Analysis (AI by IPC) Yes
Other Functions Fisheye Supports fisheye dewarping via Web Client and mobile APP
Plate Recognition (AI by IPC) Yes
Mobile Device OS iOS, Andriod
Storage HDD Storage 1x SATA, Up to 10TB
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
Port USB USB 2.0 × 2
Remote Controller N/A
PoE PoE Ports 100M RJ45 × 8
Standards IEEE802.3AF/AT
Output Power ≤ 72W
Others Power Supply DC 48V/1.8A
Consumption ≤ 10W ( without HDD )
Dimensions mm 300 × 249 × 45( W × D × H )
Working Environment -10～50 °C, 10% ～ 90% humidity
Certificate CE, FCC
Enviromental Protection Complies with Directive EU RoHS, REACH and WEEE
