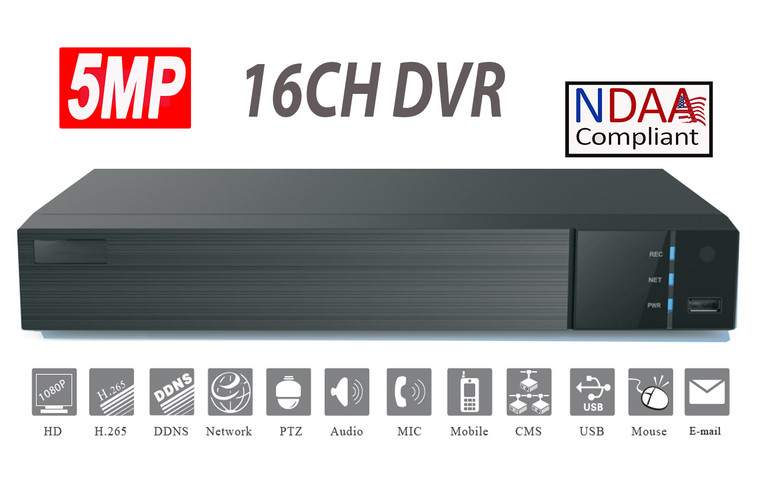

SuperLive 16CH 5MP HD Analog +8CH IP Hybrid DVR, Smart Sense, SuperLive Plus APP, NDAA Compliant

SuperLive 16CH 5MP HD Analog +8CH IP Hybrid DVR, Smart Sense, SuperLive Plus APP, NDAA Compliant

SuperLive
SKU:
SPL-H5MP16-0
$319.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

SuperLive 16CH 5MP HD Analog +8CH IP Hybrid DVR, Smart Sense (Human/Vehicle Smart Motion Detection), Audio Over Coax, 2xSATA, SuperLive Plus APP for iOS and Android Mobile Devices, NDAA Compliant

The SuperLive 16CH 5MP HD Analog + 8CH IP Hybrid DVR is a professional‑grade video recorder designed for commercial, industrial, and high‑security applications. Supporting up to 24 total channels (16 HD Analog + 8 IP), this hybrid system delivers exceptional flexibility for upgrading legacy coaxial systems while integrating modern IP cameras.

Equipped with Smart Sense (Human/Vehicle Smart Motion Detection), this DVR significantly reduces false alerts and provides accurate, event‑driven notifications for improved security monitoring. With Audio Over Coax support for HD‑TVI cameras and a powerful SuperLive Plus mobile app, users gain reliable, real‑time remote access from iOS and Android devices.



It is ideal for:

  • Commercial buildings & offices
  • NDAA compliant Projects
  • Warehouses & distribution centers
  • Retail stores & shopping plazas
  • Schools, campuses, and public institutions
  • Hotels, hospitality, and large properties
  • Industrial sites and manufacturing plants
  • Multi‑building complexes with mixed coax/IP infrastructure





Features:

  • Support 16 channels HD analog (TVI/CVI/AHD/CVBS) + 8 channels IP, 24 channels in total
  • Camera resolution supported:
    • HD Analog TVI/AHD/CVI: 5MP, 4MP, 1080p, 720p
    • CVBS Standard Analog: WD1
    • IP: 5MP, 4MP, 3MP, 1080P, 960P, 720P
  • Support 8x Audio Input, 1x Audio Output (RCA Connector)
  • Support Audio-over-Coax cable (HD-TVI video signal only)
  • Playback: 16CH simultaneously playback
  • Supports 16CH with motion detection by humans or vehicules.
  • Support 1CH with line crossing or intrusion by humans or vehicles.
  • H.265/H.264 Video compression
  • Multi-mode recording: Manual, motion, smart event
  • 2x SATA Interface, up to 10TB per HDD; E-SATAx1
  • Powerful mobile surveillance by smart phones with iOS and Android devices (SuperLive Plus APP)



NOTE: This DVR does not have built‑in PoE ports. A PoE network switch is required to connect IP cameras.





Specifications:



System OS Embedded Linux
Video Analog Video Input BNC × 16: BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI : 5MP@20fps; 4MP/1080P/720P/WD1@30fps (live)
IP Video Input 8CH (up to 16CH), Up to 5MP@30fps
Total Input 24CH
Output HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1 : CVBS ( used as the main or spot output )
Compression H.264/H.265/H.265+
Multi-screen Display 1/4/6/8/9/13/16/25
Audio Input RCA × 8
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Record Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1
Frame Rate Analog Channel: 5MP Lite@10fps (PAL / NTSC); 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC)
1080PLite/720P/WD1/D1@25fps(PAL)/ 30fps(NTSC)
IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 5Mbps
Mode Manual, timer, motion, smart event
Playback Playback 16CH
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Alarm Mode Manual, motion, exception, smart event
Input 16CH
Output 4CH
AI Function Smart Motion Detection Performance 16CH
Perimeter Protection Performance 1CH
Network Interface RJ 45 1000Mbps × 1
Protocol TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 32Mbps(max.64Mbps)
Outgoing Bandwidth 96Mbps
Client Connection Max. 10 users access
Mobile Device OS  iOS, Andriod
Storage HDD SATA×2, up to 10TB; E-SATA×1
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
Port RS485 Yes (half-duplex), connect to PTZ or keyboard
USB USB 2.0 ×1; USB3.0×1
Remote Controller N/A
Others Power Supply DC12V/4A
Consumption  15W ( without HDD )
Dimensions (mm) 380 × 268 × 45 ( W × D × H )
Working Enviroment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Directive EU RoHS, WEEE, REACH
