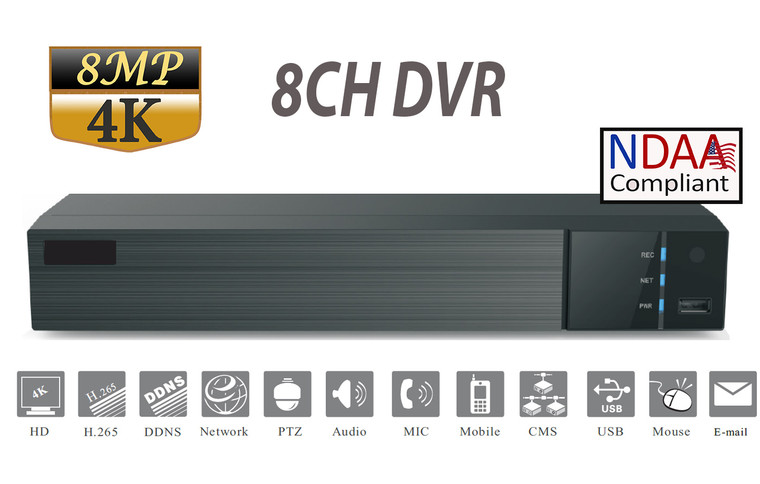

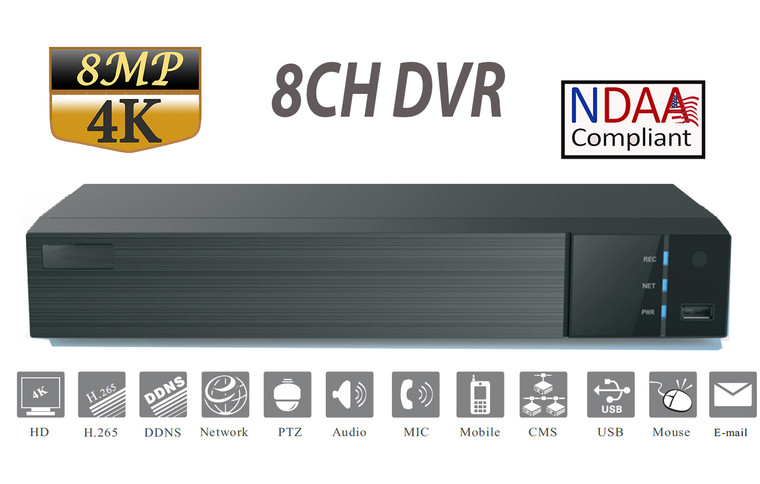

SuperLive 8CH HD Analog 8MP 4K +8CH IP Hybrid DVR, SuperLive Plus APP, NDAA Compliant

SuperLive 8CH HD Analog 8MP 4K +8CH IP Hybrid DVR, SuperLive Plus APP, NDAA Compliant

SuperLive
SKU:
SPL-H8MP08-0
$299.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

SuperLive 8CH HD Analog 8MP/4K + 8CH IP Hybrid DVR, Audio-Over-Coax, 2xSATA, SuperLive Plus APP for iOS/Android, NDAA Compliant

The SuperLive 8CH HD Analog + 8CH IP Hybrid DVR is a versatile, high‑performance video recorder designed for professional and commercial surveillance systems. Supporting 8x HD Analog channels plus 8x IP channels (16 total), it delivers crystal‑clear 8MP/4K recording, advanced video compression, multi‑mode recording options, and seamless mobile monitoring through the SuperLive Plus App.

Built with NDAA‑compliant components, it is ideal for schools, businesses, retail environments, offices, and government projects.

Recommended for Professional and Commercial Installations.

Ideal for:

  • Professional and commercial security systems
  • Retail and supermarkets
  • Office buildings
  • Schools, warehouses, and campuses
  • Hybrid upgrade projects mixing analog and IP cameras





Features:

  • Support 8 channels HD analog (TVI/CVI/AHD/CVBS) + 8 channels IP, 16 channels in total
  • Camera resolution supported:
    • HD Analog TVI/AHD/CVI: 8MP (4K), 5MP, 4MP, 1080p, 720p
    • CVBS Standard Analog: WD1
    • IP: 8MP
  • Support 8x Audio Input, 1x Audio Output (RCA Connector)
  • Support Audio-over-Coax cable (HD-TVI format camera only)
  • Playback: 8CH simultaneously playback
  • H.265/H.264 Video compression
  • 2x SATA up to 10TB; 1x E-SATA
  • Multi-mode recording: Manual, motion, smart event
  • Powerful mobile surveillance by smart phones with iOS and Android devices (SuperLive Plus APP)
  • NDAA Compliant

Important Note

This DVR does not include built‑in PoE ports. A PoE network switch (sold separately) is required to connect IP cameras.





What’s Included

  • SuperLive 8CH Hybrid DVR
  • Power adapter
  • USB mouse
  • Quick installation guide





Specifications:

System OS Embedded Linux
Video Analog Video Input BNC × 8
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live)
IP Video Input 8CH: Up to 8MP@20fps; lower than 8MP@30fps
Total Input 16CH
Output HDMI × 1 :4K (3840 × 2160) / 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1 : CVBS ( used as the main or spot output )
Compression H.264/H.265
Multi-screen Display 1/4/6/8/9/13/16
Audio Input RCA × 8
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Record Resolution 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1
Frame Rate Analog Channel:
4K@6fps/7fps (PAL/NTSC)
4K Lite@12fps/15fps (PAL/NTSC)
5MP@12fps (PAL / NTSC)
5MP Lite@20fps (PAL / NTSC)
4MP/3MP@12fps/ 15fps (PAL / NTSC)
4MPLite/1080P/720P/WD1/D1@25fps/ 30fps (PAL / NTSC)
IP Channel: 8MP@ 20fps(PAL / NTSC); lower than 8MP@25fps / 30fps (PAL / NTSC)
Bit Rate 32Kbps ~ 5Mbps
Mode Manual, timed, motion, smart event
Playback Playback 8CH
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record
events
Function Play, pause, FF, FB, digital zoom, etc
Alarm Mode Manual, motion, exception, smart event
Input 8CH
Output 2CH
Network Interface RJ 45 1000Mbps × 1
Protocol TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Bandwidth 32 Mbps Incoming/ 96 Mbps Outgoing
Client Connection Max. 10 users access
Mobile Device OS iOS, Andriod
Storage HDD SATA× 2, up to 10TB per HDD; E-SATA× 1
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
Port RS485 Yes (half-duplex), connect to PTZ or keyboard
USB USB 3.0 × 1; USB2.0 × 1
Remote controller N/A
Others Power Supply DC12V / 4A
Consumption ≤ 15W ( without HDD )
Dimensions mm 380 × 268 × 45 ( W × D × H )
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Comply with Directive EU RoHS, WEEE, REACH
