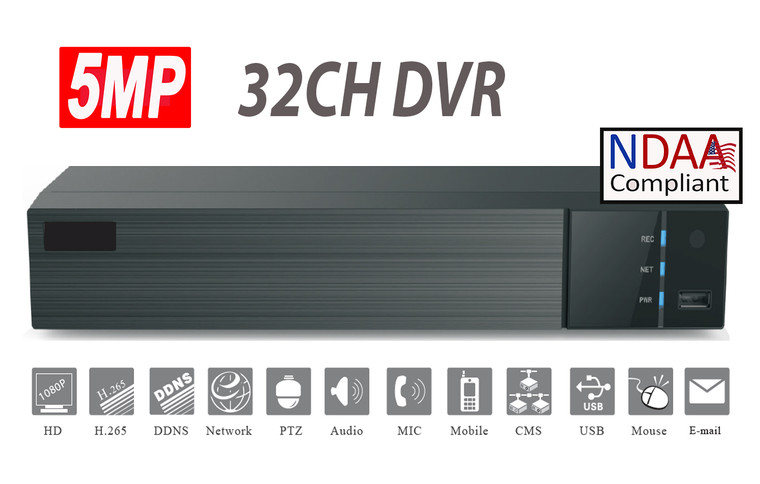

SuperLive 32CH 5MP HD Analog +8CH IP Hybrid DVR, SuperLive Plus APP, NDAA Compliant

SuperLive 32CH 5MP HD Analog +8CH IP Hybrid DVR, SuperLive Plus APP, NDAA Compliant

SuperLive
SKU:
SPL-H5MP32-0
$529.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

SuperLive 32CH 5MP HD Analog +8CH IP Hybrid DVR, Audio Over Coax, 4xSATA, SuperLive Plus APP for iOS/Android, NDAA Compliant

The SuperLive 32‑Channel 5MP Hybrid DVR is a powerful multi‑format recorder designed for large commercial and professional security installations. Supporting 32 HD analog channels + 8 IP channels (up to 40 total), this DVR combines the flexibility of hybrid recording with the reliability required for 24/7 surveillance environments.

Recommended For

  • Larger commercial buildings
  • Retail chains and shopping centers
  • Schools, campuses, and government facilities
  • Warehouses and industrial properties
  • Mixed analog/IP upgrade projects



Installation Note

This DVR does NOT include built‑in PoE ports.
To connect IP cameras, an external network PoE switch (sold separately) is required.

Features:

  • Support 32 channels HD analog (TVI/CVI/AHD/CVBS) + 8 channels IP, 40 channels in total
  • Camera resolution supported:
    • HD Analog TVI/AHD/CVI: 5MP, 4MP, 1080p, 720p
    • CVBS Standard Analog: WD1
    • IP: 5MP, 4MP, 3MP, 1080P, 960P, 720P
  • Support 16x Audio Input, 1x Audio Output (RCA Connector)
  • Support Audio-over-Coax cable (HD-TVI video only)
  • Playback: 16CH simultaneously playback
  • H.265/H.264 Video compression
  • Multi-mode recording: Manual, motion, smart event
  • 4x SATA Interface, up to 10TB per HDD; E-SATAx1
  • Powerful mobile surveillance by smart phones with iOS and Android devices (SuperLive Plus APP)

Specifications:

System OS Embedded Linux
Video Analog Video Input BNC × 32: BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI : 5MP@20fps; 4MP/1080P/720P/WD1@30fps (live)
IP Video Input 8CH (up to 24CH), Up to 5MP@30fps
Total Video Input 40CH
Output HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1 : CVBS (used as the main or spot output)
Compression H.264/H.265/H.265+
Multi-screen Display 1/4/6/8/9/13/16/25/32/36
Audio Input RCA × 16
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Record Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1
Frame Rate Analog Channel: 5MP Lite@10fps (PAL / NTSC);
4MP Lite/1080P@12fps(PAL) / 15fps (NTSC)
1080PLite/720P/WD1/D1@25fps(PAL)/ 30fps(NTSC)
IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 5Mbps
Mode Manual, timer, motion, smart event
Playback Playback 16CH
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Alarm Mode Manual, motion, exception, smart event
Input 16CH
Output 4CH
Network Interface RJ 45 1000Mbps × 1
Protocol TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 160Mbps
Client Connection Max. 15 users access
Mobile Device OS  iOS, Andriod
Storage HDD SATA×4, up to 10TB; E-SATA×1
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
Port RS485 Yes (half-duplex), connect to PTZ or keyboard
USB USB 2.0 ×1; USB3.0×1
Remote Controller N/A
Others Power Supply ATX-250W
Consumption  30W ( without HDD )
Dimensions (mm) 440 × 390 × 70 ( W × D × H )
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Directive EU RoHS, WEEE, REACH
