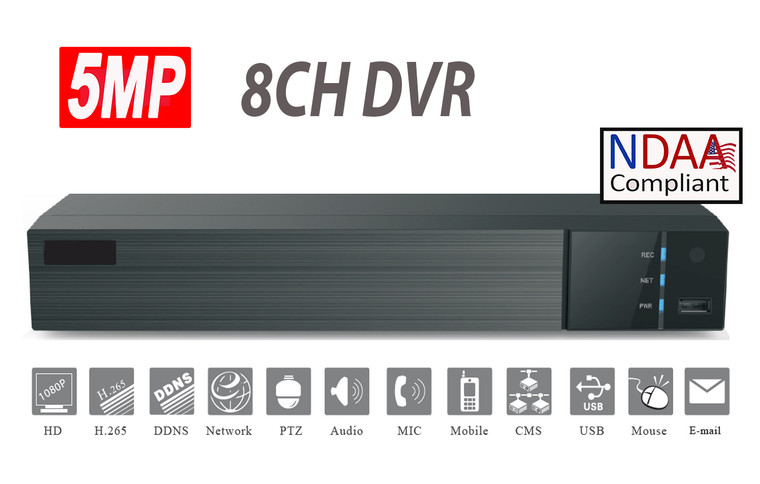

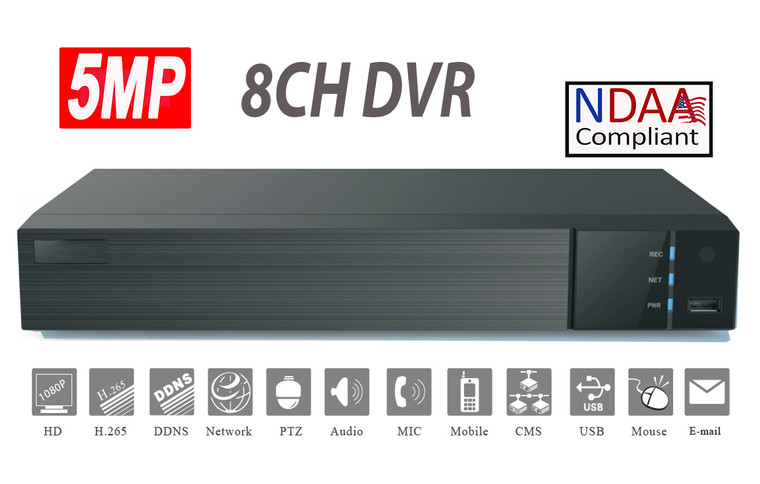

The SuperLive 8CH 5MP HD Analog +4CH IP Hybrid DVR is a reliable and flexible recording solution designed for professional and commercial security installations. With support for 12 total channels (8 HD analog + 4 IP), advanced Smart Sense Human/Vehicle motion detection, and Audio‑over‑Coax capability, this hybrid DVR delivers powerful performance for small to mid‑size surveillance deployments.
Engineered for seamless integration and NDAA compliance, it ensures long‑term compatibility, secure operation, and dependable video quality up to 5MP.
Recommended for:
Features:
NOTE: *DVR does not have Built-in PoE Ports, POE network switch is required to use IP cameras.
Specifications:
| System | OS | Embedded Linux |
| Video | Analog Video Input | BNC × 8: BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI: 4K@15fps/5MP@20fps; 4MP/1080P/720P @30fps; Supports CVBS |
| IP Video Input | 4CH (up to 12CH), Up to 5MP@30fps | |
| Total Input | 12CH | |
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) |
|
| Compression | H.264/H.265/H.265+ | |
| Multi-screen Display | 1 /4/6/8/9/13/16 | |
| Audio | Input | RCA × 8 |
| Output | RCA × 1 (linear, 600Ω) | |
| Two-way audio | Take up channel one audio input | |
| Compression | G.711(U/A) | |
| Record | Resolution | 8MP Lite/5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1 |
| Frame Rate | Analog Channel: 8MP Lite:8fps; 5MP Lite@12fps (PAL/NTSC); 4MP Lite/ 1080P@12fps(PAL)/15fps (NTSC) 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) |
|
| Bit Rate | 32Kbps ~ 4Mbps | |
| Mode | Manual, timer, motion, smart event | |
| Playback | Playback | 8CH |
| Search | Time slice / time / event / tag search | |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Alarm | Mode | Manual, motion, exception, smart event |
| Input | 8CH | |
| Output | 2CH | |
| AI Function | Smart Motion Detection Performance | 8CH |
| Perimeter Protection Performance | 1CH | |
| Network | Interface | RJ 45 100Mbps × 1 |
| Protocol | TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, Websocket, SNMP, IGMP | |
| Incoming Bandwidth | 32Mbps(max.60Mbps) | |
| Outgoing Bandwidth | 60Mbps | |
| Client Connection | Max. 5 users access | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD | SATA×1, up to 10TB; E-SATA×1 |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | RS485 | Yes (half-duplex), connect to PTZ or keyboard |
| USB | USB 2.0 × 2 | |
| Remote Controller | N/A | |
| Others | Power Supply | DC12V/2A |
| Consumption | 10W ( without HDD ) | |
| Dimensions (mm) | 300 × 249 × 45mm ( W × D × H ) | |
| Working Enviroment | -10~50°C, 10%~90% (humidity) | |
| Certificate | CE, FCC | |
| Environmental Protection | Directive EU RoHS, WEEE, REACH |
