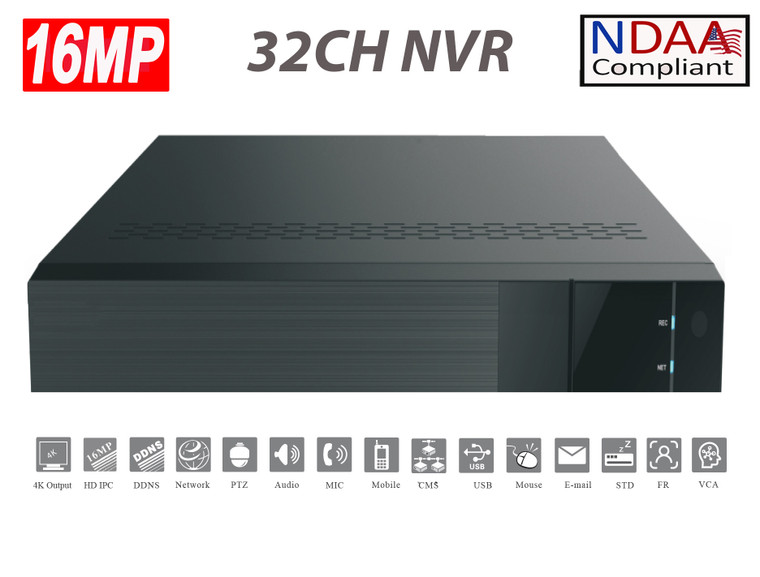

SuperLive 32CH 16MP NVR with 16 PoE, SuperLive Plus APP, NDAA Compliant

SuperLive 32CH 16MP NVR with 16 PoE, SuperLive Plus APP, NDAA Compliant

SuperLive
SKU:
SPL-N32
$599.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description



SuperLive 32CH 16MP NVR, SuperLive Plus APP for Mobile Devices, NDAA Compliant

The SuperLive 32CH NVR is a high‑performance network video recorder designed for professional IP surveillance deployments. Built-in 16 PoE Ports, supports 32CH IP input up to 12MP (4K) IP cameras, advanced H.265/H.264 compression, and seamless mobile access via the SuperLive Plus app, this NVR delivers reliable, scalable security for commercial and enterprise environments.



Features:

  • Support 32 Channel IP Input
  • Support 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 760p, 720p Resolution cameras
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
  • 192 Mbps Incoming/ 192 Mbps Outgoing Bandwidth
  • Support 4x SATA up to 10TB
  • Playback: 16CH simultaneous playback
  • Support P2P
  • Multi-user online simultaneously
  • 4K ultra high-definition output
  • Compatible with SuperLive Plus App available for iOS and Android
  • NDAA Compliant

Perfect for:

  • NDAA‑restricted sites
  • Corporate offices
  • Retail stores and shopping centers
  • Schools, universities, and campuses
  • Warehouses and logistics centers
  • Commercial buildings with IP Network camera systems





Specifications:

System OS Embedded Linux
Video Compression H.265S /H.265+ / H.265 / H.264
IP Network Input 32CH IPC Input
Network Input Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/
960H/D1/CIF
Network Bandwidth 192 Mbps Incoming/ 192 Mbps Outgoing
Output HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768
HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA and HDMI1 output the same video source
Multi-screen Display Main output: 1/4/6/8/9/13/16/25/32/36 (live view)
AUX output: 1/4/6/8/9 (live view)
Max. 32+9CH local live view
Audio Network Input   32 CH IPC audio input
2-way Audio RCA × 1
Local Output RCA × 1
Compression G.711(U/A)
Record Record Stream Dual stream recording
Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720p
Frame Rate 12MP: 20fps; 8MP or lower resolution: NTSC: 30fps; PAL: 25fps
Playback Simultaneous Playback Max. 16 CH
Search Time slice / time / event / tag / smart search
Smart Search Highlighted color to display the camera record in a certain
period of time, different colors refers to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Decoding Capability Live View/ Playback 1CH x 16MP, 4CHx 8MP, 9CHx 3MP, 16CHx 2MP, all@ 30fps
Alarm Mode Manual, sensor, motion, exception, smart events
Input 16 CH local alarm input
Output 4CH
Triggering Record, snap, preset, e-mail, etc.
FACE Face Detection
Performance
(AI by IPC)		 32CH
Face Detection
Performance
(AI by Device)		 2CH
Face Match
Performance		 6CH
Comparison Capability 18 pictures / second
Face Picture
Database		 32 libraries
10000 Face Pictures
Face Picture
Search		 Search by picture is supported
Database
Management		 Add, modify, delete and search face pictures
Face Picture
Adding		 Add face pictures through APP, WEB and external import
Face Picture
Comparison		 Support successful face recognition alarm and stranger match alarm
FACE Track Track display on a map
Statistical Graph
of Information		 Bar graph
Statistical Mode
of Information		 Statistics by day, week, month, quarter as well as
customized time period
Video
Structure
Analysis		 Human/Vehicle
Classification		 Yes
Other Functions Fisheye Supports fisheye dewarping via Web Client and mobile APP
Plate Recognition
(AI by IPC)		 Yes
Network Interface RJ 45 1000 Mbps × 2
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP,
HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc.
Client Connection Max. 128 users access
PoE PoE Port RJ 45 100Mbps × 16
Standard IEEE802.3AF/AT
Output Power ≤ 150W
Mobile Device OS iOS, Andriod
Storage HDD Storage SATA × 4, max 10T for each HDD
E-SATA Interface E-SATA ×1
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
External Interface RS485 Yes (full-duplex), connect to PTZ or keyboard
USB USB 3.0 × 1 ; USB 2.0 × 2
Remote Controller N/A
Others Power Supply ATX 300W(PoE)
Consumption ≤ 20W ( without HDD and PoE power supply )
Dimensions mm 440 × 390 × 70( W × D × H )
Working Environment -10～50 °C, 10% ～ 90% humidity
Certificate CE, FCC
Enviromental Protection Complies with Directive EU RoHS, REACH and WEEE
