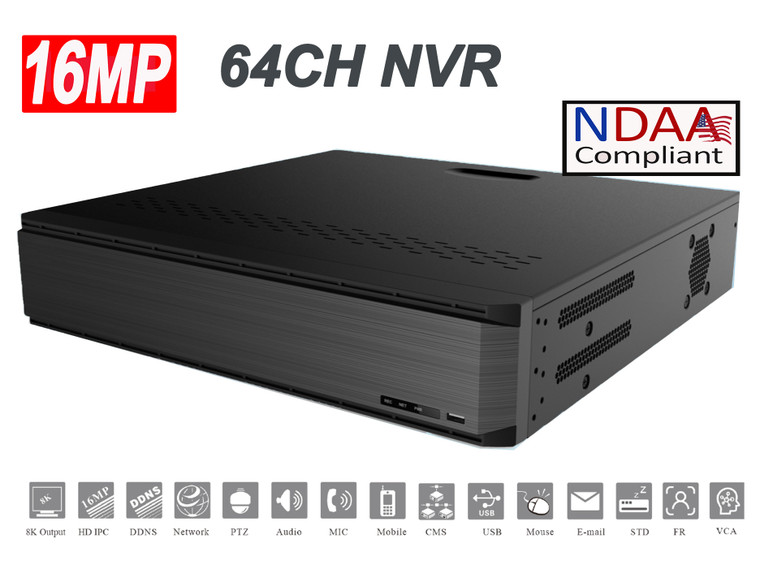

SuperLive 64CH 16MP NVR, SuperLive Plus APP, NDAA Compliant

SuperLive 64CH 16MP NVR, SuperLive Plus APP, NDAA Compliant

SuperLive
SKU:
SPL-N64-0
$839.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description



SuperLive 64CH 16MP NVR, SuperLive Plus APP for Mobile Devices, NDAA Compliant

The SuperLive 64CH NVR is a high‑performance network video recorder designed for professional IP surveillance deployments. Supports 64CH IP input up to 16MP (4K) IP cameras, advanced H.265/H.264 compression, and seamless mobile access via the SuperLive Plus app, this NVR delivers reliable, scalable security for commercial and enterprise environments.



Features:

  • Support 64 Channel IP Input
  • Support 16MP/12MP/8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 760p, 720p Resolution cameras
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
  • 640 Mbps Incoming/ 640 Mbps Outgoing Bandwidth
  • Support 8x SATA up to 10TB
  • Playback: 16CH simultaneous playback
  • Support P2P
  • Multi-user online simultaneously
  • 4K ultra high-definition output
  • Compatible with SuperLive Plus App available for iOS and Android
  • NDAA Compliant

Perfect for:

  • NDAA‑restricted sites
  • Corporate offices
  • Retail stores and shopping centers
  • Schools, universities, and campuses
  • Warehouses and logistics centers
  • Commercial buildings with IP Network camera systems





Specifications:

System OS Embedded Linux
Video Compression H.265S /H.265+ / H.265 / H.264
IP Network Input 64CH IPC Input
Network Input Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P
Network Bandwidth 640 Mbps Incoming/ 640 Mbps Outgoing
Output HDMI1: 7680×4320@60 7680×4320@30 3840×2160@60 3840×2160@30 1920×1080 1280×1024
1024×768 (When the resolution of HDMI1output is 8K, HDMI2 is unavailable)
HDMI2: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768
HDMI3: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768
HDMI4: 1920×1080 1280×1024 1024×768
VGA×1: 1920×1080 1280×1024 1024×768 (VGA and HDMI1 output the same video source)
Multi-screen Display Main output: 1/4/6/8/9/13/16/25/32/36/64
AUX output 1: 1/4/6/8/9/13/16/25/32/36
AUX output 2: 1/4/6/8/9/13/16
AUX output 3: 1/4/6/8/9/13/16
Max. 132(64+36+16+16)
Audio Network Input  64 CH IPC audio input
Local Input RCA×1 (for two-way talk)
Local Output RCA × 1
HDMI Audio Output Support
Compression G.711(U/A)
Record Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720p
Frame Rate 30fps; PAL: 25fps
Playback Simultaneous Playback Max. 16 CH
Search Time slice / time / event / tag / smart search
Function Play, pause, FF, FB, digital zoom, etc.
Decoding Capability Live View 1CH 16MP@30 / 4 CH 12MP(only available for main output)
Playback 1CH 16MP@30 / 4CH 8MP(only available for main output)
Alarm Mode Manual, sensor, motion, exception, smart events
Input 16CH
Output 4CH
Triggering Record, snap, preset, e-mail, etc.
FACE Face Detection
Performance
(AI by IPC)		 64CH
Face Detection
Performance
(AI by Device)		 4CH
Face Match
Performance		 16CH
Comparison Capability 36 pictures / second
Face Picture
Database		 32 libraries
10000 Face Pictures
Face Picture
Search		 Search by picture is supported
FACE Database
Management		 Add, modify, delete and search face pictures
Face Picture
Adding		 Add face pictures through APP, WEB and external import
Face Picture
Comparison		 Support successful face recognition alarm and stranger match alarm
Track Track display on a map
Statistical Graph
of Information		 Bar graph
Statistical Mode
of Information		 Statistics by day, week, month, quarter as well as customized time period
Video
Structure
Analysis		 Human/Vehicle
Classification (AI by IPC)		 64ch
Human/Vehicle
Classification
(AI by Device)		 8CH
Human/Vehicle Attribute Analysis Yes
Other Functions Fisheye Supports fisheye dewarping via Web Client and mobile APP
Plate Recognition
(AI by IPC)		 Yes
Network Interface RJ45 10/100/1000Mbps ×2
Protocol TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
Client Connection Max. 128 users access
Mobile Device OS iOS, Andriod
Storage HDD Storage SATA× 8 max 10TB per HDD
RAID Type RAID0,1,5,6,10
E-SATA Interface 2
Port RS485 Yes (full-duplex), connect to PTZ or keyboard
USB USB3.0× 1 USB2.0 × 2(Front:1)
Remote Controller N/A
Others Power Supply ATX-200W
Consumption ≤50W (without HDD)
Dimensions mm 445 × 436 × 90mm W×D×H
Working Environment -10～50 °C, 10% ～ 90% humidity
Certificate CE, FCC
Enviromental Protection Directive EU RoHS, WEEE(2012/19/EU) , Directive 94/62/EC and
REACH(EC1907/2006)
