Vericom Cat5e UTP Solid Copper 1000ft Box Cable - White
VERICOM
$129.99
$169.00
(You save
$39.01
)
(No reviews yet)
Write a Review
VERICOM
Vericom Cat5e UTP Solid Copper 1000ft Box Cable - White
CAT 5E U/UTP CABLE 350 MHz
24 AWG SOLID RISER, 4 PAIR
1000 FT PULL BOX
COLOR: WHITE
Vericom offers these 1,000 ft. pull boxes for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. The cable meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss. Constructed from high quality solid copper cable, this design minimizes Near-End Crosstalk levels.- Length: 1,000 ft.
- Packaging: Pull Box
- Quality PVC jacket with sequential foot markers
- CMR-Rated
- Solid bare copper center conductor
- Conductor Size: 24 AWG
- 4 Unshielded Twisted Pair (U/UTP)
- Differential twisted pairs to reduce crosstalk
- Rated Temperature: 75ºC
- UL-Listed, RoHS Compliant
PRODUCT SPECIFICATIONS
RISER CAT5E U/UTP 350 MHz
Note: Technical specifications are subject to change without notice.
Note: The above transmission performance for the 100M, 20±2°C under the conditions tested
| COMPLIANCE | ||||
| RoHS | UL Listed | C(UL) Listed | CSA | |
| CERTIFICATIONS | ||||
| TIA 568-C.2 Category 5e | ISO/IEC 11801 | |||

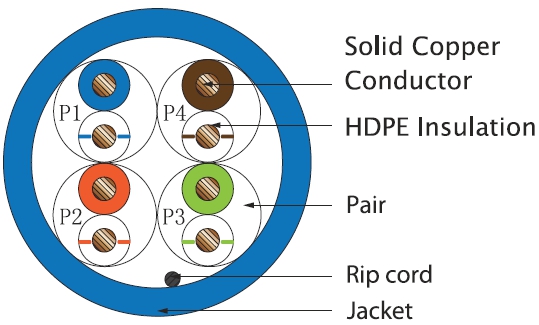

| PHYSICAL SPECIFICATIONS | ||||
| Cable Construction | 24 AWG U/UTP x 4P | |||
| Conductor Material | Solid Bare Copper | |||
| Insulation Material Type | HDPE | |||
| Insulation Diameter | Ø 0.88 ± 0.05 mm | |||
| Number of Insulations | 4 Pair | |||
| PAIR COLORS | P1 | White – Blue / Blue | ||
| P2 | White – Orange / Orange | |||
| P3 | White – Green / Green | |||
| P4 | White – Brown / Brown | |||
| Jacket Material | FRPVC | |||
| Jacket Diameter | Ø 4.8 ± 0.1 mm | |||
| Jacket Thickness | 0.5 ± 0.1 mm | |||
| Jacket Flame Rate | CMR | |||
| Rip Cord | Nylon | |||
| MECHANICAL CHARACTERISTICS | ||||
| Cable under the minimum tension | ≥400N | |||
| Conductor Elongation | ≥ 15% | |||
| JACKET | ||||
| Unaged | Tensile Strength | ≥ 13.5 Mpa | ||
| Elongation | ≥ 150% | |||
| Aged | Tensile Strength | ≥ 13.5 Mpa | ||
| Elongation | ≥ 125% | |||
| ELECTRICAL CHARACTERISTICS | ||||
| Impedance | 1-350 MHz 100 ± 15 (Ohms) | |||
| Overall Temp. Rating | 75°C | |||
| DC Resistance Unbalance | Max. 2.5% | |||
| DC Resistance 20°C | 124 (Ohms/Km) | |||
| Pair-to-Ground Capacitance Unbalance | 330 (pF/100M) | |||
| Insulation Resistance | >5000MΩ*Km | |||
| Dielectric Strength | DC 2500V 2s | |||
| NOMINAL TRANSMISSION CHARACTERISTICS | |||||
| FREQUENCY (MHz) | RETURN LOSS (dB) | ATTENUATION (dB/100M) | DELAY (NS) | NEXT (dB) | PSNEXT (dB) |
| 1 | 20.0 | 2.2 | 570 | 65 | 62 |
| 4 | 23.0 | 4.2 | 552 | 56 | 53 |
| 10 | 25.0 | 6.5 | 545 | 50 | 47 |
| 16 | 25.0 | 8.4 | 543 | 47 | 44 |
| 20 | 25.0 | 9.3 | 542 | 45 | 42 |
| 31.25 | 23.6 | 11.6 | 540 | 42 | 39 |
| 62.5 | 21.5 | 17.0 | 538 | 38 | 35 |
| 100 | 20.1 | 22.0 | 537 | 35 | 32 |
| 200 | 18.92 | 32.42 | 537.02 | 30.78 | 27.78 |
| 250 | 17.60 | 36.85 | 536.28 | 29.33 | 26.33 |
| 350 | 16.30 | 44.85 | 535.92 | 27.14 | 24.14 |
