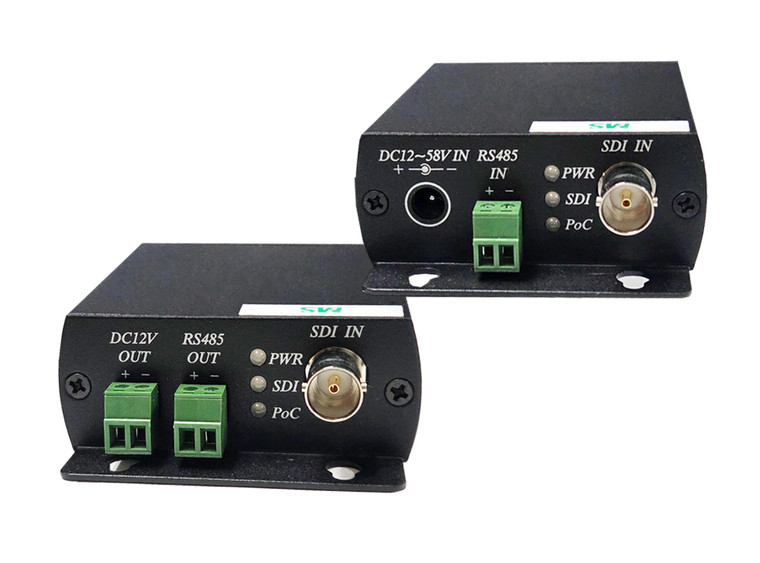

SDIVPD HD-SDI Video, Power & RS485 Data over One Coax Extender

Professional HD-SDI Transmission Solution | Video + Power + Data on a Single Coax Cable

SDIVPD is designed to use one coax cable to send HD-SDI video with RS485 data and power to HD-SDI camera. It can offer real time and un-compressed broadcasting video quality, up to 1080p resolution and comply with SMTPE 292.

This can be used for CCTV, PTZ camera systems, industrial monitoring, machine vision, and security applications. Supports HD-SDI video transmission up to 300 meters (984 ft) over RG6U coax cable.

Key Features

• Transmits HD-SDI video, RS485 data, and power over one coax cable
• Supports HD-SDI (SMPTE 292M) video standards
• Resolution support up to 1080p
• Maximum transmission distance of 300m (984 ft) over RG6U cable
• Built-in RS485 data transmission for PTZ camera control
• Supports receiver power input from DC 12V to DC 58V
• Provides camera power output up to DC 12V / 1A
• Integrated surge protection for enhanced reliability
• Allows existing RG59/RG6 coax infrastructure to be reused when upgrading from analog to HD-SDI systems
• Compact metal housing for professional installations

Specifications

Video

• Video Format: SDI (SMPTE 259M); HD-SDI (SMPTE 292M)
• Supported Resolutions:
  • 720p @ 24/25/30/50/60Hz
  • 1080i @ 50/60Hz
  • 1080p @ 24/25/30Hz
• Interfaces: BNC 75Ω connectors

Transmission

• Up to 300m (984 ft) over RG6U coax
• Approx. 125m (410 ft) over RG59 coax

Data

• RS485 transmission
• Application for PTZ camera control (one-day data transmission)
• Data rates up to 57,600 bps

Power

• SDIVPR Receiver Power Input: DC 12V–58V
• SDIVPT Transmitter Camera Output: DC 12V / 1A maximum
• Power Consumption: 3W max

Environmental

• Operating Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 85°C
• Humidity: Up to 95% RH

Applications

• HD CCTV surveillance systems
• PTZ camera installations
• Industrial inspection systems
• Traffic monitoring
• Security upgrades utilizing existing coaxial cabling
• Machine vision and automation projects

Package Includes

• SDIVPDT Transmitter
• SDIVPDR Receiver
