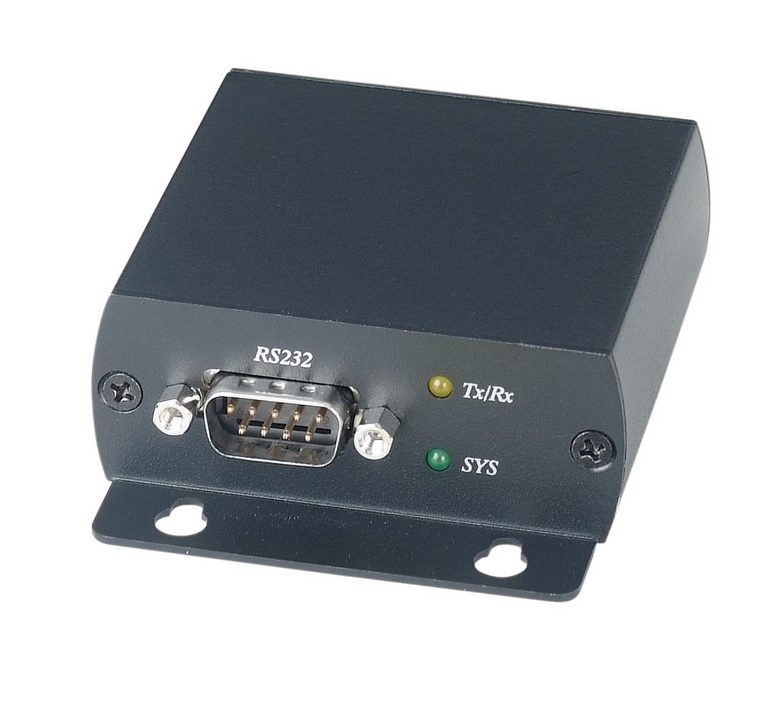

RS005 RS232 (Serial) to TCP/IP Converter

RS005 RS232 (Serial) to TCP/IP Converter

$84.95
(No reviews yet)
Weight:
1.00 LBS
Width:
6.00 (in)
Height:
5.00 (in)
Depth:
4.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

Product ID: RS005

RS232 (Serial) to TCP/IP Converter

Features:
  • Three operation mode :TCP Server, TCP Client, UDP Mode
  • Data Baud rate: 300 ~ 256000 bps
  • Support full duplex transmission
  • Auto detection network 10/100 Mbps
  • Support auto MDI / MDIX



ITEM NO RS005
TCP/IP Ethernet RJ45   x 1
RS232 Interface DB9   x 1 MALE
Baud Rate Speed 300   ~ 256000 bps
LED Indication POWER   x 1 (Green)，RJ45 x 1 (Green/Yellow)，Tx/Rx x 1 (Yellow)，
SYS x 1 (Green)
Function button 1
Power Adapter DC   5V 500mA
Power Consumption (Max). 220mA   @ 10/100Mbps
Temperature Operation:   0 to 55℃, Storage: -20 TO 85℃,
Humidity: up to 95%
Dimensions      67   x 91 x 27 mm
Weight             145   g
