RS003 USB to RS485 Converter
$49.95
RS003I USB to RS485 Converter - Isolation
$76.95
(No reviews yet)
Write a Review

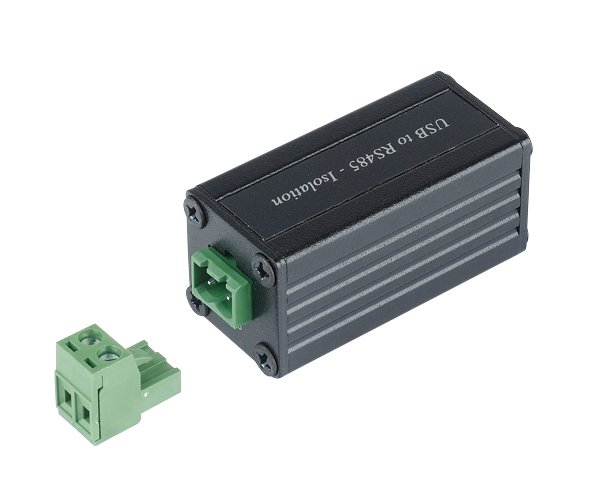

RS003I USB to RS485 Converter - Isolation
Product ID: RS003I
USB to RS485 Converter - Isolation
Specifications:
The RS003I USB Converter provides an easy solution for adding new or additional Com Ports to Windows or Macintosh computers through their USB ports. The RS-485 connection is 2- pin terminal connector. The unit is powered from the USB connection, so no external power supply is necessary.
Features:
- USB to RS485 interface converter.
- Two wire, differential signals.
- Non power operation.
- Auto switching baud rate, speed up to 115,200 baud over a distance 1200 meters.
- 32 units connected together in RS-485 multi drop installations.
- USB 2.0 Compliant
- Powered by PC
- Connect/Disconnect Without Reboot
- Windows 98, ME, XP & 2000 Compatible
- MAC OS 8.6 to 9.2 Compatible
- Software Drivers Included
- Built in 3KV isolation protection.
| ITEM NO. | RS003I |
| Input | USB 2.0 |
| Output | RS485 |
| Power Consumption | 10mA (max) from the USB connector |
| Transmission Distance | 1200 meters |
| Connector | 32 |
| Power | X |
| Temperature | Operation: 0 to 55℃, Storage: -20 TO 70℃, Humidity: up to 95% |
| Dimensions | 67.5X25X25 mm |
| Weight | 65 g |
