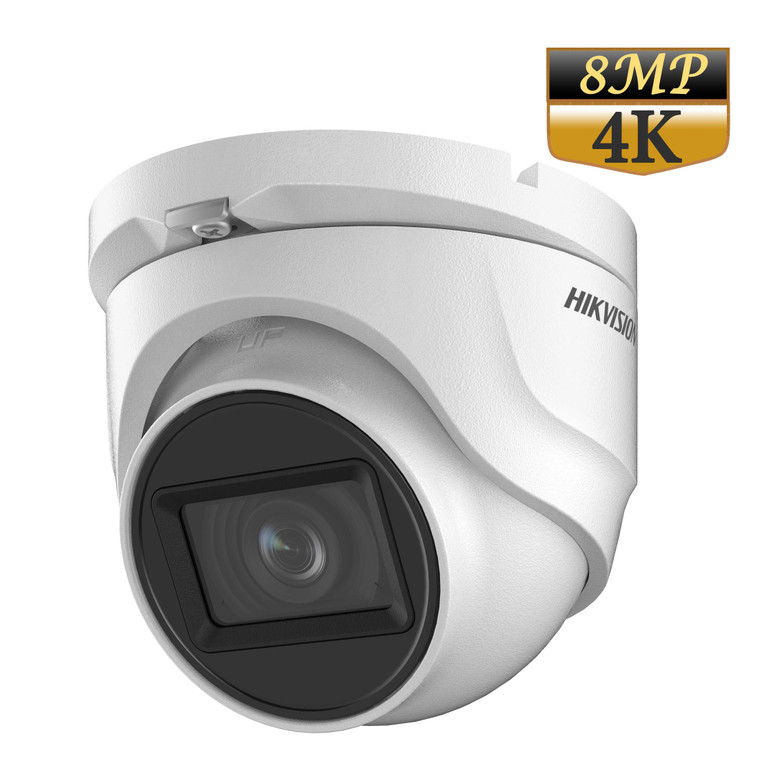

Upgrade your security system with the Hikvision DS-2CE76U1T-ITMF, a powerful 4K Ultra HD analog dome camera designed to deliver exceptional video quality day and night.
With 8MP resolution, you’ll capture ultra-detailed footage for improved identification and peace of mind. Whether you’re protecting your home, office, warehouse, or retail store, this camera ensures no detail goes unnoticed.
The advanced EXIR infrared technology provides clear night vision up to 100 feet, eliminating dark spots and overexposure. Combined with its weatherproof IP67 rating, this camera is built to perform in rain, dust, or extreme temperatures.
Perfect for upgrading existing CCTV systems, this camera supports HD-TVI technology, allowing you to reuse your current coaxial cables while stepping up to 4K quality.
***This is a HD Analog camera with BNC connector. Must have DVR that support 8MP resolution camera. This is NOT a NETWORK/IP/POE camera, NOT compatible with NVRs***
Specifications
|
Camera |
|
|
Image Sensor |
8.29 megapixel progressive scan CMOS |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps |
|
Resolution |
3840 (H) x 2160 (V) |
|
Min. Illumination |
Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
|
Lens |
2.8 mm fixed lens |
|
Horizontal Field of View |
102.2° |
|
Lens Mount |
M16 |
|
Day & Night |
IR cut filter |
|
Angle Adjustment (Bracket) |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
|
Synchronization |
Internal synchronization |
|
DWDR (Digital Wide Dynamic Range) |
105 dB |
|
Menu |
|
|
AGC |
Yes |
|
Day/Night Mode |
Auto/ Color/ BW (Black and White) |
|
BLC (Backlight Compensation) |
Yes |
|
Language |
English |
|
Functions |
Brightness, Sharpness DNR, Mirror, Smart IR, HLC |
|
Interface |
|
|
Video Output |
1 HD analog output |
|
Switch Button |
TVI/ AHD/ CVI/ CVBS |
|
General |
|
|
Operating Conditions |
-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensation) |
|
Power Supply |
12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera |
|
Power Consumption |
Max. 5.3W |
|
Protection Level |
IP67 |
|
Material |
Metal |
|
IR Range |
Up to 30 m |
|
Communication |
Up the coax, Protocol: Hikvision-C (TVI output) |
|
Dimensions |
90 mm x 79.37 mm (3.54” x 3.12”) |
|
Weight |
Approx. 310 g (0.68 lb.) |
Optional Accessory (Not included):
Junction Box: DS-1280ZJ-M
