NOTE: These devices is reversible, BNCconnector = RJ45
This installation should be made by a qualified service person and should conform to all local codes.

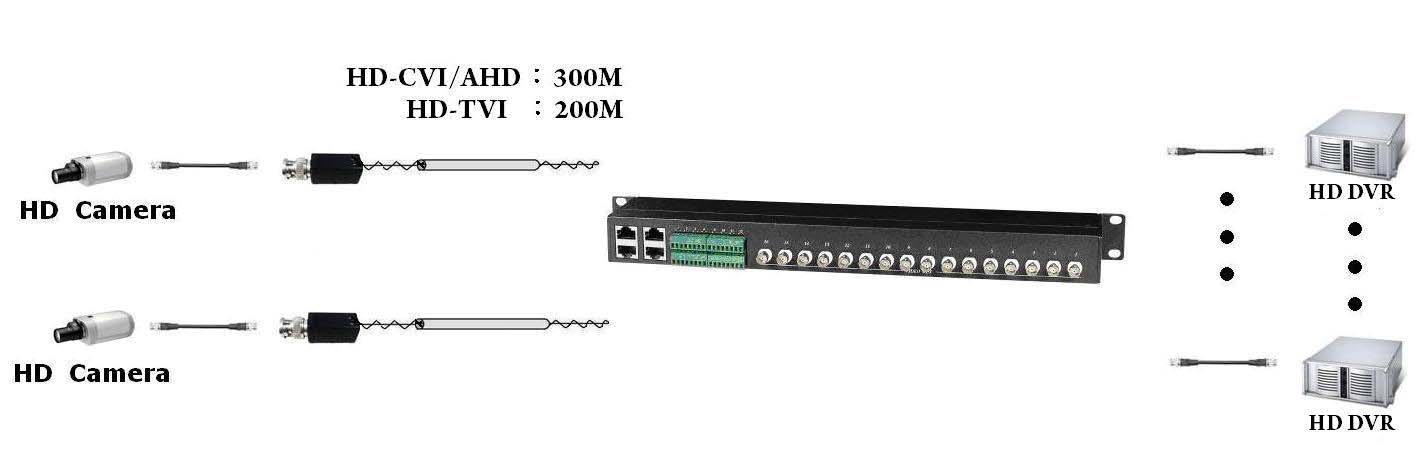

Use high qualify CAT5e UTP or CAT6 UTP cable. The max working distance is 300M. The distance may effected by the quality of cable, camera, DVR.
1. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage.
2. Must use same video format camera to avoid any interference.

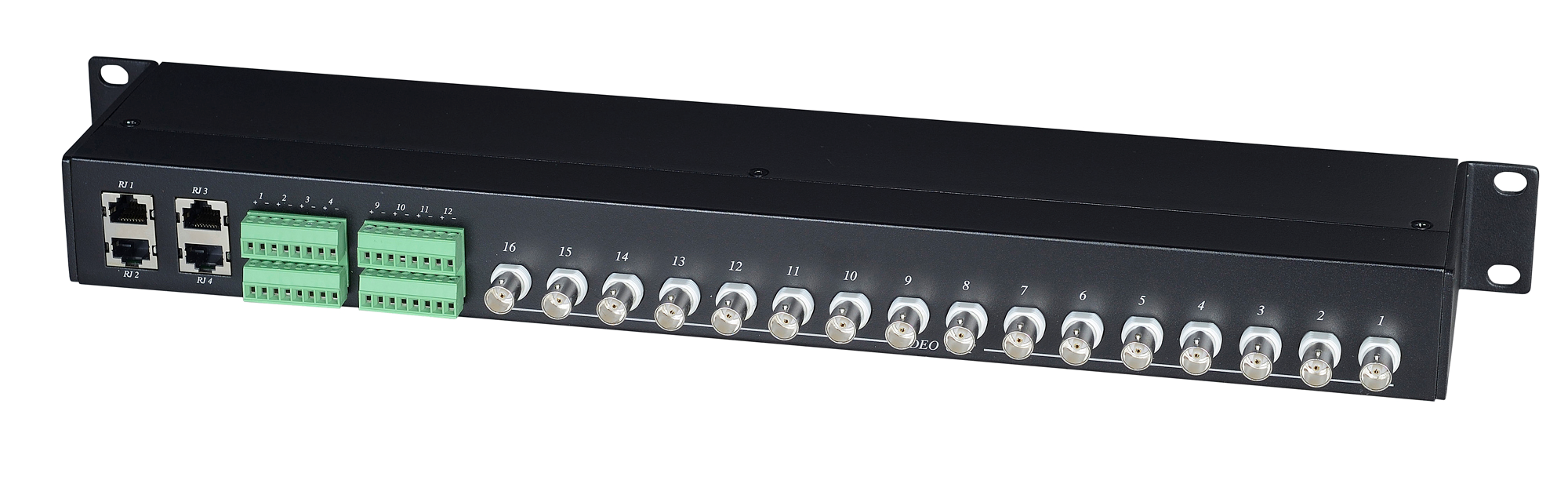

| ITEM NO. | TPP016HD |

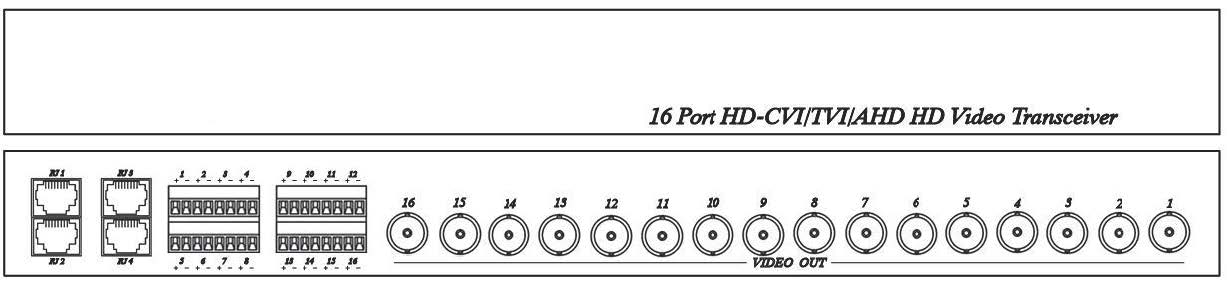

| Video Input/Output | BNC x 16 (1Vp-p, 75 Ohm) |

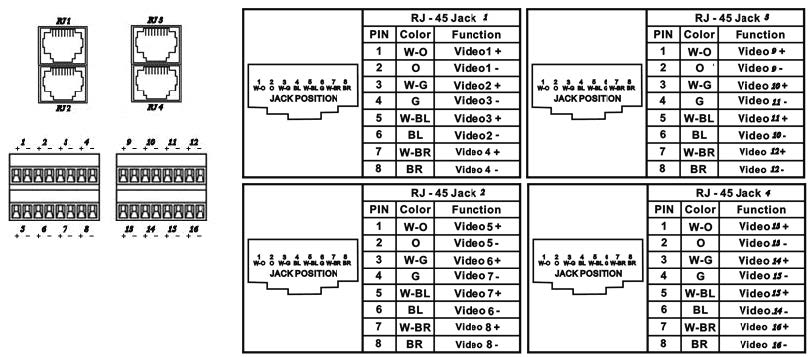

| RJ45 Output | 8 Pin removable terminal x 4 (100 Ohm) / RJ45 x 4 |
| Cable | CAT5e / CAT6 UTP |
| Bandwidth | 50Hz ~ 60MHz (-3dB) |
| Transmission Distance |
HD-CVI / AHD: 300 meters HD-TVI: 200 meters |
| ESD Protection | 30KV (Air), 15KV (Contact); IEC 61000-4-2 compliant |
| EFT Protection | 40A (5/50ns); IEC 61000-4-4 compliant |
| Lightning Protection | 2A (8/20µs); IEC 61000-4-5 compliant |
| Surge Protection Attack Time | < 1nS |
| Environmental Specifications | Operation: 0º to 55ºC, Storage: -20º to 85ºC, Humidity: up to 95% |
| Dimensions (mm) | 483 x 103.3 x 44 (1U) |
| Weight (g) | 1380 |
