Model |

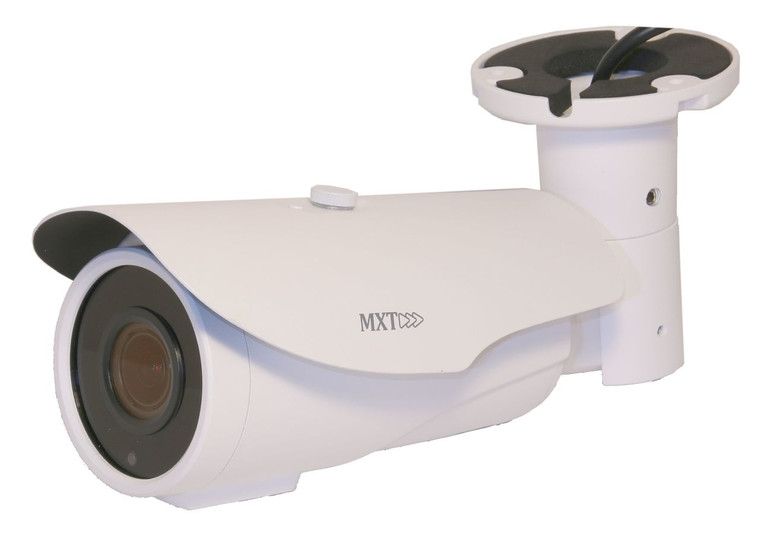

HD4-2BU2713ML |
Video Output Mode |
4-in-1 switchable: HD-TVI, AHD, HD-CVI, CVBS |
Image Sensor |
1/2.9” 2.1MP CMOS Sensor |
Image Resolution |
2MP 1080P/960H |
Effective Pixels |
1920 x 1080 |
TV System |
PAL / NTSC |
Electronic Shutter |
1/25s ~ 1/50,000 s, 1/30s ~ 1/60,000s |
S/N Ratio |
≥50 dB |
Scanning System |
Progressive |
Lens |
Motorized 2.7 ~ 13.5 mm |
Focus Control |
Auto |
Pixels |
3M Pixels |
IR Leds |
42µ x 4 pcs |
Effective IR Distance |
40 meters |
IR power on |
Under 10Lux, CDS auto control |
Day/Night |
Yes |
OSD Menu Language |
Yes |
White Balance |
Auto/ Manual |
Gain Control |
Auto |
Noise Reduction |
3DNR |
Picture Adjustment |
Yes |
WDR |
Yes |
OSD Support |
Yes |
UTC (up the coax) |
Yes |
Housing |
Metal |
Ingress Protection Rating |
IP66, weatherproof, indoor/outdoor use |
IR Cut Filter |
Yes |
Operating Temperature |
-10°C ~ 50°C RH95% Max |
Power Source |
DC12V±10%, 700mA |
Dimensions |
291 (W) x 90 (H) x 93(D)mm |
Weight |
1600 g |
