Set of 16CH HD CCTV Video & Power Balun - Balun & Passive Receiver w/ Power Hub
MXT VIDEO AND POWER BALUN SET
FOR HD CCTV DC12V CAMERAS up to 2MP/1080p resolution
Send Power (DC36V to DC12V) and HD CCTV Video

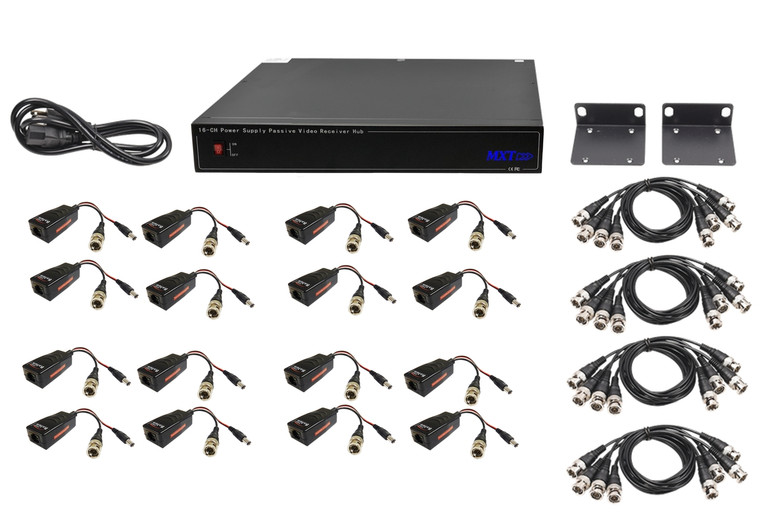

Balun Set includes:
- Passive Video Balun Receiver and Power Hub x1
- Passive Video and Power Baluns x16
- AC power cord x1
- Mounting Bracket x1 set
- Coaxial Cable with Male BNC connectors terminal x16
- Instruction sheet
Features:
- Provide DC12V power to cameras while receiving video transmission using single 4-pair UTP CAT5e/6 cable
- No additional power supply needed for cameras
- The passive video balun receiver and power hub transmits DC36V up to 1000 ft / 305 meters
- The passive video and power balun transmitter converts DC36V to DC12V
- Real-time transmission
- Exceptional interference rejection
- Ground loop isolation
- Built-in TVS for surge protection
- Lightning protection
- Waver filter designed
- Anti-static designed
- Compatible with NTSC, PAL, SECAM video format
- Compatible with analog CVBS cameras and HD CCTV cameras up to 2MP/1080p: HD-TVI, AHD & HD-CVI
- Maximum video transmission distance
- HD-TVI: 170m (558ft) @ 720p and 1080p resolution
- AHD: 280m (918ft) @ 720p and 960p; 200m(656 ft) @ 1080p resolution
- HD-CVI: 400m(1312ft) @720p, 170m(558 ft) @1080p resolution
Application Example
Specifications
|
Model |
16 Channel Power Supply Passive Video Receiver Hub with DC36V output |
|
VIDEO |
|
|
Video format |
PAL, NTSC, SECAM |
|
Operating frequency |
DC to 5MHz |
|
Maximum Distance |
UTP Category 5e (24 AWG) · HD-TVI: 170m (558ft) @ 720p and 1080p resolution · AHD: 280m (918ft) @ 720p and 960p; 200m(656 ft) @ 1080p resolution · HD-CVI: 400m(1312ft) @720p, 170m(558 ft) @1080p resolution |
|
Common-mode/ Differentia-mode rejection |
15 KHz to 5 MHz 60 dB typ |
|
Impedance |
Coax, Male BNC: 75Ω UTP, RJ45 100Ω |
|
Attenuation |
0.5dB typ |
|
WIRE TYPE |
|
|
Network wiring |
One Unshielded Twisted Pair (for each video signal) 24-16AWG |
|
Category Type |
2 or better |
|
Impedance |
100 ± 20Ω |
|
DC Loop Resistance |
52Ω per 1000 ft (18Ω per 100m) |
|
Differential Capacitance |
19pF/ft max (62 pF/m max) |
|
POWER |
|
|
Power Input |
AC100~240V |
|
Power Transmission |
DC36V, up to 1000ft/305m via UTP CAT5e/6 |
|
CONNECTOR |
|
|
Video Input |
RJ45 Jack |
|
Video Output |
Female BNC connector |
|
PROTECTION |
|
|
Surge protection |
Built-in Transient Voltage Suppressor (TVS) |
|
Antistatic |
YES |
|
GENERAL |
|
|
Dimensions |
493 x 170 x 44.5mm |
|
Housing |
Black galvanized |
|
Net weight |
3220g |
|
Operating Temperature |
-25°C ~ 75°C |
|
Relative Humidity |
0 – 95% (non-condensing) |
|
Storage Temperature |
-40°C ~ 150°C |
|
Model |
Passive Video and Power Balun Transmitter And Power Converter Converts DC36V to regulated DC12V |
|
VIDEO |
|
|
Video format |
PAL, NTSC, SECAM |
|
Operating frequency |
DC to 5MHz |
|
Maximum Distance |
UTP Category 5e (24 AWG) · HD-TVI: 170m (558ft) @ 720p and 1080p resolution · AHD: 280m (918ft) @ 720p and 960p; 200m(656 ft) @ 1080p resolution · HD-CVI: 400m(1312ft) @720p, 170m(558 ft) @1080p resolution |
|
Common-mode/ Differentia-mode rejection |
15 KHz to 5 MHz 60 dB typ |
|
Impedance |
Coax, Male BNC: 75Ω UTP, RJ45 100Ω |
|
Attenuation |
0.5dB typ |
|
WIRE TYPE |
|
|
Network wiring |
One Unshielded Twisted Pair (for each video signal) 24-16AWG |
|
Category Type |
2 or better |
|
Impedance |
100 ± 20Ω |
|
DC Loop Resistance |
52Ω per 1000 ft (18Ω per 100m) |
|
Differential Capacitance |
19pF/ft max (62 pF/m max) |
|
POWER |
|
|
Power Input |
DC36V |
|
Power Output |
DC12V |
|
CONNECTOR |
|
|
Video Input |
Male BNC connector |
|
Video Output |
RJ45 jack |
|
PROTECTION |
|
|
Surge protection |
Built-in Transient Voltage Suppressor (TVS) |
|
Antistatic |
YES |
|
GENERAL |
|
|
Dimensions |
65 x 36 x 25mm |
|
Housing |
ABS Engineering plastic |
|
Net weight |
60g |
|
Operating Temperature |
-25°C ~ 75°C |
|
Relative Humidity |
0 – 95% (non-condensing) |
|
Storage Temperature |
-40°C ~ 150°C |
