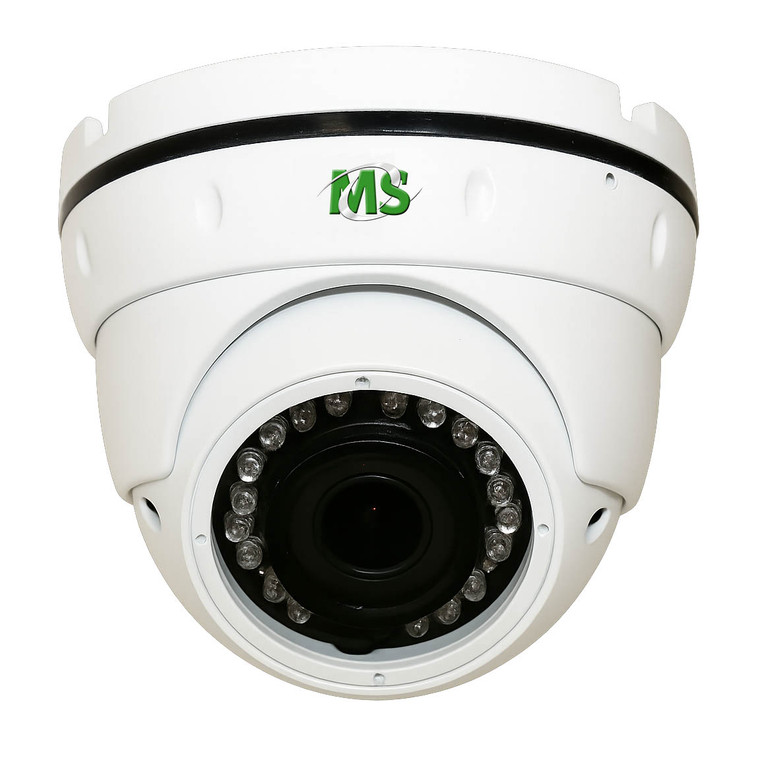

MS 1000TVL 1/3" Analog NTSC IR Dome Camera Varifocal 2.8-12mm Lens

MS 1000TVL 1/3" Analog NTSC IR Dome Camera Varifocal 2.8-12mm Lens

MS
SKU:
VD-IKC-2812
$49.95
Current Stock:
Adding to cart… The item has been added
Description

MS Color 1000TVL Standard Analog NTSC Dome CCTV Camera 2.8-12mm ICR Lens

with 1/3" Sony IMX238 1.3MP CMOS Image Sensor

Model VD-1KC-2812

Description:

  • Outdoor Dome Camera with varifocal 2.8 ~ 12 mm lens
  • Image Sensor: 1/3" SONY IMX238 1.3MP CMOS
  • Effective IR distance up to 20m



Model

VD-1KC-2812

Pick-up Device

1/3" SONY CMOS

Effective Pixels
  • NTSC 960(H) × 480(V)
  • PAL 960(H) × 576(V)

Scanning System

2:1 Interlaced

Sync. System

Internal

Resolution

1000 TVL

Lens

2.8 ~ 12 mm

White Balance

AUTO

Electronic Shutter

AUTO

S/N Ratio

more than 50dB (AGC off)

Video Output

1.0 Vp-p composite video output, 75Ω

IR LED

36 units IR LED (Ø5mm/850nm)

IR Distance in Effect

20m

Minimum Illumination

0 Lux (IR on)

Power Supply

DC12V ± 10%

Current Consumption

100 mA (IR off), 400mA (IR on)

Operation Temperature

-20º ~ 55ºC

Dimension

Ø119 × 82 mm

Weight

820 g
