(1) 1/2.8” CMOS Sensor with 1080P video output
(2) With motorized 316-degree pan, the camera can achieve a wide range of view, giving users more comprehensive control over the monitored site
(3) Sequence setup with up to 16 preset points for area patrol
(4) External alarm I/O device connection
(5) WDR to increase image recognizability in overexposure and dark areas
(6) Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of
image brightness, and longer lifetime of LEDs
(7) IR effective distance up to 15 meters for 24-hour surveillance
(8) Camera parameters adjustable when used with AVTECH HD CCTV DVR
(9) Indoor use
Motorized Pan

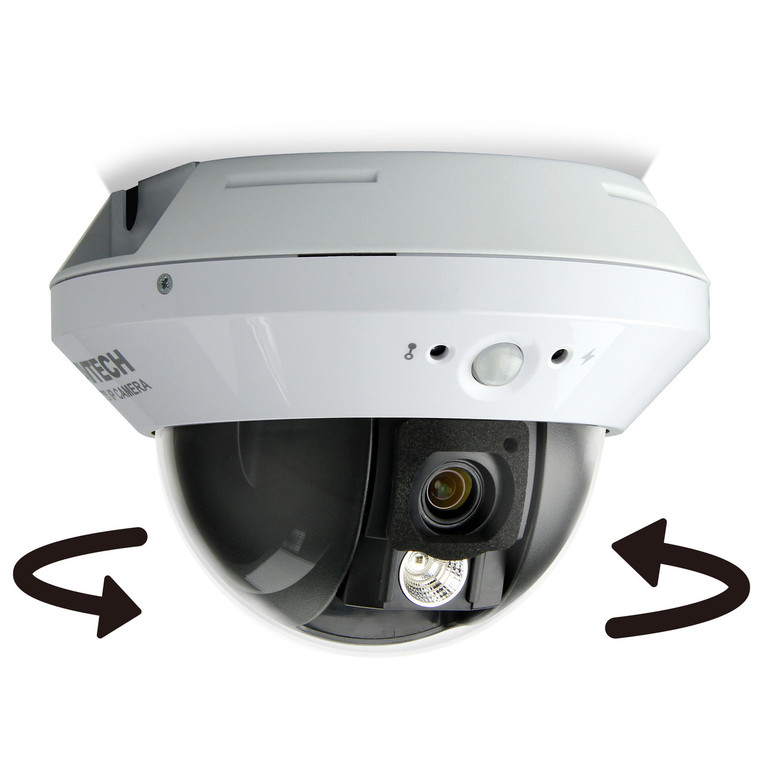

AVT503SA (motorized-pan IR dome camera) supports sequence control, Push Video, and Push Video Lock via the mobile APP of EagleEyes.
*Dimensional Tolerance: ± 5mm
Pick-up Element | 1/ 2.8” SONY CMOS image sensor |
Number of Pixels | 1936(H) x 1096(V) |
Video Frame Rate | 1080P@30fps / 1080P@25fps |
Min. Illumination | 0.1 Lux / F1.8, 0 Lux (IR LED ON) |
S/N Ratio | More than 48dB (AGC OFF) |
Shutter Speed | 1/10,000 ~ 1/7.5 (Slow shutter) |
Lens | f3.6mm / F1.8 |
Lens Angle | 87° (Horizontal) / 46° (Vertical) / 104° (Diagonal) |
IR LED | 1 unit |
IR Effective Distance | Up to 15 meters |
PIR Sensor | Yes |
IR Shift | Yes |
IRIS Mode | AES |
White Balance | ATW |
AGC | Auto |
WDR | YES (120dB) |
External alarm I/O | YES (1 input / 1 output) |
Operating Temperature | 0ºC ~ 40ºC |
Power Source (±10%) | DC12V / 1A |
* The specifications are subject to change without notice.
