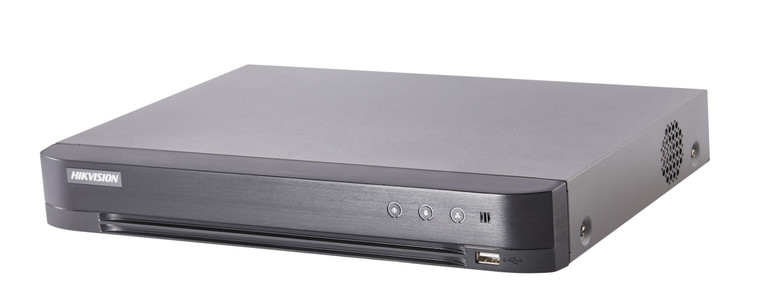

Hikvision 4-ch 1080p 1U H.265 Hybrid DVR iDS-7204HQHI-M1/S Acusense
Hikvision
$89.00
(No reviews yet)
Write a Review
Hikvision
Hikvision 4-ch 1080p 1U H.265 Hybrid DVR iDS-7204HQHI-M1/S Acusense
Model: iDS-7204HQHI-M1/S AcuSense
Features
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Motion Detection 2.0 (Human/Vehicle Analysis all analog channels)
- Perimeter Protection (Up to 2ch)
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected
- Up to 10TB HDD
Specifications
|
MODEL |
DS-7204HQHI-K1/B |
|
RECORDING |
|
|
Video Compression |
H.265 Pro+/ H.265 Pro/ H.265/ H.264+/H.264 |
|
Encoding Resolution |
When 1080p Lite mode is not enabled: 4MP lite/ 3MP/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF;
When 1080p Lite mode is enabled: 4MP lite/ 3MP/ 1080p lite/ 720p/ WD1/ 4CIF/ VGA/ CIF
|
|
Frame Rate |
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access: 4MP lite@15fps; 1080p lite/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/ 30fps(N);
For 3 MP stream access: 3mp/1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF@15fps
For 1080p stream access: 1080p @15fps; 720p/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/ 30fps(N);
For 720p stream access: 720p/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/ 30fps(N);
When 1080p Lite mode is enabled:
4MP lite/3 MP@15fps; 1080p lite/ 720p lite/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/ 30fps(N) |
|
Sub stream: WD1/4CIF@12fps; CIF@25fps (P)/ 30fps (N) |
|
|
Video bit rate |
32 Kbps to 6 Mbps |
|
Dual Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio bit rate |
64 Kbps |
|
VIDEO AND AUDIO |
|
|
IP Video input |
2-ch (up to 6-ch) up to 6MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras
*Note: Any of the 4 BNC HD analog video input could be configured into IP video input (POE switch required, sold separately); allowing connection of up to 6 IP cameras |
|
Analog video input |
4-ch BNC Interface (1.0 Vp-p, 75Ω), supporting coaxitron connection |
|
HD-TVI input |
4MP, 3MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *The 3MP signal input is only available for channel 1 |
|
AHD input |
4MP25, 4MP30, 1080p25, 1080p30, 720p25, 720p30 |
|
HD-CVI input |
4MP25, 4MP30, 1080p25, 1080p30, 720p25, 720p30 |
|
CVBS input |
PAL/NTSC |
|
CVBS output |
1-CH, BNC (1.0 Vp-p, 75Ω), Resolution: PAL: 704 x 576, NTSC: 704 x 480 |
|
HDMI/ VGA Output |
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
|
Audio Input |
1-ch, RCA (2.0 Vp-p, 1 kΩ) |
|
Audio Output |
1-ch, RCA (Linear, 1kΩ) |
|
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) |
|
Synchronous Playback |
4-ch |
|
NETWORK |
|
|
Remote Connections |
32 |
|
Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF |
|
Network Interface |
1 RJ-45 10M/100M self-adaptive Ethernet interface |
|
AUXILLIARY INTERFACE |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 10TB capacity |
|
Serial Interface |
RS-485 (half-duplex) |
|
USB Interface |
Front panel 2 x USB 2.0 |
|
Alarm In/Out |
N/A |
|
GENERAL |
|
|
Power Supply |
12 VDC |
|
Consumption (without hard disk) |
≤ 6 W |
|
Working temperature |
-10°C to 55°C (14°F to 131°F) |
|
Working humidity |
10% ~ 90% |
|
Dimensions (W x D x H) |
260 x 222 x 45 mm (10.2 x 8.7 x 1.8 in) |
|
Weight (without hard disk) |
< 1.16 kg (2.6 lb) |
