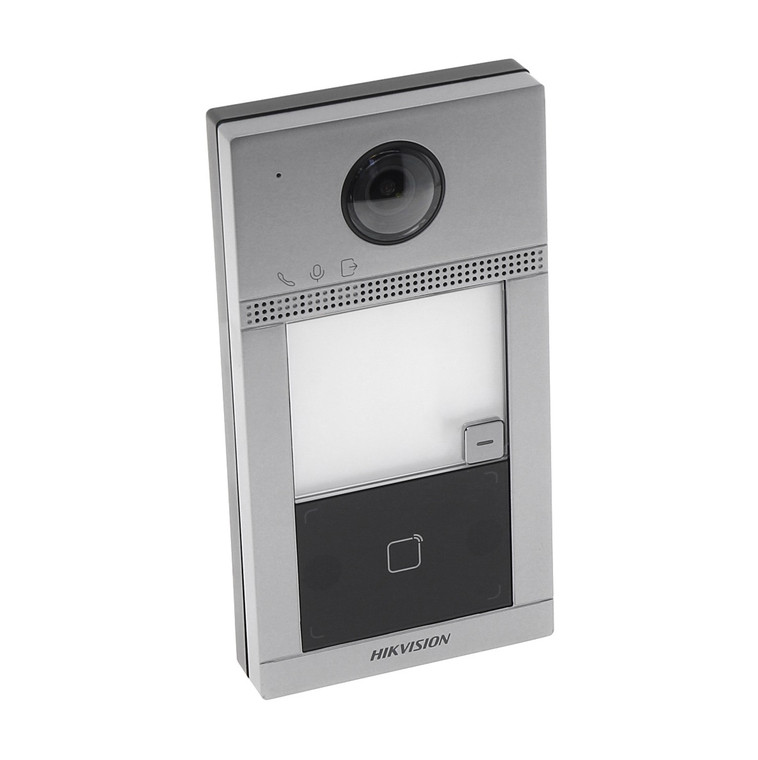

Hikvision DS‑KV8113‑WME1 – Video Intercom Villa Door Station

The Hikvision DS‑KV8113‑WME1 is a robust IP video intercom door station designed for villas, residential complexes, and secure entry points. Featuring a 2MP HD camera, wide viewing angles, IR night vision, PoE support, wireless connectivity options, and a durable aluminum alloy body rated IP65 and IK08, it delivers reliable performance in demanding outdoor environments. Its built‑in Mifare card reader, access control functionality, and seamless integration with the Hik‑Connect mobile app make it a versatile solution for modern smart entry systems.

Key Features:

Video & Imaging

• 2MP HD Camera for clear, high-definition monitoring
• True WDR, DNR, and BLC for quality imaging in challenging light
• IR supplement light providing up to 3 meters of night vision
• Wide 129° horizontal and 75° vertical field of view
• Supports H.264 video compression

Audio

• Two-way audio communication with built-in omnidirectional microphone and loudspeaker
• Noise suppression and echo cancellation for clearer conversations

Networking & Connectivity

• Standard PoE for simple installation
• Supports WiFi connectivity (2.4Ghz)
• Supports TCP/IP, RTSP Network protocols

Access Control & Security

• Built-in Mifare card reader (13.56Mhz)
• Tamper-proof design and 4 alarm inputs
• Two relay outputs for door lock control (max 30VDC 2A)
• Motion detection support

Built Quality & Protection

• Aluminum alloy body with IP65 weather resistance
• IK08 vandal resistance for high durability
• Operating temperature: -40°C to 53°C

Installation & Dimensions

• Surface mounting
• Measures 174x91x29mm
