DVI & Audio Extender over CAT5 with local DVI and Audio loop out
MS
$169.00
(No reviews yet)
Write a Review
MS
DVI & Audio Extender over CAT5 with local DVI and Audio loop out
Product ID: DE01
DVI Extender over CAT5 UTP CABLE
Set of Transmitter & Receiver
Specifications:

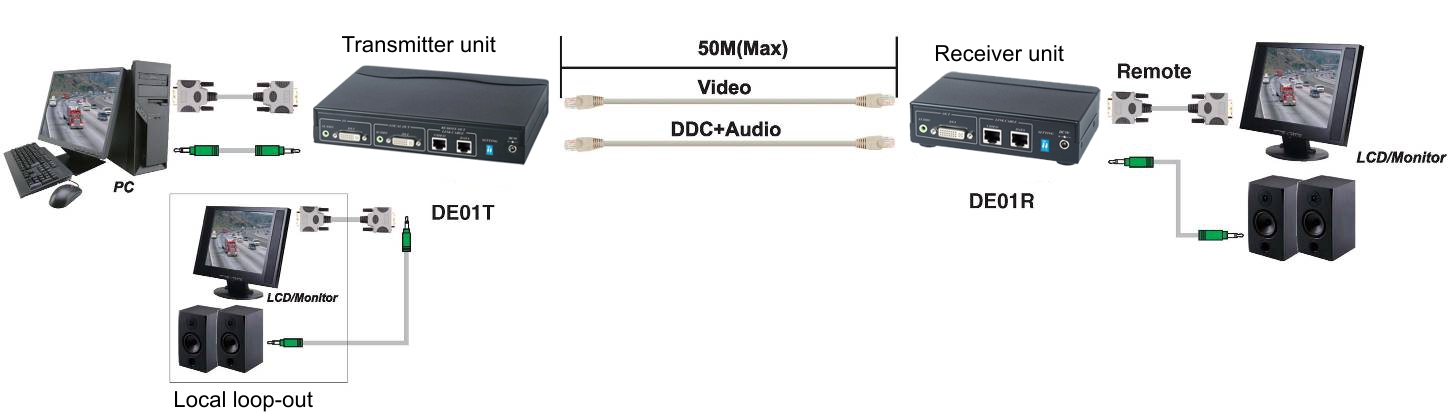

Our Smart DE01 DVI CAT5 Extender with audio function is using two CAT5E/6 cables to extend your DVI display up to 50 meters from your HDTV DVI or HDMI source. DVI transmitter with 2 output, one is DVI loop output and the other is RJ45 CAT5 cable output for remote display. Under non-HDCP operation mode, the application could be 1 input to 2 output distribution. Both of output built in signal boost function, the working resolution up to 1920 x 1200.
Features:
- Extends any DVI compliant device over two CAT5E/6 cables. One CAT5E cable to send DVI video signal, the other one send DDC and audio signal.
- Extend the transmission distance up to 50 meters at 1920 x 1200.
- Extend the transmission distance up to 70 meters at 1024 x 768.
- Support analog stereo audio: 20Hz – 20KHz.
- Dual output: 1 x DVI loop output for local, plus 1 x CAT5 RJ45 output for remote side.
- Built in equalization and signal boost function.
- High quality digital video over CAT5e without any signal loss.
- Support DDC, EDID and hot plug detection.
| ITEM NO. |
DE01T |
DE01R |
| Video Amplifier Bandwidth |
2.25 Gpbs |
|
| Resolution |
Up to 1920 x 1200 |
|
|
Link Cable Distance |
CAT.5e 50M@1920 x 1080，60Hz |
|
| DVI Cable Distance |
28 AWG DVI Cables 6M @1920 x 1080，60Hz |
|
| DVI Connector | DVI-I x 2 (29 Pin) Digital Only | DVI-I x 1 (29 Pin) Digital Only |
| Stereo Audio Connector |
3.5mm Phone Jack x 2 |
3.5mm Phone Jack x 1 |
| Link Connector |
RJ45 x 2 |
RJ45 x 2 |
| Power Supply |
5V DC 2Amp Regulated (External) |
|
| Power Consumption |
1200mA (Max) |
350mA (Max) |
| Temperature |
Operation: 0 to 55ºC, Storage: -20 to 85ºC, Humidity: up to 95% |
|
| Dimensions mm |
125 x 110 x 30 |
88 x 95 x30 |
| Weight g |
310 |
200 |
