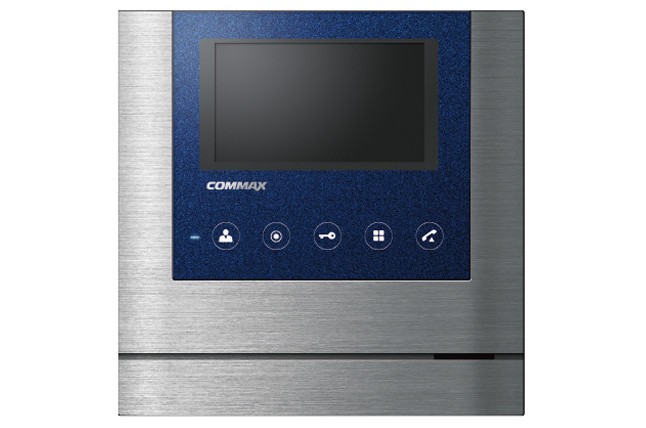

Model CDV-43M

COMMAX VIDEOPHONE provides vivid video quality through the COMMAX’s independent ‘FINE VIEW’ technology.

Features

• Titanium Metal Design: The rigidity and elegance of the soft metal make the design of the luxurious interior unchanged over time
• LED backlights / high sensitive MIC: LED back light and high sensitivity MIC applied to smart phone provide brighter and clearer screen and sound quality
• Blue light touch button: Sensational icons in metal design are harmonized with the captivating shimmered blue-colored light of the soft touch

Function

• 4.3 inch TFT LCD screen
• Video talk and door lock release enable
• Support the connection of 2 door cameras and 1 interphone
• PAL/NTSC convertible

Specification

• Power Source: AC 100~240V, 50/60Hz
• Display: 4.3 inch LED Display
• Mount type: Surface-Mounted
• Operating Temperature: 0ºC ~ 40ºC
• Wiring: 4-wires to door camera (polarity), 4-wires to interphone(polarity)
• Transmission distance: 28m(Ø0.5mm), 50m(Ø0.65mm), 70m(Ø0.8mm)
• Dimension(mm) 180(W) x 180(H)x 28(D)
