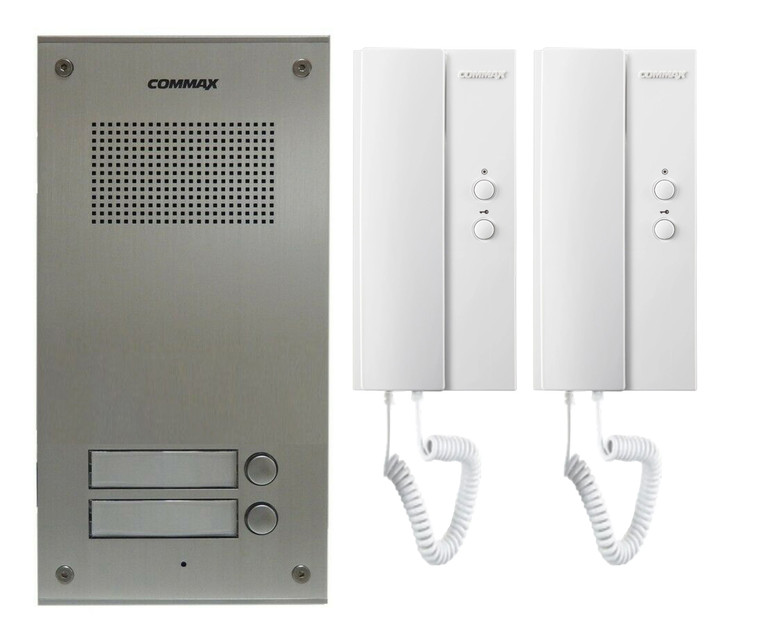

Commax Audio Intercom for 2-Apartment Building

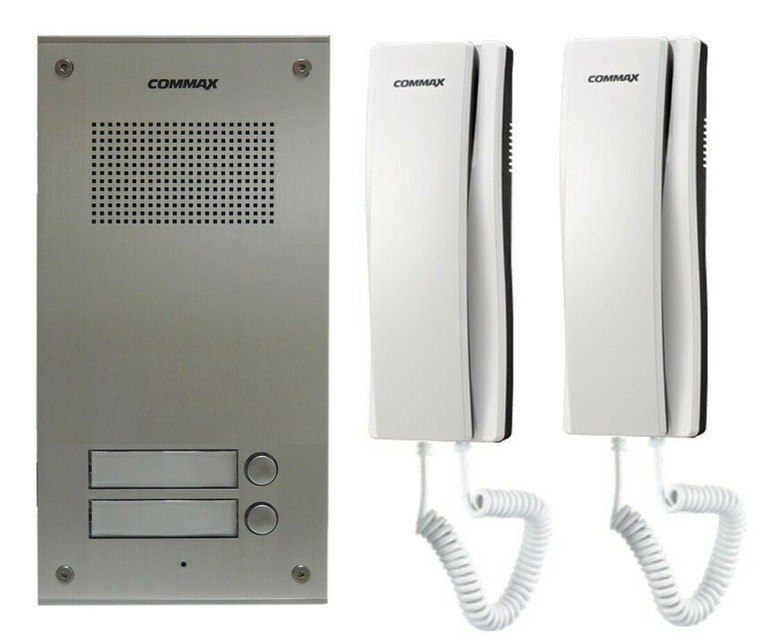

COMMAX INTERCOM SYSTEM FOR 2 APARTMENT BUILDING

1x 2-BUTTONS AUDIO DOOR STATION DR-2UM

2 X HANDSET AUDIO PHONES DP-SS

1x AC100~240V to DC 12V POWER ADAPTER

DR-2UM: 2 Buttons Audio Intercom Panel. Door Entrance Unit.

COMMAX Door Station compatible with various systems provides you better efficiency to the system and guarantee more secure an comfortable life.

Features:

• Function: Call residential station for up to 2 residential stations/ name card.
• House call & Talk
• Connectable product: DP-KSS, DP-SS, DP-ML
• Material: Aluminum panel/ Flush mount type
• Wiring: Common 3 wires, Individual 1 wire per Unit.
• Power Source: DC 12V
• Dimension (mm): 130(W) x 250(H) x 10(D)

DP-SS: Audio Handset. In-house unit

Features and Functions:

• Product for multiple house/apartment intercom system.
• Simple design and functions
• Talk with common entry station (Door Unit/Door Release/ Chime Sound)

Specifications:

• Power Source: DC12V
• Mounting type: Surface mounted type
• Wiring: 4 wires to door station, 2 wires to electric door strike
• Dimension with handset: 70x210x80mm
• Distance: 100m (0.65Φ standard)
• Temperature: 0(℃)~50(℃)

DC 12V Power Adapter for the Door Station.

• Power Source: AC100V ~ 240V, 50/60Hz
• Output Power: 12V, 1.5A

Connection Diagram Example:
