COMMAX INTERCOM SYSTEM FOR 8 APARTMENT UNIT

1x 8-BUTTONS  AUDIO DOOR STATION DR-8UM

8 x HANDSET AUDIO PHONES DP-SS

1x DC 12V POWER ADAPTER

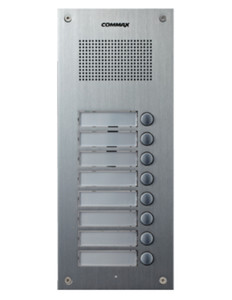

DR-8UM: 8-Buttons Audio Intercom Panel.

Door Entrance Unit.

COMMAX Door Station compatible with various systems provides you better efficiency to the system and guarantee more secure an comfortable life.

Features:

• Function: Call residential station for up to 8 residential stations/ name card.
• House call & Talk
• Connectable product: DP-KSS, DP-SS, DP-ML
• Material: Aluminum panel/ Flush mount type
• Wiring: Common 3 wires, Individual 1 wire per Unit.
• Power Source: DC 12V
• Dimension (mm): 130(W) x 315(H) x 10(D)
• Fillupbox size (mm): 122(W) x 305(H) x 37(D)
• Installation hole size (mm): 110(W) x 284(H)

DP-SS: Audio Handset. In-house unit

Features and Functions:

• Product for multiple house/apartment intercom system.
• Simple design and functions
• Talk with common entry station (Door Unit/Door Release/ Chime Sound)
• Connect up to 3 handsets per apartment.

Specifications:

• Power Source: DC12V
• Mounting type: Surface mounted type
• Wiring: 4 wires
• Dimension with handset: 70x210x80mm
• Distance: 100m (0.65Φ standard)
• Temperature: 0(℃)~50(℃)

DC 12V Power Adapter for the Door Station.

• Power Source: 110V~240V
• Output Power: 12V, 1.5A
• Electrical plug of two blades prong, US Type A

Connection Diagram Example for Illustration Purpose:
