Commax 12 Stations Interphone System Set with Power Supply

Commax 12 Stations Interphone System Set with Power Supply

Commax
SKU:
TP-12RC/RF-12015S
$600.00
(No reviews yet)
Weight:
24.00 LBS
Fixed Shipping Cost:
$15.00
Current Stock:
Adding to cart… The item has been added
Description

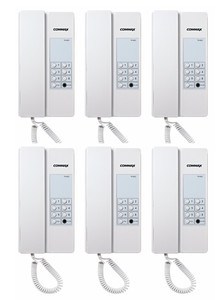

Commax 12 Stations Common talk Interphone /Paging System Set

Set includes:

TP-12RC x 12 units

RF-12015S x 2 units

Interphone TP-12RC

FEATURES:

  • Calling and paging

  • Variable system composition up to 12 units of TP-12RC

  • ID setting enabled with dip switch

  • Effective calling to all units by paging function

  • Door lock release (optional)

  • Optional: Possible to use door phone by enabling door bell DR-DW2N connection.  The DR-WD2N is a door station unit of TP-12RC interphone system and electric door strike can be used with this doorphone system.

  • Optional: External Paging Speaker - a built-in amplifier in each interphone station permits the addition of an external speaker to any station located in an area where ambient sound level may interfere with the ability to hear paging announcement and the call tone.



SPECIFICATIONS

  • Power Source: DC12V, 200 mA (RF-12015S)
  • Wiring: Common 4 wires
  • Mount type: Surface-mounted type
  • Distance: 500 m (0.65Ø)
  • Dimension (mm): 116 (W) x 208 (H) x 43 (65) (D)








RF-12015S Power Adapter

Specifications

  • Power Source: AC110V~240V
  • Input Frequency: 50-60Hz
  • Output Voltage: DC12V
  • Load Current: 1.5A
  • Type A plug (Two Flat Parallel Prongs)

Wiring Diagram







Connectable product
Door unit


DR-DW2N



Also sold individually




TP-12RC
