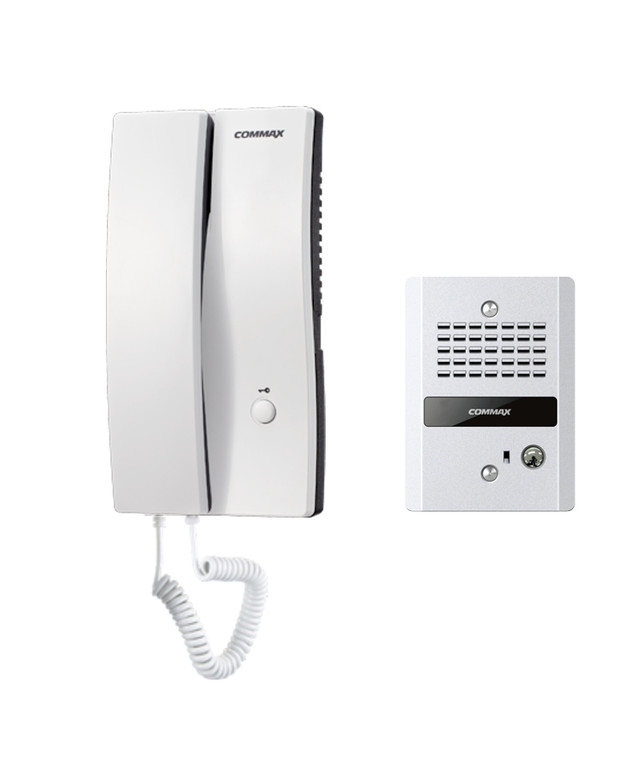

DP-2S/DR-2GN

Commax 1-to-1 Audio Interphone with Vandal-Proof Door Bell DP2S/DR2GN

Commax
SKU:
DP-2S/DR-2GN
$99.95
(No reviews yet)
Weight:
5.00 LBS
Width:
10.00 (in)
Height:
8.00 (in)
Depth:
6.00 (in)
Fixed Shipping Cost:
$10.00
Current Stock:
Adding to cart… The item has been added
Description




Audio Interphone with Vandal-proof Door Unit
AC110V
Model: DP-2S/DR-2GN

Kit includes:
  • Doorphone DP-2S x 1
  • Door unit DR-2GN  x 1
Wiring Diagram



Door phone DP-2S

Features
    • 2 wires with non-polarity
    • User friendly handset design with convenient hand grip
Function
    • Talk with a visitor
    • Door lock release
Specifications
  • Power Source: AC 110V, 60Hz only
  • Electrical plug: US type A, 2 blade prongs
  • Wiring:  Call: 2 wires / Door Release: 2 wires (1.6Ø Copper Wire)
  • Dimensions (mm): 108 (W) x 210 (H) x 33 (61)(D)
  • Mount type: Surface-mounted type
  • Distance: 100m (0.65Ø) 150m (0.8Ø)

Installation



Door Unit DR-2GN


Features
    • Vandal Proof (not waterproof)
    • House call and talk
    • 2-wire entrance panel

Specifications
  • Power Source: 9V (from DP-2S)
  • Mount Type: Surface-mounted type
  • Wiring: 2 wires
  • Operation Temperature: -10ºC ~ +40ºC
  • Dimensions (mm):93.5 (W) x 126 (H) x 18(D)
  • Weight (g): 170
  • Communication Distance: 50 meters/Ø0.8



Installation
