CHB001H CCTV NTSC Video High-Frequency Interference Filter Kit (Transmitter & Receiver)
$129.95
(No reviews yet)
Write a Review
CHB001H CCTV NTSC Video High-Frequency Interference Filter Kit (Transmitter & Receiver)
CCTV NTSC Video Hi-Frequency Interference Filter
Model: CHB001H
(CHB001HT Transmitter + CHB001HR Receiver)
Product Overview:
CHB001H special design to filter the interference from electromagnetic wave, high voltage electricity, wireless station, elevators, heavy power on industry, ...etc.
Features:
l Perfect to filter Hi-Frequency Interference.
l Video & Audio over one Coax Cable.
l Working distance:400 meters (RG59), 600 meters (RG6U).
l CHB001HT Transmitter built in power output for camera use.
l CHB001HR Receiver built in video gain control.
l S/N Ratio on video signal: 42dB, S/N Ratio on audio signal: 40dB.
l Package include transmitter and receiver, two power adapter.

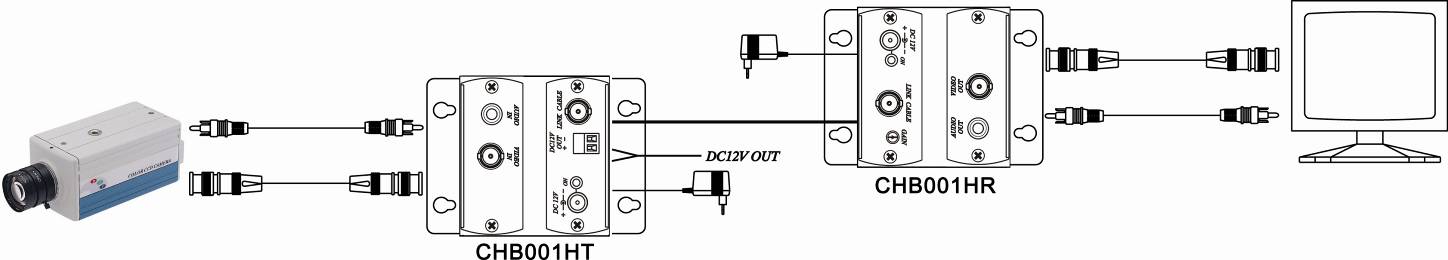

Installation View:
Panel View:

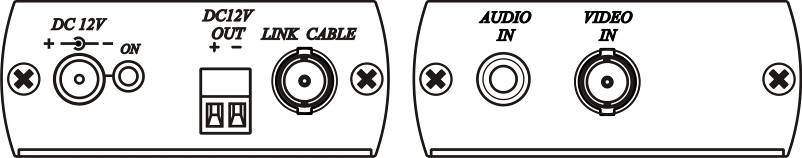

CHB001HT

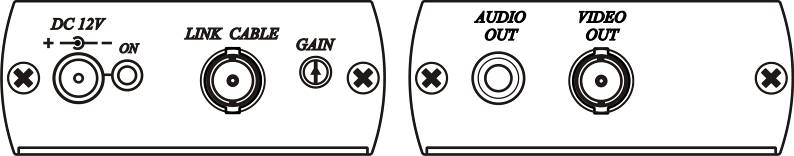

CHB001HR
Video gain adjustment: Turn to right for boost the video signal, turn to left for lower value signal.
Specification:
|
ITEM NO. |
CHB001HT |
CHB001HR |
|
Video Input / Output |
BNC x 2 (75 Ω，1 Vp-p) |
|
|
Audio Input / Output |
RCA x 1 (10KΩ，1 Vp-p) |
|
|
Working Range |
450 meters for RG59 CABLE, 600meters for RG6U cable |
|
|
Power Consumption |
200mA |
100mA |
|
Power Supply |
DC 12V 500mA |
|
|
Power Output to Camera Use |
300mA (Max.) PS: If change to bigger power supply, the max. power output to camera could be up to 1 Amp. |
X |
|
Dimensions mm |
67 x 91.5 x 27 |
67 x 102.5 x 27 |
|
Weight g |
150 |
165 |

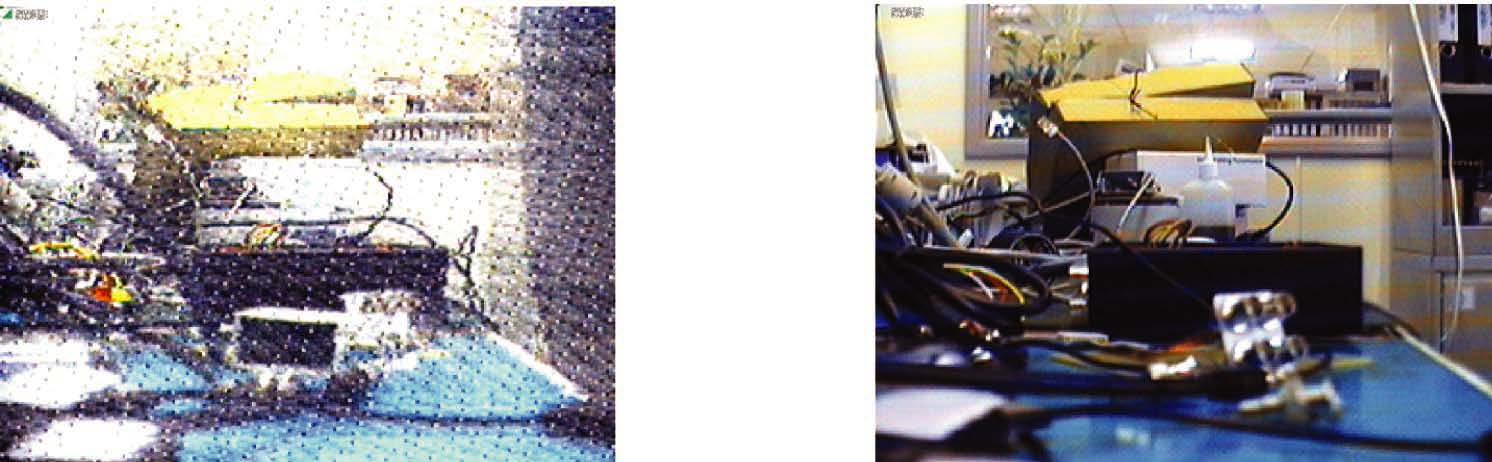

Before Use After Use
One Year replacement warranty.
