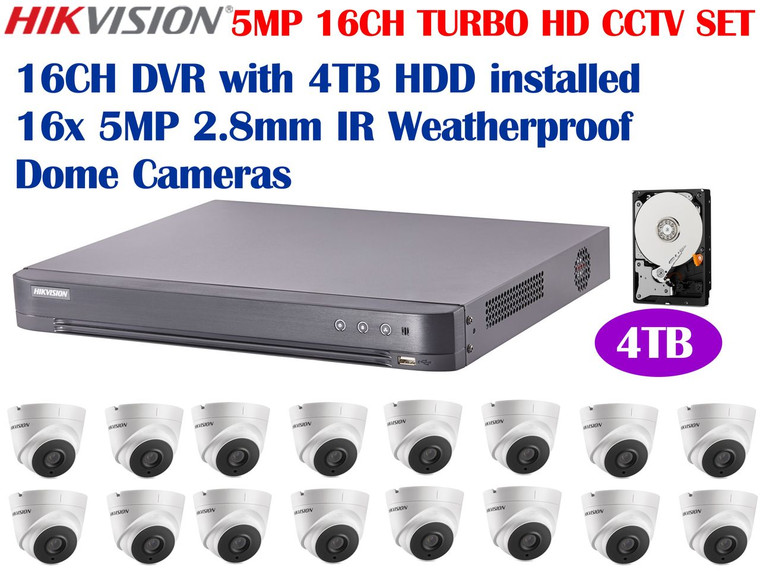

5MP 16CH TURBO HD CCTV BUNDLE

Hikvision 5MP 16CH CCTV SYSTEM: 16CH DVR +4TB HDD + 16x 5MP 2IR WEATHERPROOF 2.8mm DOME CAMERAS

Hikvision
SKU:
5MP16CH4TB16DO
$1,600.00
(No reviews yet)
Weight:
38.00 LBS
Width:
21.00 (in)
Height:
21.00 (in)
Depth:
16.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

Hikvision Bundle 16ch DVR with 16 cameras includes:


  • 1x 16CH DVR DS-7216HUHI-K2
  • 1 x 4TB Surveillance Grade HDD Installed
  • 16x 5MP EXIR TURRET CAMERA with 2.8mm Fixed lens DS-2CE56H0T-IT3F



Specifications

HIKVISION 16 CHANNEL TURBO HD H.265PRO+ DVR + 8 CH 6MP IP CAMERAS
8MP HD-TVI/ 4MP AHD/ 2MP HD-CVI /ANALOG CAMERAS

Model: DS-7216HUHI-K2

Features and Functions

1. Video Input and Transmission
  • Self-adaptive HD-TVI/ HD-CVI/AHD/NTSC/PAL signal input
  • Additional 8CH up to 6MP IP cameras input
  • 8MP/5MP/4MP HDTVI video input and live view
  • Defogging function enabled for the supported analog cameras
  • Long distance transmission over UTP and coaxial cable: max. 1200 meters for 720p and max. 800 meters for 1080p HD-TVI signal
2. Compression and Recording
  • H.265PRO+/H.265PRO/H.264+/H.264 encoding for the main stream and H.265/H.264 encoding for the sub-stream of analog cameras
  • Compatible with H.265+/H.265/H.264+/H.264 IP cameras
  • H.265+ can be enabled to Improve Video Compression Efficiency and reduce data storage costs
  • ALL Analog Channels recording up to 8MP TVI Resolution
3. Video Output
  • Simultaneous HDMI/ VGA output
  • HDMI output at up to 4K (3840 X 2160) resolution
  • Dedicated NTSC/PAL Video Output
4. Storage and Playback
  • Two SATA interfaces (up to 8TB capacity per HDD) [HDD sold separately]
  • 16-ch synchronous playback
  • Supports the 3rd party cloud storage (Dropbox/Google Drive/ Microsoft OneDrive)
5. Smart Function
  • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
  • VCA information overlay in live view and smart playback
  • VQD (Video Quality Diagnostics)
  • Supports PTZ control via Omnicast VMS of Genetec protocol
6. Network & Ethernet Access
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • 1x RJ45 10/M/100M/1000M self-adaptive Ethernet interface
  • Output bandwidth limit configurable
Specifications

MODEL

DS-7216HUHI-K2

VIDEO / AUDIO INPUT

Video Compression

H.265PRO+/H.265PRO/H.264+/H.264

Analog video input

16 CH

BNC Interface (1.0 Vp-p, 75Ω), supporting coaxitron connection

HDTVI input

8MP, 5MP, 4MP, 3MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

AHD input

4MP, 3MP, 1080p25, 1080p30, 720p25, 720p30

HD-CVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC

IP Video Input

8-ch up to 6MP resolution

Supports H.265+/H.265/H.264+/H.264 IP cameras

Audio Compression

G.711u

Audio Input

 4-CH, RCA (2.0 Vp-p, 1 kΩ)

VIDEO/ AUDIO OUTPUT

CVBS Output

1 CH, BNC (1.0 Vp-p, 75Ω),

Resolution: PAL: 704 x 576, NTSC: 704 x 480

HDMI/ VGA Output

HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz



VGA: 1-ch,  1920 x 1080/60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz



Encoding Resolution

8MP / 5MP/ 4MP/ 3MP/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF

Frame Rate

Main stream:

· 8MP@8fps/ 5MP@12fps/ 4MP@15fps/ 3MP @ 18fps

· 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/ 30fps (N)

Sub stream: WD1/4CIF/CIF@25fps (P)/ 30fps (N)

Video bit rate

32 Kbps to 10 Mbps

Audio Output

1-ch, RCA (Linear, 1kΩ)

Audio bit rate

64 Kbps

Dual Stream

Support

Stream Type

Video, Video & Audio

Synchronous Playback

16-ch

NETWORK MANAGEMENT

Remote Connections

128

Network Protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF

HARD DISK

SATA

2 SATA interfaces

Capacity

Up to 8TB capacity for each disk

EXTERNAL INTERFACE

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)  (using the 1st audio input)

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet interface

USB Interface

Front panel 1 x USB 2.0

Rear panel 1 x USB 3.0

Serial Interface

RS-485 (half-duplex)

Alarm In/Out

16/4

GENERAL

Power Supply

12 VDC

Consumption (without hard disk)

≤ 25 W

Working temperature

-10°C ~ 55°C (14°F ~ 131°F)

Working humidity

10% ~ 90%

Dimensions (W x D x H)

380 x 320 x 48 mm (15 x 12.6 x 1.9 in)

Weight (without hard disk)

< 2 kg (4.4 lb)



Model: DS-2CE56H0T-IT3F (2.8mm)

5 MP TURBO HD EXIR TURRET CAMERA with 2.8mm Fixed lens


Key Features
  • 5 Megapixel high-performance CMOS
  • 2560 x 1944 resolution
  • True Day/Night
  • OSD menu, DNR, Smart IR
  • EXIR 2.0, smart IR, up to 40m IR distance
  • IP67 weatherproof
  • 2.8mm fixed lens
  • Up the Coax (HIKVISION-C)

Specifications

Camera

Image Sensor

5MP CMOS Image Sensor

Resolution

2560 (H) x 1944 (V)

Minimum Illumination

Color: 0.01 Lux @ F1.2, AGC ON, 0 Lux with IR

Shutter time

PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s

Lens

2.8 mm

Horizontal Field of View

85.5º

Lens Mount

M12

Day & Night

ICR

Angle Adjustment

Pan: 0 - 360°, Tilt: 0 - 75°,  Rotate: 0 - 360°

Synchronization

Internal synchronization

Video Frame Rate

PAL: 5MP@20fps, 4MP@25fps, 1080@25fps

NTSC: 5MP@20fps, 4MP@30fps, 1080@30fps

HD Video Output

1 HD analog output

Switch Button

TVI/ AHD/ CVI/ CVBS

General

Operating Conditions

-40°C - 60°C (-40°F - 140°F), Humidity 90% or less (non-condensing)

Power supply

12 VDC ± 30%

Power Consumption

Max. 4.3 W

Protection Level

IP67

IR Range

Up to 40m

Material

Enclosure: Plastic

Main Body: Metal

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions

 Ø110 x 93.2 mm (Ø4.33” x 3.67”)

Weight

350 g (0.77 lbs)

Menu



AGC

Support

D/N Mode

Auto/ Color/ Black and White

White Balance

ATW/MWB

BLC

Support

Language

English

Functions

Brightness, Sharpness, Digital Noise Reduction, Mirror, Smart IR

Dimensions
