CIR-UR34FGC Weatherproof Series 650TVL IR 2.8-11mm Varifocal Camera
Sale

CIR-UR34FGC Weatherproof Series 650TVL IR 2.8-11mm Varifocal Camera

$159.00 $99.50
$174.99
(You save $75.49 )
(No reviews yet)
Weight:
3.00 LBS
Width:
12.00 (in)
Height:
6.00 (in)
Depth:
6.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

Weather Proof 650TVL IR Bullet Camera with 80 leds 2.8-11mm Auto Iris Len

CIR-UR34FGC

Features

  • 650TVL, 1/3" 960H Color Sony CCD
  • 2.8-11mm Varifocal Auto iris IR Lens
  • Removable IR Cut Filter (ICR)
  • 80 Pieces IR LED ON
  • IR Effect Distance 20~25m Outdoor
  • IP66

Specifications

IP rating IP66
Type Colour/Monochrome Removable   IR Cut Filter
Signal   System NTSC/PAL
Pick Up   Device 1/3" 960H   Color Sony CCD
Picture   Elements NTSC:1020(H)×508(V)   PAL:1020(H)×596(V)
Resolution 650TVL
Min   Illumination 0Lux（80 Pieces IR LED ON）
Vertical   Frequency NTSC:60Hz; PAL:50Hz
Horizontal   Frequency NTSC:15.734KHz; PAL:15.625KHz
Clock   Frequency NTSC/PAL:28.36MHz
Scanning   System 2:1 Interlace
S/N   Ratio ≥52dB
Electronic   Shutter NTSC:1/60-1/100,000s;   PAL:1/50-1/100,000s
Lens 2.8-11mm Varifocal Auto Iris IR   Lens
White   Balance ATW
Back   Light OFF
Auto   Gain Control ON
GAMMA 0.45
Video   Out-put 1V p-p,75Ω
Power   Supply DC12V ±10%
Current   Consumption 650mA(Max)
IR   Effect Distance 20~25M （65.6~ 82ft）(Outdoor)
Dimension 325×196×124mm   (12.80”×7.72”×4.88”)
Weight 1920g (67.72oz)
Storage   Temperature -30 ~ + 60ºC   (-22~+140°F)
Operating   Temperature -30 ~ + 40ºC   (-22~+104°F)

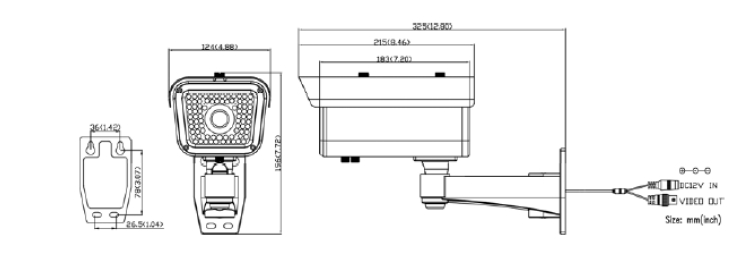

Diagram
