TPP016HD 16 Port HD Video Transceiver in 1U Rack for HD-CVI,HD-TVI, AHD

TPP016HD 16 PORT HD PASSIVE VIDEO TRANSCEIVER IN 1U RACK MOUNTING PANEL

FOR HD-CVI/HD-TVI/AHD

FEATURES:

• Built in 16 port passive HD video transceiver in 1U 19" rack mounting panel.
• Choice of 4 x RJ45 or 4 sets x 8 pin removable screw terminal for 16 channel inputs/outputs.
• To send HD-CVI, AHD signal up to 300M over UTP cable.
• To send HD-TVI signal up to 200M over UTP cable.
• Passive, NO power required.
• Eliminate Coaxial Cable.
• To work with Active Transmitter TTA111HDT, TTA111TVIT for extra long distance transmission.
• Built in ESD, EFT (Impulse noise) and transient protection.

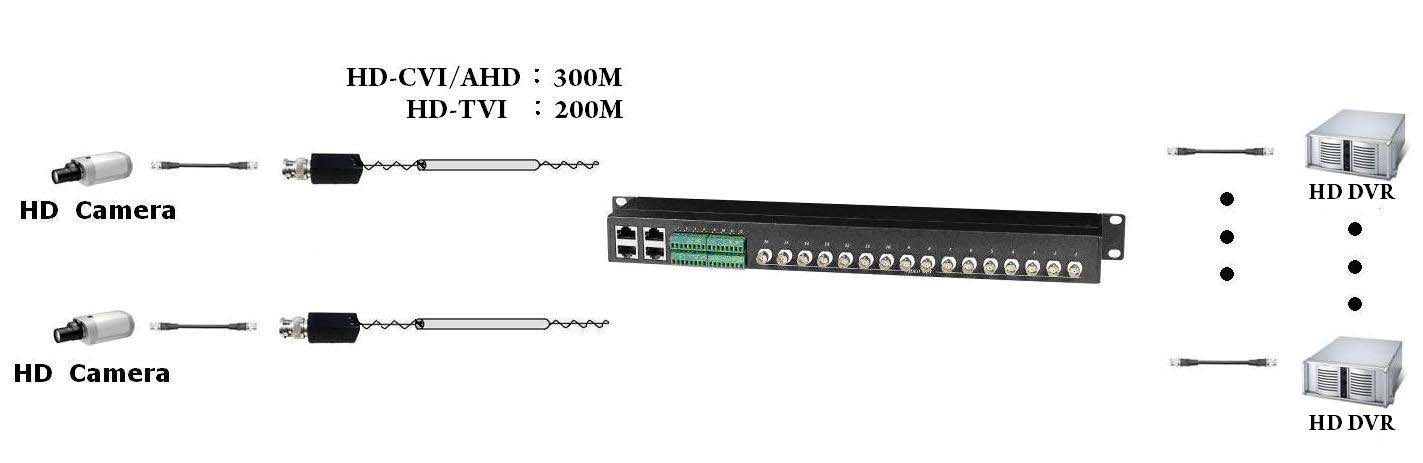

INSTALLATION:

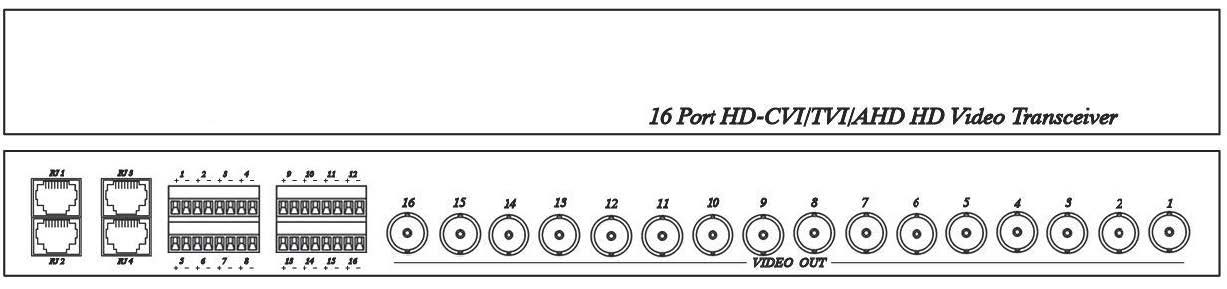

PANEL VIEW:

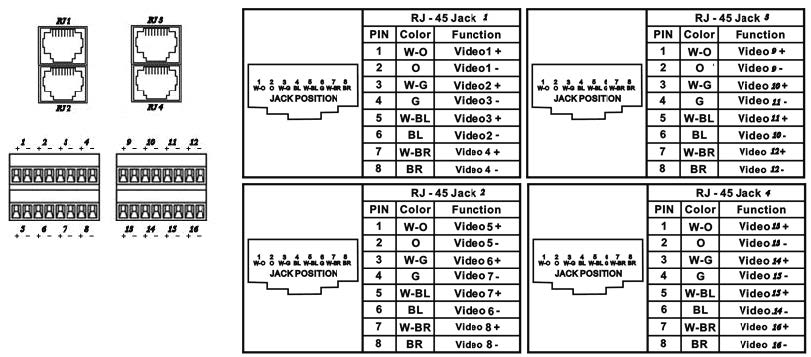

RJ-45 JACK PIN DEFINE:

NOTE: These devices is reversible, BNCconnector = RJ45

This installation should be made by a qualified service person and should conform to all local codes.

RECOMMEND CABLE:

Use high qualify CAT5e UTP or CAT6 UTP cable. The max working distance is 300M. The distance may effected by the quality of cable, camera, DVR.

CAUTION:

1. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage.

2. Must use same video format camera to avoid any interference.

SPECIFICATION:
