RS008 RS485 Serial Data Distributor 1 Input 8 output

RS008 RS485 Serial Data Distributor 1 Input 8 output

$209.00
$249.95
(You save $40.95 )
(No reviews yet)
Fixed Shipping Cost:
$10.00
Current Stock:
Description

RS008

RS485 Serial Data Distributor 1 Input 8 Output In 1U Rack Mounting Panel

Specifications

RS008 is serial data distributor and similar to a repeaters, gives serial data back on 8outputs at the same time, allowing perfect configurations. The transmission in RS485 and takes places at the same time on all 8 outputs. The receiving mode of the input can be selected in RS485 or RS232.

Features

  • Input option: 1 x RS232, 2 x RS485 (3 input can be “stand by” status at the same time, but only one controller will be activated at once)
  • Output: 8xRS485, each channel connection range up to 1200 meters by twisted pair cable.
  • Built in surge protection at each channel.
  • Each input/output is isolated.

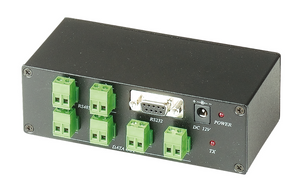

  • Ability to cascade connection to other units RS004/RS008/RS016.
  • The application gives serial data back on 4 outputs at the same time, to provide perfect configurations.
  • Power supply included.

RS008

DATA Input

RS232 / RS485  (Terminal Block)

Data Output Port

8 Port  (Terminal Block)

Data Output Signal

RS485

Power Supply

12 VDC

Power Consumption

350mA

Operating Temperature

0 ～45°C

Dimension     W x H x D mm

482x100X44 (1U)

Weight                  g

1050

Material

Metal Black
