MXT 3D 4Kx2K HDMI Splitter 1x2

MXT
SKU:
HDS12
Availability:
In-stock, ships same day when ordered before 2pm EST.
$37.95
(No reviews yet)
Weight:
0.80 LBS
Width:
6.00 (in)
Height:
4.00 (in)
Depth:
4.00 (in)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

3D 4Kx2K HDMI Splitter 1-to-2

Distribute one HDMI source to 2 HDMI displays simultaneously

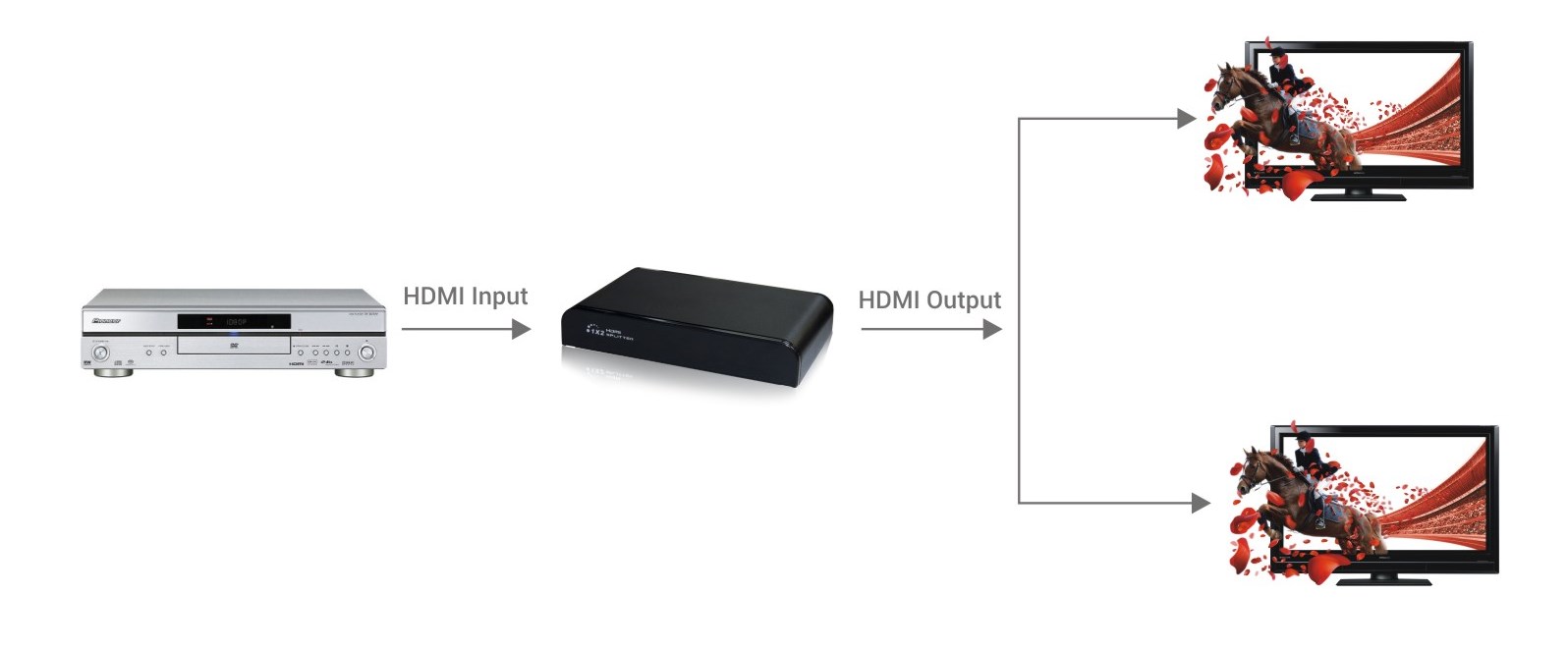

HDS12 connection view





Model: HDS12

Features:

  • HDMI Splitter Function: Simultaneously displays one Ultra Hi-Def source to 2 Ultra HD displays
  • Supports ULTRA HD resolution HD 4Kx2K (3840 x 2160 @ 30Hz) and 1080p Full HD
  • Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Support HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution
  • 3DTV pass-through
  • Power supply included

Specifications
Model HDS12
Input port HDMI x1
Output ports HDMI x2
Frequency range 25MHz-340MHz
Color depth Support 12-bit deep Full HD, 3D, 4Kx2K
Audio LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
HDMI INPUT
HDCP Compliance Yes
HDMI Resolution Support 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1080p@24Hz 3D, 720p@50/60Hz 3D, 4Kx2K
HDMI Graphic Resolution Support 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz,, 1600x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz
Color Format Support 24-bits/ Deep color 30bits/ Deep color 36-bits
Max. Data Rate 10.2 Gbps
TMDS Signal 0.5 ~ 1.5Vp-p (TMDS)
DDC signal 5Vp-p (TTL)
Lenght of HDMI cable
  • less than 15m (AWG26 standard HDMI cable)
  • to reach 4Kx2K cable must be shorter than 5 meters/15 feet
HDMI OUTPUT
HDCP Compliance Yes
HDMI Resolution Support 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1080p@24Hz 3D, 720p@50/60Hz 3D, 4Kx2K
HDMI Graphic Resolution Support 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz,, 1600x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz
Color Format Support 24-bits/ Deep color 30bits/ Deep color 36-bits
Max. Data Rate 10.2 Gbps
TMDS Signal 0.5 ~ 1.5Vp-p (TMDS)
DDC signal 5Vp-p (TTL)
Lenght of HDMI cable
  • less than 15m (AWG26 standard HDMI cable)
  • to reach 4Kx2K cable must be shorter than 5 meters/15 feet
Protection Type
ESD Protection

1a Socketed discharge: Level 3

1b Air discharge: Level 3

Executive standard: IEC610004-2
Operating Environment
Operation Temperature -10ºC ~ 55ºC
Storage Temperature -20ºC ~ 70ºC

Relative Humidity

 0 ~ 95% (non-condensing)
General
Dimensions (mm) 96 (L) x 59 (W) x 17 (H)
Material  Aluminum alloy
Color  Black
Weight 98 g
Reliability MTBF: >30000 hours




Packing list



Additional Information
Type:
HDMI splitter
HDMI input port:
1
HDMI output ports:
2
Video resolution:
HD 4Kx2K (3840 x 2160 @ 30Hz) and 1080p Full HD
