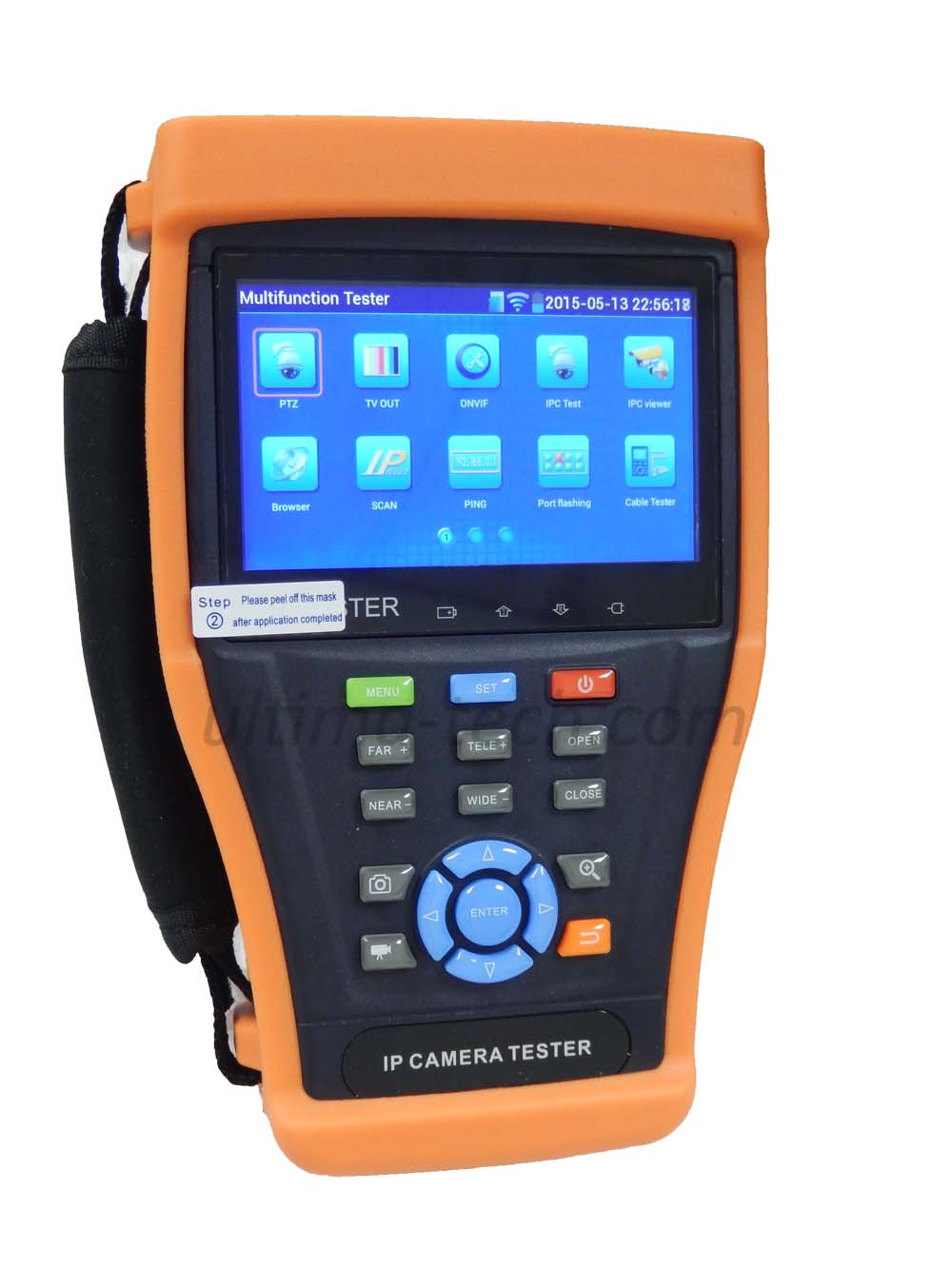

| Model | IPT43P |
| Display | 4.3 inch Capacitive touch screen , resolution 800(RGB)x 480 |
| Network port | 10/100M auto adapt,RJ45 |
| WIFI | Built in WIFI,speeds150M,display wireless camera image |
| IP camera type | ONVIF,ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,Aipu-waton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080Q,WEISKY IPC camera etc. |
| Video Signal test | 1 channel Video IN BNC input,1 channel Video OUT BNC output,support PAL/NTSC |
| Zoom Image | Support Analog camera and IP camera image zoom /move |
| Snapshot,Video record and playback | Image Screen snapshot, record ,save ,view and record and play back |
| HDMI output | 1 channel HDMI output,support 1920*1080P |
| PoE power output | 48V PoE power output,Max power 24W |
| 12V/2Apower output | Output DC12V/2A power for camera |
| USB5V power output | 5V 2A power output as a Power bank |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| PTZ control | Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| CCTV Test Patern | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| Network test | IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |
| PoE/PSE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| Power | |
| External power supply | DC 12V(2A) |
| Battery | Built-in 7.4V Lithium polymer battery , 5000mAh |
| Rechargeable | After charging 7~8 hours, normal working time 16 hours |
| Parameter | |
| Operation setting | Capacitive touch screen, OSD menu,Chinese/English |
| Auto off | 5-30 (mins) |
| General | |
| Working Temperature | -10 ⁰C to 50 ⁰C |
| Working Humidity | 30%-90% |
| Dimension/Weight | 212mm×135.5mm×56.5mm / 0.75Kg |
