CD816HD HD CCTV Video Distributor 8 BNC Input to 16 BNC output in 1U Rack Mounting

CD816HD HD CCTV Video Distributor 8 BNC Input to 16 BNC output in 1U Rack Mounting

MS
SKU:
CD816HD
$229.00
(No reviews yet)
Weight:
6.00 LBS
Width:
25.00 (in)
Height:
8.00 (in)
Depth:
6.00 (in)
Fixed Shipping Cost:
$15.99
Current Stock:
Adding to cart… The item has been added
Description

HC CCTV VIDEO DISTRIBUTOR FOR HD TVI/AHD/HDCVI IN 1U RACK MOUNTING PANEL

8 BNC INPUT TO 16 BNC OUTPUT

Model: CD816HD



 Features:

  • Support HD-TVI/AHD/HDCVI, 960H, NTSC, PAL video signal
  • 8 BNC video input to 16 BNC video output
  • Built in blue LED for video signal on/off detection
  • Input cable distance: 720p 500m/1500ft (Max), 1080p 200m/600ft (Max)
  • Output cable distance: 100m/300ft (Max)
  • Video input, output, power output built in TVS protection
  • Power input support: 9-24V DC

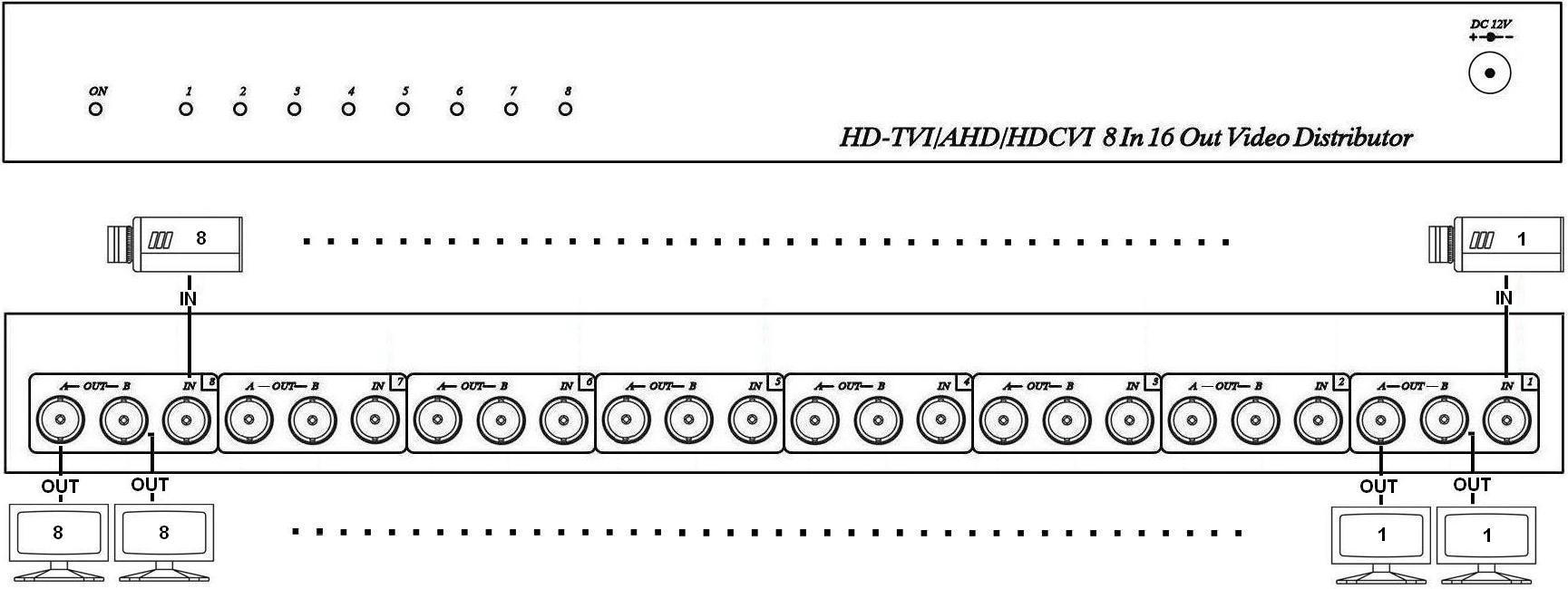

Product view:




 Product Specifications:



ITEM NO.

CD816HD

Video Input Channel

BNC x 8, 75Ω, 1Vpp

Video Output Channel

BNC x 16, 75Ω, 1Vpp

LED Indication

1 Power LED (GREEN), 8 Signal LED (BLUE)

Video Bandwidth

100MHz 0.1dB Gain Flatness

Power Supply

DC12V 1A

Power Consumption

350mA

Temperature

Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimensions   mm

483 x 105.5 x 44

Weight        g

1350



Cable & Transmission Distance:

Link cable recommend use high quality 75ohm coaxial RG59/RG6U cable. The transmission distance will be affected by different quality of camera, DVR, and BNC connector, cable, installation, etc.
