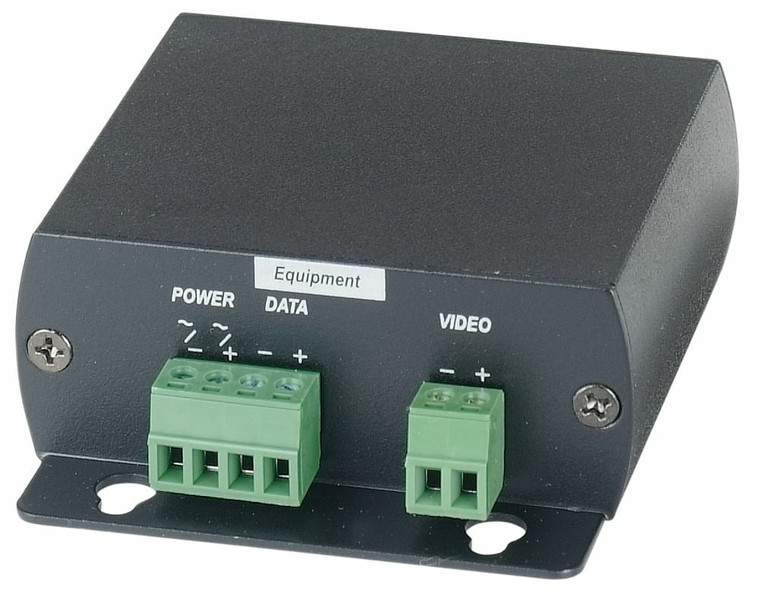

CCTV Twisted Pair Video, Power and Data Surge Protector With Terminal Connector
Model: SP004VPD
UTP Video, Power and Data Surge Protector Perfect for PTZ Camera Protection
Product Overview:
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
SP004VPD UTP Video, Power, Data Surge Protection
Installation View:
Specification:
ITEM NO. |
SP004VPD |
Surge Protection Attack Time |
1 ns |
Maximum Surge Voltage |
4 KV |
Surge Life |
300 surges of 100Amps |
Normal Resistance Across Coax |
10,000 MΩ |
Surge Resistance |
Approx. 0Ω |
BAND PASS |
0~1 GHZ |
Power Passing Capability |
130V AC / DC, 65 Vrms at10 Amps |
Insertion Loss |
Less than 0.2 dB |
Return Loss (75 ohms) |
16dB |
Power IN Put – for SP004VPD |
AC 40V(MAX), DC56V(MAX) |
Connectors |
Terminal |
Dimensions W x H x D mm |
87x67x27 |
WEIGHT g |
136 |
