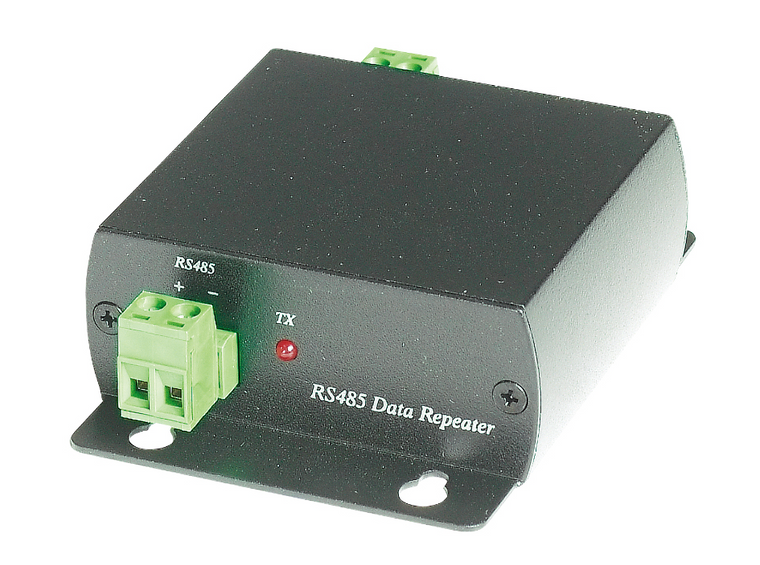

The RS001R is designed to extend the RS485 beyond the 1200 meters limitation, or whenever there is a need to “boost” the RS485 signal. It could works 32 multi-drop RS-485 LAN configuration. In a half-duplex multi-drop environment all RS-485 nodes share the same data lines. A single pair of data lines act as both transmit and receive wires.
ITEM NO. | RS001R |
DATA Input | RS485 (Terminal Block) |
DC Input Voltage | +10 ~20V |
Power Supply | DC12V |
Power Consumption | 350mA |
Temperature | Operation: 0 to 55°C, Storage: -20 TO 85°C, Humidity: up to 95% |
Dimension | 88 x67 x 27.5 mm |
Weight | 120g |
Material | Metal Black |
