Features
Specifications
Model |

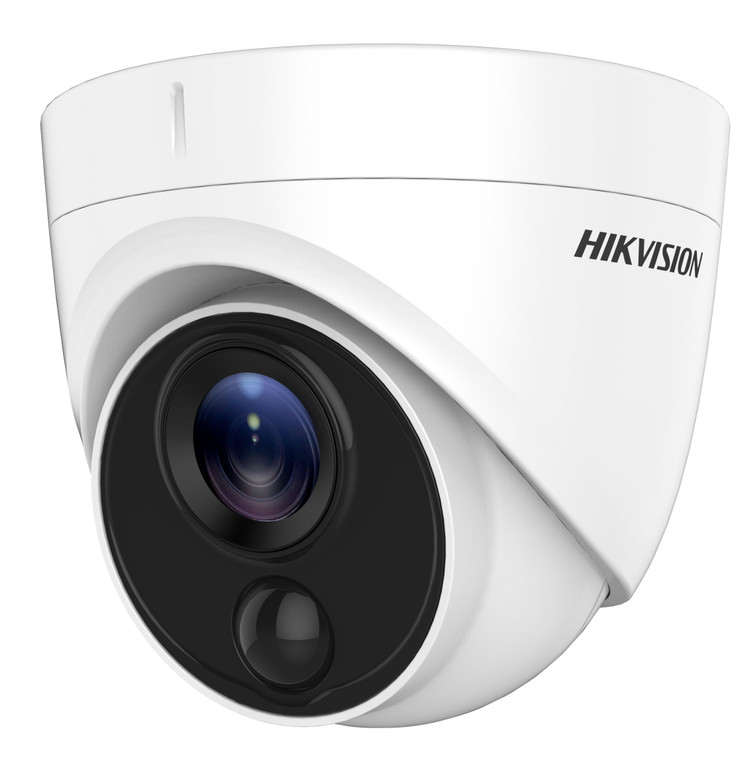

DS-2CE71H0T-PIRL(3.6mm) |
CAMERA |
|
Image Sensor |
5MP Progressive scan CMOS |
Signal System |
PAL/NTSC |
Resolution |
2560 (H) x 1944 (V) |
Frame Rate |
HD-TVI: 5MP@20fps, 4MP@30fps/25fps, 1080p@30fps/25fps |
Min. illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
Lens |
3.6mm fixed lens |
Horizontal Field of View |
80.1° |
Lens Mount |
M12 |
Day & Night |
IR Cut filter |
Visual Alarm |
Strobe light |
Angle Adjustment |
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
MENU |
|
White Light |
Alarm/OFF |
Backlight Compensation |
Yes |
AGC |
Yes |
White Balance |
Auto / Manual |
Day/Night Mode |
Auto/Color/BW (Black and White) |
Language |
English |
Function |
Brightness, Sharpness, Mirror, Saturation, DNR |
INTERFACE |
|
Video Output |
HD-TVI only |
GENERAL |
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
Power Supply |
12 VDC ±25% |
Power Consumption |
Max. 4 W |
Protection Level |
IP67 |
Material |
Enclosure: Plastic Main body: Metal |
IR Range |
Up to 20m |
PIR Range |
Angle: 110º, Range: 11m |
Communication |
Up the coax, HIKVISION-C (TVI output) |
Dimensions |
Ø109.8mm x 89.75mm (Ø4.32” x 3.53”) |
Weight |
Approx. 310g (0.68lbs) |
Dimensions
