Model: BCVM-702WKIT
Door Entry Video Intercom with 7-inch hands-free video monitor and waterproof door camera. The system is expandable up to two door cameras and three video monitors. Also use the IP converter box to connect your video intercom system to your smartphone. From anywhere in the world, you can use your smartphone to see who is at door, talk to the visitor and open the door.
Product Overview
7" Hands-free Video Monitor In house Unit
Hands-free video phone with 7" LCD Display.
Features:
7-inch TFT LCD screen
Video talk with visitor
Door lock release
Supports up to 2 door cameras
Receives call and release door from call from the two door cameras
Monitor the entrance (for first door camera only)
Expandable up to 3 video monitors (combination of 3 devices of monitor and IP converter)
Power supply included
Specifications:
MODEL |
7" Hands-Free Video Monitor |
Power Source |
Power Adapter AC 110 ~240V 50/60Hz (Electrical plug type A) to DC18V |
Mounted type |
Wall surface mounted type |
LDC Size |
7" color LCD |
Wiring |
To Door camera: 2 wires(Polarity) To Video monitor: 2 wires (Polarity) To IP box: 2 wires (Polarity) |
Distance |
Door camera: 70m(2 x 0.5mm^2) |
Dimension |
241(W) x 161(H) x 25 (D) mm |

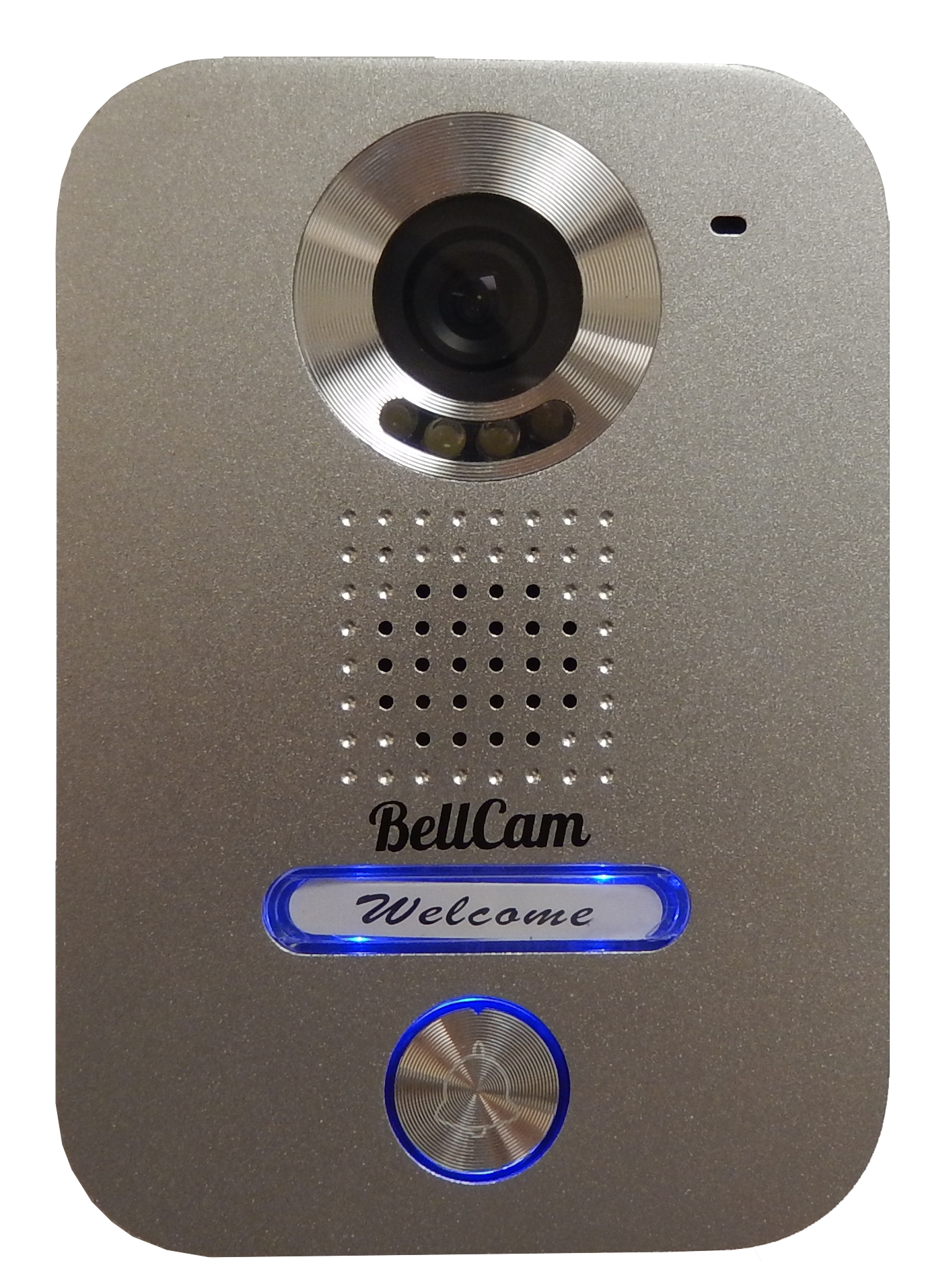

Outdoor Station
Door Camera
MODEL |
2-wire door camera |
Power source |
From monitor |
Wiring |
2 wire with polarity |
Lighting |
Built-in 4 white LED |
Camera angle |
72° |
Distance |
70m(2 x0.5mm^2) |
Dimension(mm) |
91(W)×130(H)×42(D) |
Operation Temp. |
-25ºC ~ 65ºC |
Minimum Illumination |
0.1Lux |
Image Sensor | CCD |

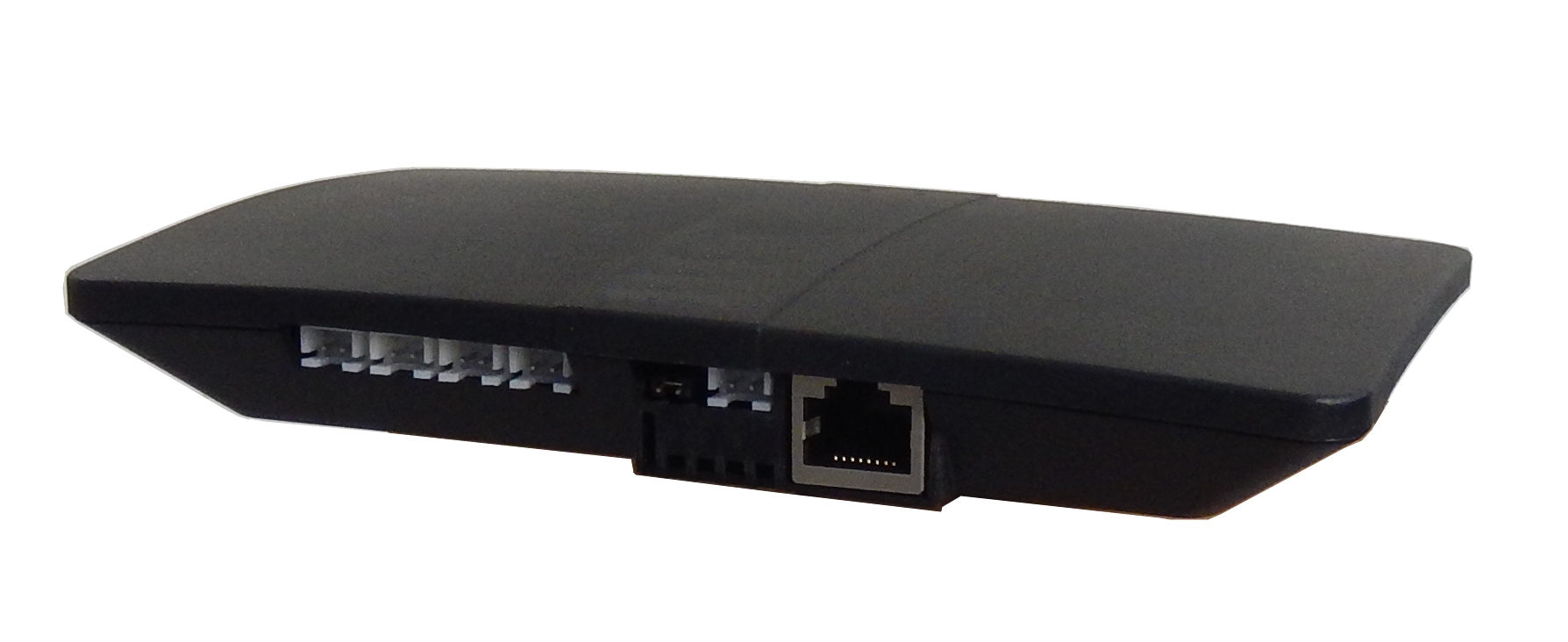

Intercom IP Converter (optional)
The IP converter box converts the wired analog intercom system into a WIFI IP system and allows access to it through your smartphone or tablet.
With your smartphone, you can see who is knocking at your door from anywhere with access to WIFI or cellphone signal using the free app. There are no monthly fees to use the app. With the app you can also release the door lock, take pictures and record video on demand.
Features:
Power Source | AC 110 ~240V 50/60Hz (Electrical plug type A) |
Mounted type | Wall surface mounted type |
Wiring | 2 wires |
Ports | Ethernet RJ45 port |
Dimension | 160 x 100 x 20 mm |
