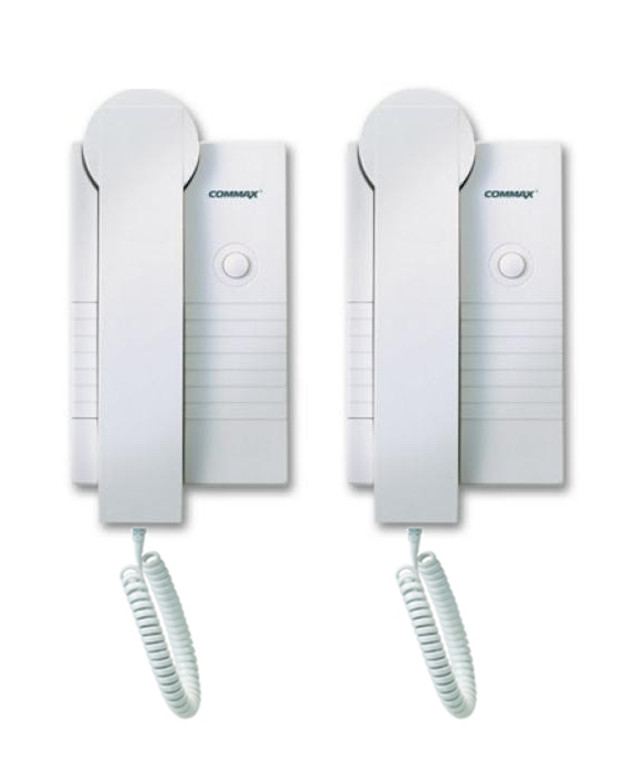

Commax AC110V 1-TO-1 Wired Indoor Intercom TP-1BE/TP-1BS

TP-1BE/TP-1BS
  • TP-1BE/TP-1BS
  • TP-1BE/TP-1BS
  • TP-1BE/TP-1BS
  • Wiring diagram of TP-1BE and TP-1BS
  • TP-1BS slave unit
  • TP-1BE master unit
Price:
$69.00
SKU:
TP-1BE/TP-1BS
Brand:
Weight:
3.00 LBS
Shipping:
$9.99 (Fixed shipping cost)
Quantity:

Product Description



2-WAY 1-to-1 INDOOR INTERCOM SYSTEM
TP-1BE/TP-1BS




Features
  • 1:1 Intercommunication, paging and talking
  • Includes: master unit TP-1BE and slave unit TP-1BS
  • Convenient and flexible installation
  • Applicable to hospitals, guard stations, office environments
  • Tremolo melody
  • Volume switch: select two volume levels
Function
  • Pick up the handset and call the other party's unit by pushing the "Call Button"
  • When you hear the call sound, pick up the handset to talk to caller.
  • End conversation by hanging up the handset.
Product Specifications
  • Master unit power source: AC110V, eletrical plug US type A
  • Slave unit power source: from master unit
  • Power consumption: 35mA (max)
  • Mounting type: Wall surface mounted type
  • Temperature: 0ºC ~ 40ºC (32ºF ~ 104ºF)
  • Wiring: 2 wires
  • Melody: Tremolo
  • Distance: 500m (Ø0.65)
  • Dimension (mm): 105 (W) x 211 (H) x 43 (D)
Overview

  1    Power plug
  2  Handset
  3  Ringer volume control
 4  Call button

Package includes:
  • Master unit
  • Slave unit
  • Wall-mount bracket x 2
  • Instructions x 1
