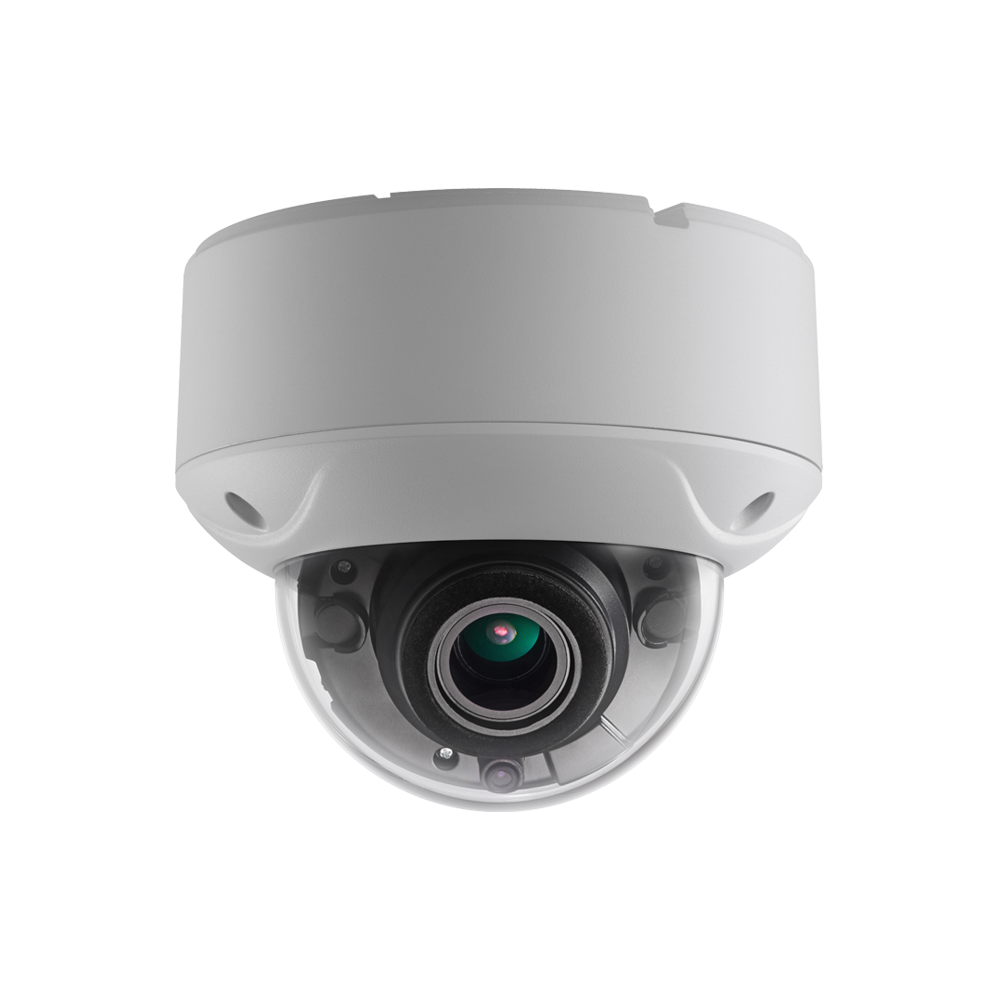

8MP TURBO HD Analog Vandal-proof Motorized Varifocal 2.7-13.5mm Dome Camera

  • 8MP VF Dome Camera, 3840x2160@15fps, 2.7~13.5mm motorized vari‐focal, EXIR, DWDR, IP67, 9V~15V DC
Price:
$139.00
SKU:
ESAC318D-OD4Z
Brand:
Weight:
3.00 LBS
Shipping:
Free Shipping
Quantity:


Product Description

8MP/4K Vandalproof Motorized Varifocal 2.7~13.5 mm DWDR Dome Camera

Equivalent to Hikvision Turbo HD Camera DS-2CE59U1T-AVPIT3ZF

**OEM: Camera and box do not have brand or logo**

Features

  • 8.29 MP high performance CMOS
  • Auto focus
  • 3840 × 2160 resolution
  • 2.7 mm to 13.5 mm motorized vari-focal lens
  • EXIR 2.0, smart IR, up to 60 m IR distance
  • OSD menu, DNR
  • 4-in11 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

Specifications

  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Image Size: 3840 (H) × 2160 (V)
  • Electronic Shutter: PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s
  • Minimum Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Wide Dynamic Range: DWDR, 105 dB
  • S/N Ratio: >62 dB
  • Smart IR: Support
  • IR Distance: Up to 60 m IR distance
  • Focal Length: 2.7 mm to 13.5 mm motorized vari-focal lens
  • Field of view: 108.1° to 45.6°
  • Max. Aperture: F1.2
  • Pan / Tilt / Rotation Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
  • Video Frame Rate
    • TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 2MP@30fps
    • CVI: 8MP@12.5fps, 8MP@15fps
    • AHD: 5MP@20fps CVBS: 960H P/N
  • Day / Night: Auto/Color/BW (Black and White)
  • BLC Mode: Support
  • White Balance: Auto/Manual
  • Digital Noise Reduction: Support
  • Function: Brightness, Sharpness, DNR , Mirror, Smart IR
  • Video Output: 1 HD analog output, switchable TVI/AHD/CVI/CVBS
  • Power Supply: 9.6 VDC to 14.4 VDC
  • Power Consumption: Max. 8.2W
  • Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
  • Storage Temperature: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
  • Ingress Protection: IP67
  • Dimensions: 145.2 mm × 124.1 mm ( 7.1" × 4.9")
  • Weight: Approx. 640 g (1.41lb.)
