Features:
Specifications
Model |
HD4-2DO28 |
Video Output Mode |
4-in-1 switchable: HD-TVI, AHD, HD-CVI, CVBS |
Image Sensor |
1/2.7” 2MP CMOS Sensor |
Image Resolution |
2MP 1080P/960H |
Effective Pixels |
1920 x 1080 |
TV System |
PAL / NTSC |
Electronic Shutter |
1/25s ~ 1/50,000 s, 1/30s ~ 1/60,000s |
S/N Ratio |
≥50 dB |
Scanning System |
Progressive |
Lens |
2.8mm fixed |
Pixels |
3M Pixels |
IR Leds |
14µ x 18 pcs |
Effective IR Distance |
20 meters |
IR power on |
Under 10Lux, CDS auto control |
Day/Night |
Yes |
OSD Menu Language |
Yes |
White Balance |
Auto/ Manual |
Gain Control |
Auto |
Noise Reduction |
DNR |
Picture Adjustment |
Yes |
WDR |
Yes |
OSD Support |
Yes |
UTC (up the coax) |
Yes |
Housing |
Metal |
Ingress Protection Rating |
IP66, weatherproof, indoor/outdoor use |
IR Cut Filter |
Yes |
Operating Temperature |
-10°C ~ 50°C RH95% Max |
Power Source |
DC12V±10%, 550mA |
Dimensions |
Ø94.5 x 76 (H) mm |
Weight |
450 g |

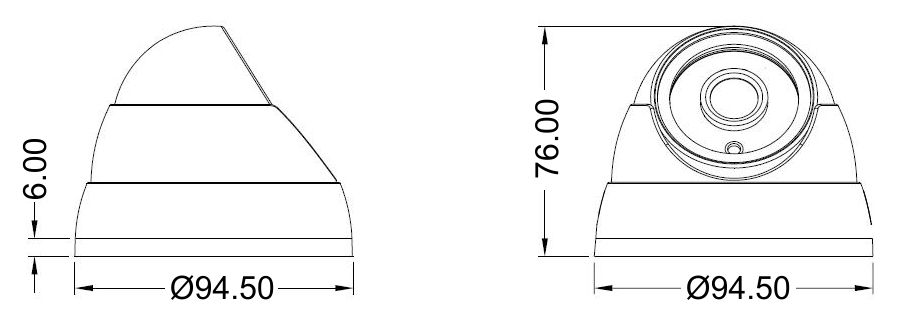

Dimensions (approximate in mm)
