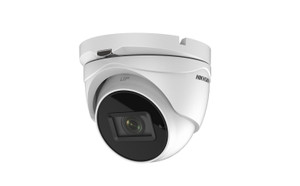

Hikvision 5MP Turbo HD Analog 4-in-1 Outdoor EXIR Dome Camera with Motorized Varifocal Lens 2.7~13.5 mm

Camera

Image Sensor

8.29 megapixel progressive scan CMOS

Resolution

2560 (H) x 1944 (V)

Min. Illumination

Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s

Lens

2.7 mm to 13.5 mm motorized varifocal lens

Horizontal Field of View

95.7° to 29.1º

Lens Mount

M14

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Synchronization

Internal synchronization

Frame Rate

PAL: 5MP@20fps, 4MP@25fps, 1080p@25fps

NTSC: 5MP@20fps, 4MP@30fps, 1080p@30fps

Menu

AGC

Yes

Day/Night Mode

Auto/ Color/ BW (Black and White)

BLC (Backlight Compensation)

Yes

Auto/ Manual

Support

Functions

Brightness, Sharpness DNR, Mirror, Smart IR, HLC

Interface

Video Output

1 HD analog output

Switch Button

TVI/ AHD/ CVI/ CVBS

General

Operating Conditions

-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensation)

Power Supply

12VDC

Power Consumption

Max. 6.3W

Protection Level

IP67

Material

 Metal

IR Range

Up to 40 m

Communication

Up the coax, Protocol: Hikvision-C (TVI output)

Dimensions

134.3 mm x 123.86 mm x 110.24mm (5.29” x 4.88” x 4.34")

Weight

Approx. 580 g (1.28 lbs.)
