Model |

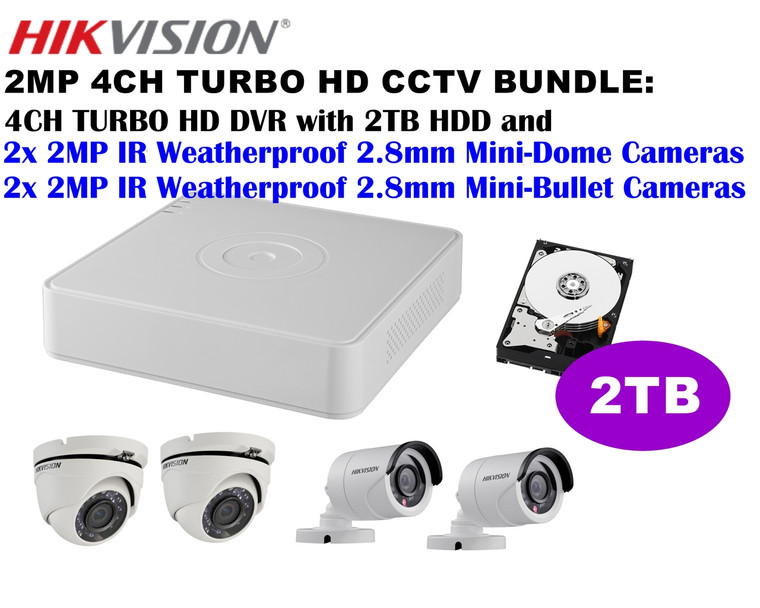

DS-7104HQHI-K1 |
VIDEO / AUDIO INPUT |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Analog Video Input |
4-ch BNC Interface (1.0 Vp-p, 75Ω), supporting coaxitron connection |
HD-TVI Input |
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1 |
AHD Input |
4 MP, 1080p25, 1080p30, 720p25, 720p30 |
HD-CVI Input |
1080p25, 1080p30, 720p25, 720p30 |
CVBS Input |
PAL / NTSC |
IP Video Input |
1-ch Up to 4 MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras |
Audio Compression |
G.711u |
Audio Input/ Two-way Audio Input |
1-ch, RCA (2.0 Vp-p, 1KΩ) |
VIDEO /AUDIO OUTPUT |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI/VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Encoding resolution |
When 1080p Lite mode is not enabled: 4 MP lite/ 3 MP/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF; When 1080p Lite mode is enabled: 4 MP lite/ 3 MP/ 1080p lite/ 720p lite/ WD1/ 4CIF/ VGA/ CIF |
Frame rate |
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/30fps (N) For 3 MP stream access: 3MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF@15fps For 1080p stream access: 1080p@15fps; 720p/ VGA/ WD1/ 4CIF/ CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/ 30fps (N) When 1080p Lite mode enabled: 4 MP lite/ 3 MP@15fps; 1080p lite/ 720p lite/ VGA/ WD1/ 4CIF/ CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
Video bit rate |
32 Kbps to 6 Mbps |
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
Audio bit rate |
64 Kbps |
Dual stream |
Support |
Stream type |
Video, Video & Audio |
Synchronous playback |
4-ch |
NETWORK MANAGEMENT |
|
Remote connections |
32 |
Network protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
HARD DISK |
|
SATA |
1 SATA interface |
Capacity |
Up to 6 TB capacity |
EXTERNAL INTERFACE |
|
Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB interface |
Rear Panel: 2 × USB 2.0 |
GENERAL |
|
Power supply |
12 VDC |
Consumption (without HDD) |
≤ 8 W |
Working temperature |
-10°C to 55°C (14°F to 131°F) |
Working humidity |
10% to 90% |
Dimensions (W × D × H) |
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
Weight (without HDD) |
≤ 1 kg (2.2 lbs) |
Camera |
|
Image Sensor |
2MP CMOS Image Sensor |
Signal System |
NTSC/ PAL |
Effective Pixels |
1920 (H) x 1080 (V) |
Minimum Illumination |
0.01 Lux @ F1.2, AGC ON, 0 Lux with IR |
Shutter time |
1/25 (1/30) s to 1/50,000 s |
Lens |
2.8 mm, Field of View: 103° |
Lens Mount |
M12 |
Day & Night |
ICR |
Angle Adjustment |
Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
Synchronization |
Internal synchronization |
Video Frame Rate |
1080p @ 25 fps / 1080p @ 30 fps |
HD Video Output |
1 Analog HD output |
S/N Ratio |
> 62dB |
General |
|
Operating Conditions |
-40°C - 60°C (-40°F - 140°F), Humidity 90% or less (non-condensing) |
Power supply |
12 VDC ± 15% |
Power Consumption |
Max. 4 W |
Protection Level |
IP66 |
IR Range |
Up to 20m |
Dimensions |
Ø70 x 154.5 mm (Ø2.76” x 6.08”) |
Weight |
400 g (0.88 lbs) |
Camera |
|
Image Sensor |
2MP CMOS Image Sensor |
Signal System |
NTSC/ PAL |
Effective Pixels |
1920 (H) x 1080 (V) |
Minimum Illumination |
0.1 Lux @ F1.2, AGC ON, 0 Lux with IR |
Shutter time |
1/25 (1/30) s to 1/50,000 s |
Lens |
2.8 mm, Field of View: 103° |
Lens Mount |
M12 |
Day & Night |
ICR |
Angle Adjustment |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
Synchronization |
Internal synchronization |
Video Frame Rate |
1080p @ 25 fps / 1080p @ 30 fps |
HD Video Output |
1 Analog HD output |
S/N Ratio |
> 62dB |
General |
|
Operating Conditions |
-40°C - 60°C (-40°F - 140°F), Humidity 90% or less (non-condensing) |
Power supply |
12 VDC ± 15% |
Power Consumption |
Max. 4 W |
Protection Level |
IP66 |
IR Range |
Up to 20m |
Dimensions |
Ø89.47 x 67.6 mm (Ø3.52” x 2.7”) |
Weight |
340 g (0.75 lbs) |
