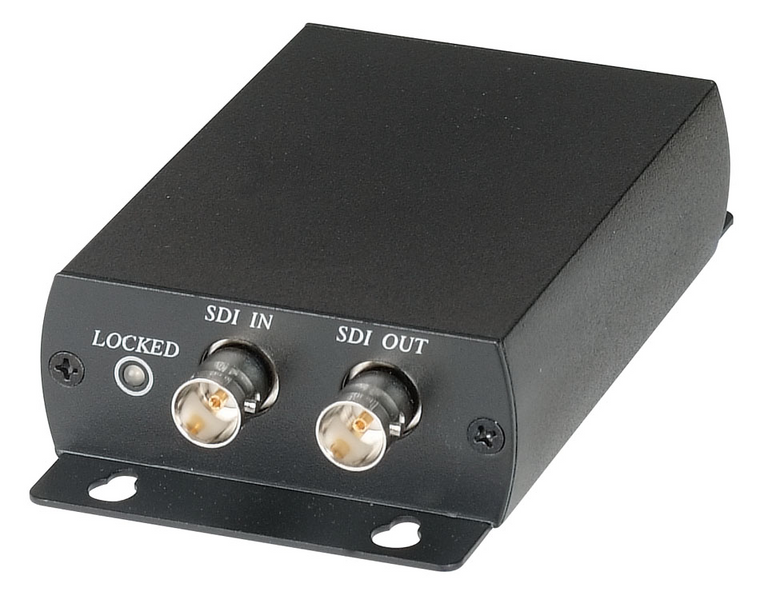

HD-SDI to HDMI Converter with Loop Out

Price:

$199.95

SKU:

MS-SDI01

Weight:

2.00 LBS

Shipping:

Calculated at checkout

Product Description

Product ID: SDI01

HD-SDI to HDMI Converter with loop out

SDI01 converts from 3G-SDI, HD-SDI and SD-SDI to HDMI which enabling users to use cost effective HDMI display to SDI based equipment. It also provides 2 channel stereo audio. The application could be using for HD CCTV HD-SDI camera and broadcast video monitoring.

Features:

To send 3G/HD/SDI signal convert to HDMI.
Support SDI (SMTP 259M), HD-SDI (SMTP 292M), 3G-SDI (SMTP 424M).
Support video signal NTSC, PAL, 720p, 1080i, 1080p.
Support 2 Channel stereo audio.
Built in Equalizer to increase the working distance and signal reliability.
SDI Loop Out with Retiming function to have the best output quality.

ITEM NO.	SDI01
SDI Standard / Protocol	SDI (SMTP 259M), HD-SDI (SMTP 292M), 3G-SDI (SMTP 424M)
Resolution	NTSC (480i), PAL (576i), 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/29.97/30/50/59.94/60Hz
SDI Input Connector	BNC 75Ω
SDI Output Connector	BNC 75Ω
HDMI Output Connector	HDMI Type A
Power Consumption	750mA (Max)
Power Supply	Switching DC5V 1AMP
Temperature	Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
Dimensions	67 x 110 x 27 (mm)
Weight	185 g

Application View:
