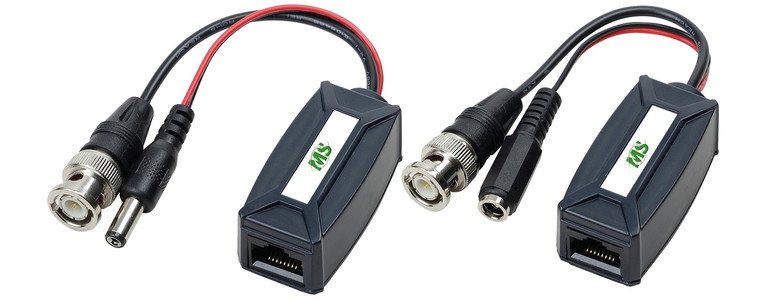

TTP111HDP-LK VIDEO & POWER BALUN FOR HD-CVI, HD-TVI, and AHD HD - Set of Transmitter and Receiver

  • Image 1
Price:
$19.95
Brand:
Weight:
0.50 LBS
Shipping:
$3.99 (Fixed shipping cost)
Quantity:


Product Description

HD-CVI/TVI/AHD Video & Power Transceiver. 2Pcs/Set

Model No. TTP111HDP-LK




FEATURES:

  • Transmit HD-TVI/AHD/HDCVI video and power (3 pairs) over one CAT5e cable.
  • Include 2 units: 1 x RJ45 to BNC with DC power plug, 1 x RJ45 to BNC with DC power jack.
  • Eliminate the use of coaxial and power cable.
  • Fast, easy installation, save time and money.
  • Substantial saving on the cost of the cable itself.
  • Built in ESD, EFT(impulse noise) and transient protection.



SPECIFICATIONS:

ITEM NO.

MS-TTP111HDP-L

MS-TTP111HDPJ-L

Video Input / Output Terminals

BNC x 1  (1 Vp-p75 Ohm)

RJ45 x 1 ( 100 Ohm )

Power

DC-PLUG

DC-JACK

Bandwidth

50Hz ~ 60MHz ( -3dB )

Transmission Distance

HDCVI/AHD: 300M, HD-TVI: 250M

ESD protection

30 KV(Air)15 KV (Contact) ; IEC 61000-4-2  compliant

EFT protection

40A(5/50ns) ; IEC 61000-4-4  compliant

Lightning protection

2A (8/20μs) ; IEC 61000-4-5  compliant

Surge Protection Attack Time

< 1 nS

Environmental Specifications

Operation: 0 to 55ºC, Storage: -20 to 85 ºC, Humidity: up to 95%

Dimension (mm)

69  x  25  x  20.7  + 120mm pigtail cable

Weight (g)

45



INSTALLATION VIEW:







Transmission Distance Chart:

 Video Transmission Distance (Max):

Cable

HD-TVI (M)

AHD (M)

HDCVI (M)

CAT5e

250

300

300



Power Transmission Distance:

 Voltage Drop According to Cable Length (24AWG):

Voltage

DC12V

Distance

50M

100M

300M

Camera Power Consumption

3 PAIRS

 3PAIR

3 PAIR

50mA

11.8

11.5

10.8

100mA

11.5

10.9

9.6

150mA

11.2

10.4

8.4

200mA

11

9.9

7.2

250mA

10.7

9.4

5.9

300mA

10.4

8.9

4.7

350mA

10.2

8.4

3.5

400mA

9.9

7.9

2.3

450mA

9.6

7.5

1.1

500mA

9.3

7

1.2

1A

6.8

2.7

X

1.5A

4.1

 X

X





Voltage

DC24V

Distance

50M

100M

300M

Camera Power Consumption

3 PAIR

3 PAIR

3 PAIR

50mA

23.6

23.3

22.8

100mA

23.3

22.7

21.6

150mA

23

22.3

20.4

200mA

22.8

21.8

19.1

250mA

22.5

21.3

17.9

300mA

22.2

20.8

16.7

350mA

21.9

20.3

15.5

400mA

21.7

19.8

14.2

450mA

21.4

19.4

13

500mA

21.1

18.9

11.8

1Amp

18.7

14.7

0.8

1.5Amp

16.1

10

X
