Product Description

HD-CVI, HD-TVI, and AHD Video Balun with Pigtail

Model No. TTP111HDL


FEATURES:

  • Identical to MS-TTP111HD, but with 10cm mini coax cable for easy mounting behind DVR
  • To send HD-CVI, HD-TVI and AHD signal 720p at 300 meters, 1080p at 200m over UTP cable.
  • Eliminate the use of coaxial cable.
  • Passive type, no power required.
  • Compact size for easy installation at camera side



SPECIFICATIONS:

ITEM NO.

MS-TTP111HDL

Video Input / Output Terminals

BNC MALE (75Ω,1V p-p)

Video Input / Output Terminals

TERMINAL BLOCK

Bandwidth

50Hz ~ 47MHz (-3dB)

Transmission Distance

Analog: B/W: 600 meters, Color: 300 meters

AHD / HD-TVI / HD-CVI: 720p 300M, 1080p 200M (Max)

Temperature

Operation: 0 to 55ºC, Storage: -20 to 85℃, Humidity: up to 95%

Dimension (mm)

 14.5 × 15.5 × 145, include 100mm mini coax cable

Weight (g)

25

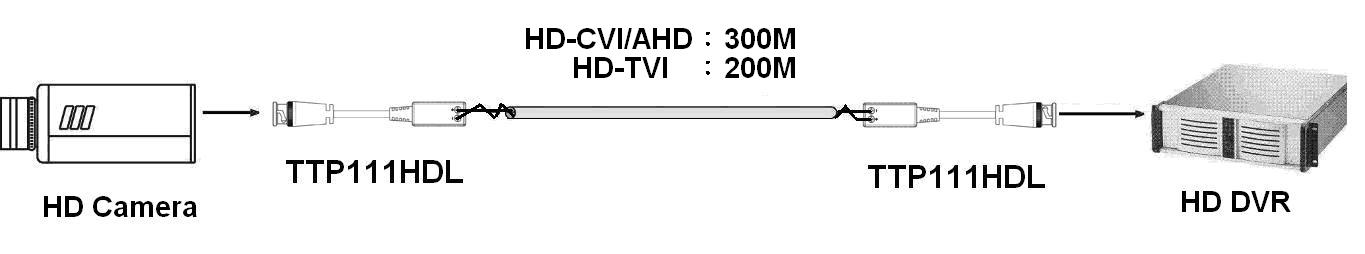

INSTALLATION VIEW:

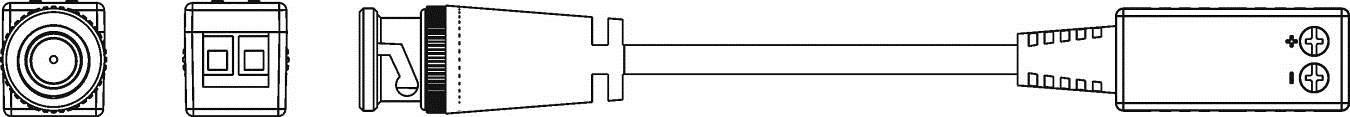

PANEL VIEW:
