TTP111HD HD-TVI, AHD & HD-CVI HD Video Balun - Pack of 10

  • Image 1
  • Image 2
Price:
$57.95
Weight:
0.50 LBS
Shipping:
$3.99 (Fixed shipping cost)
Quantity:


Product Description

HD-CVI, HD-TVI and AHD Video Balun

Model No. TTP111HD

10 Pcs/Pack






FEATURES:

  • To send HD-CVI, HD-TVI and AHD signal 720p at 300 meters, 1080p at 200m over UTP cable.
  • Eliminate the use of coaxial cable.
  • Passive type, no power required.
  • Compact size for easy installation at camera side
  • Blister card package of 10 pieces

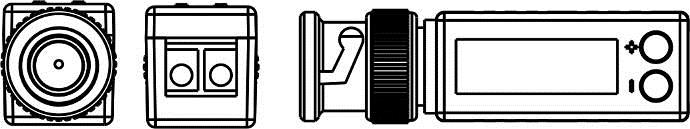

PANEL VIEW:

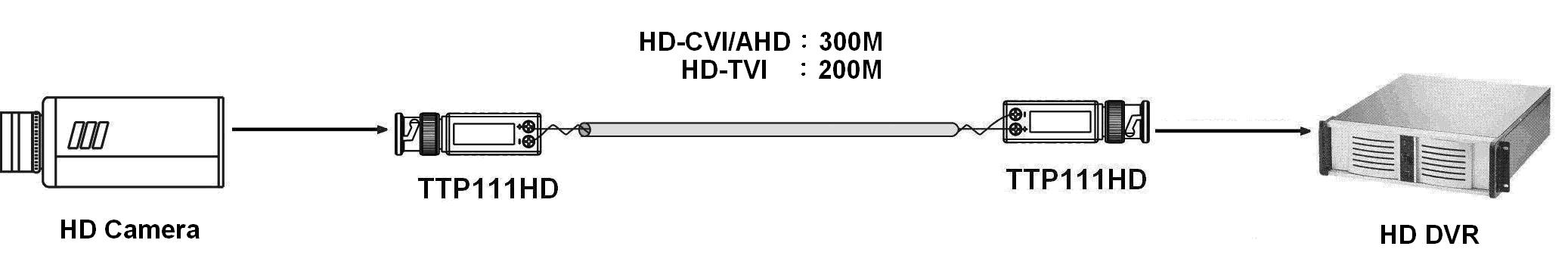

INSTALLATION DIAGRAM:








SPECIFICATIONS:

 ITEM NO.

MS-TTP111HD

Video Input (BNC Connector)

1

Video Input

1V p-p, 75 Ohms

Cable

Twisted Pair CAT 5

Bandwidth

50Hz ~ 60MHz ( -3dB )

Transmission Distance

HD-CVI/AHD: 300M, HD-TVI: 250M

RJ-45 Output

Terminal

Power

X

ESD protection

30 KV(Air)15 KV (Contact) ; IEC 61000-4-2  compliant

EFT protection

40A(5/50ns) ; IEC 61000-4-4  compliant

Lightning protection

2A (8/20μs) ; IEC 61000-4-5  compliant

Surge Protection Attack Time

< 1 nS

Environmental Specifications

Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimensions W x H x D (mm)

14.5 × 49.5 × 15.5

Weight (g)

18
