Product Description

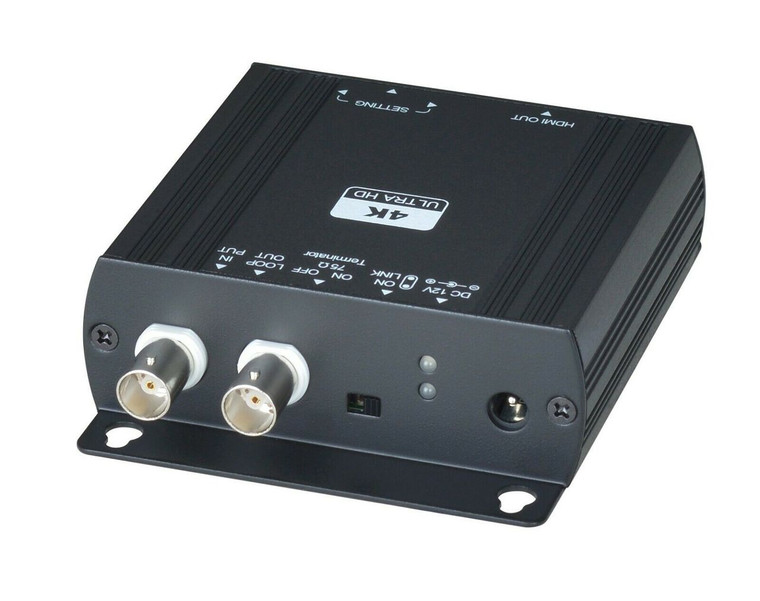

UHD CCTV Video to HDMI Converter with UHD Video Loop-Out for 4K(8MP)/5MP/4MP/2MP HD-TVI & AHD, 4MP/2MP HD-CVI cameras



Model: AD001UHD4

Features

  • Converts HD-TVI, AHD, and HD-CVI HD CCTV video signal to HDMI signal
  • BNC input supports:
    • HD-TVI: 1080p@25/30fps, 4MP@25/30fps, 5MP@12.5/20fps, 4K(8MP)@12.5/15fps
    • AHD: 1080p@25/30fps, 4MP@15/25/30fps, 5MP@20fps, 4K(8MP)@15fps
    • HD-CVI: 1080p@25/30fps, 4MP@25/30 fps
  • HDMI output up to 4K@30Hz
  • Supports up and down scaling function
  • HD  Loop Out support video and data control (up the coax)
  • Built-in OSD for easy operation

Model

AD001UHD4

Video Input

Resolution

HD-TVI

AHD

HD-CVI

4K (8 MP) 3840 x 2160p

12.5/15 fps

15 fps

X

5 MP 2592 x 1944p

12.5 / 20 fps

20 fps

X

4 MP 2560 x 1440 p

25/30 fps

15/25/30 fps

25/30 fps

2 MP 1920 x 1080p

25/30 fps

25/30 fps

25/30 fps

HDMI Video Output

4K @ 30HZ, 1080p@60Hz

Input Connector

BNC

Output Connector

HDMI Type-A, BNC

75Ω Terminator

75Ω Terminator x1

Power Supply

12V 500mA

Power Consumption

300mA

Temperature

Operation: 0⁰C to 70⁰C; Storage: -40⁰C to 125⁰C; Humidity: up to 90%

Dimension (mm)

88 mm x 110.5 mm x 30 mm (W x D x H)

Weight (g)

236 g

Connection Diagram

Connecting diagram one converter to one monitor

Connecting diagram several monitors
