4 Channel HD-CVI/TVI/AHD HD Video Transceiver (Balun) TTP414HD

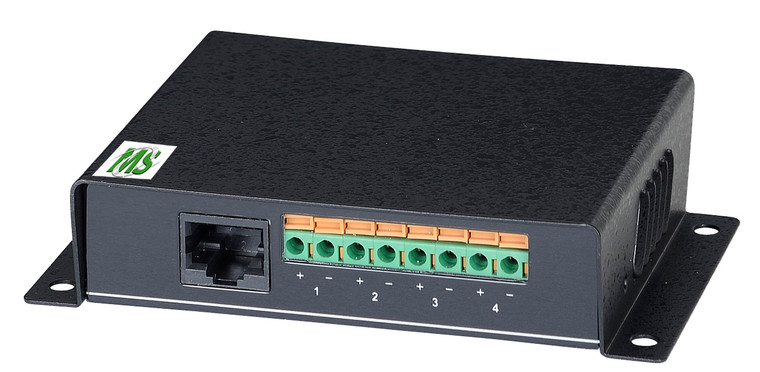

Image 1
  • Image 1
  • Image 2
Price:
$39.00
Weight:
1.00 LBS
Shipping:
$3.99 (Fixed shipping cost)
Quantity:

Product Description

4 Channel HD-CVI/TVI/AHD HD Video Transceiver (Balun)

MODEL No. TTP414HD


FEATURES:

  • 4 Channel UTP Video Transceiver, send 4 HD camera signal over one CAT5e/CAT6 cable.

  • To send HD-CVI, AHD signal up to 300M over UTP cable.

  • To send HD-TVI signal up to 200M over UTP cable.

  •  Passive, No power required.

  • Eliminate Coaxial Cable.

  • Choice of RJ45 or push pin terminal inputs/outputs.

  • Works with Active Transmitter MS-TTA111HDT, MS-TTA111TVIT for extra long distance transmission.

  • Built in ESD, EFT (impulse noise) and transient protection.

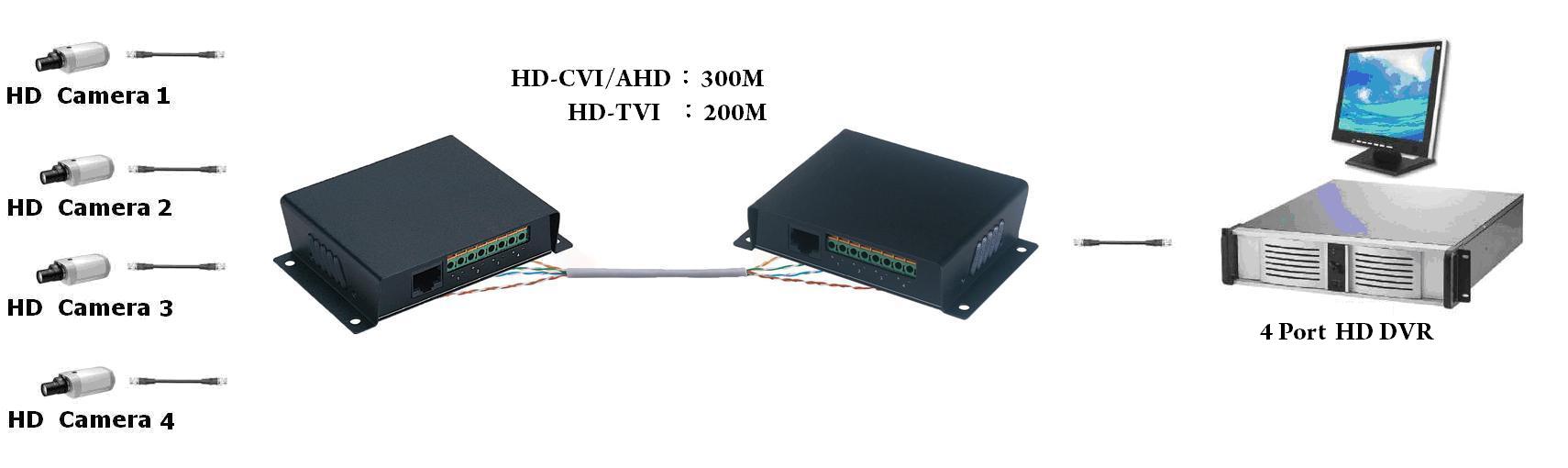

INSTALLATION DIAGRAM:

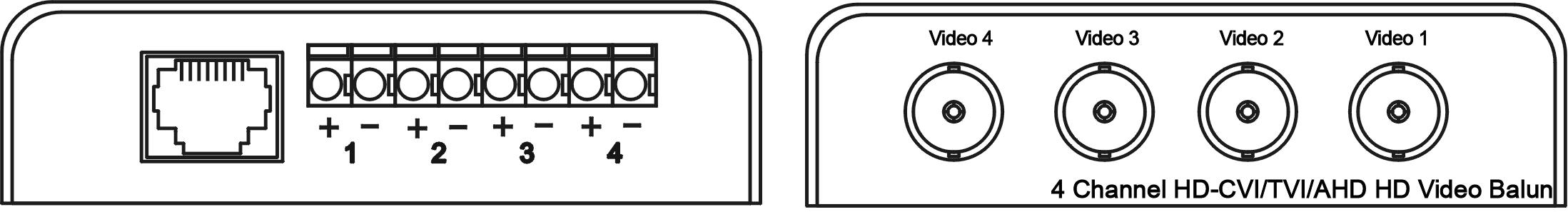

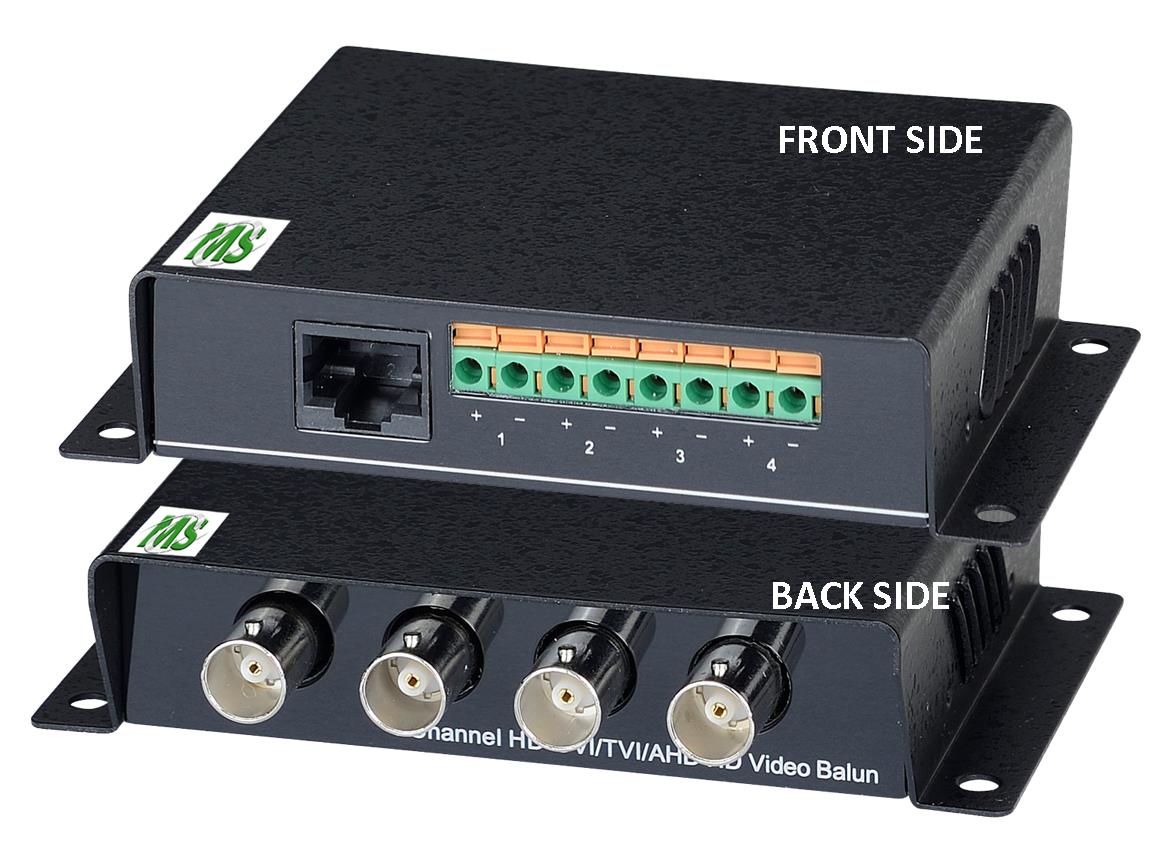

PANEL VIEW:






SPECIFICATIONS:

ITEM NO.

MS-TTP414HD

Video Input /Output

BNC x 4  (1 Vp-p，75 Ohm)

RJ45 Output

8 Pin terminal (100 Ohm ) /RJ45

Cable

CAT5e/CAT6 UTP

Bandwidth

50Hz ~ 60MHz ( -3dB )

Transmission Distance

Analog CCTV: 300 meters

HD-CVI/AHD: 300M, HD-TVI: 200M

Power

X

ESD protection

30 KV(Air)，15 KV (Contact) ; IEC 61000-4-2  compliant

EFT protection

40A(5/50ns) ; IEC 61000-4-4  compliant

Lightning protection

2A (8/20μs) ; IEC 61000-4-5  compliant

Surge Protection Attack Time

< 1 nS

Environmental Specifications

Operation: 0 to 55ºC, Storage: -20 to 85 ºC, Humidity: up to 95%

Dimensions    W x H x D mm

110 x 80.6 x 26.3

Weight (g)

195
